The basic pattern of electrical activity across the heart.

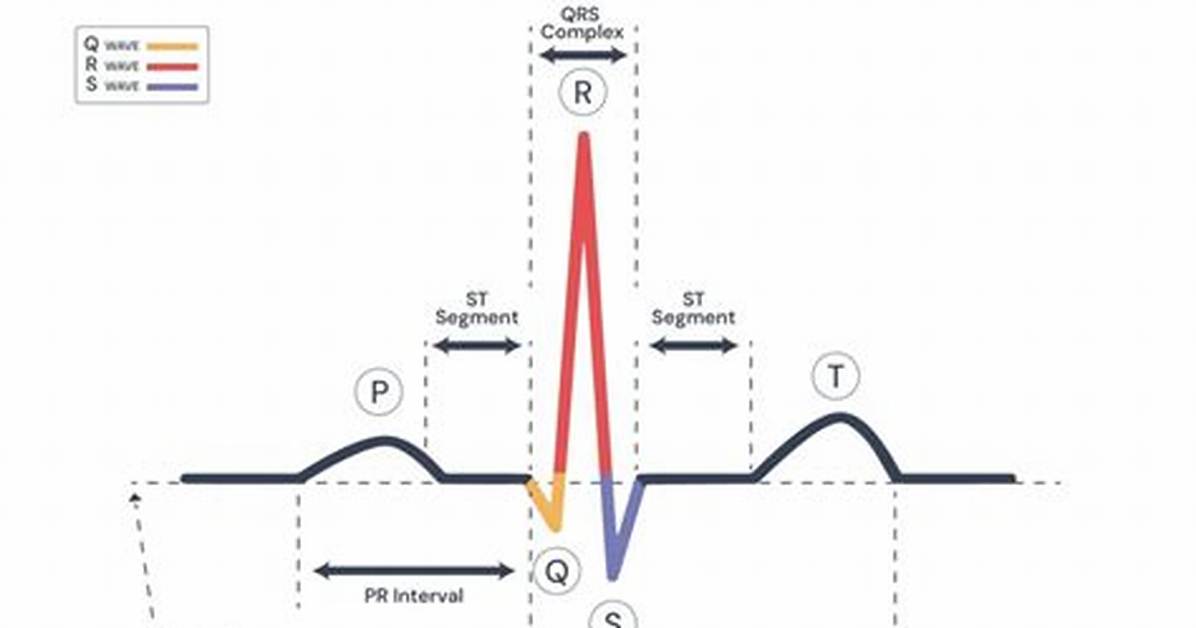

P wave. The P wave is a small deflection wave that represents atrial depolarization.PR interval. QRS wave complex. ST segment. T wave. Wave direction and size. Interpreting the ECG. Rate.
What are the 3 types of ECG?
Details of the three types of ECG leads can be found by clicking on the following links:
Limb Leads (Bipolar)Augmented Limb Leads (Unipolar)Chest Leads (Unipolar)
What are normal ECG component results?
Normal range 120 – 200 ms (3 – 5 small squares on ECG paper). QRS duration (measured from first deflection of QRS complex to end of QRS complex at isoelectric line). Normal range up to 120 ms (3 small squares on ECG paper).
What are the major components of the ECG in the time domain?
In the time domain, these features are heartbeat interval, amplitude parameters (QRS, ST), duration parameters (QRS, QT, and PR), and combined parameters (Q/R ratio, S/R ratio) [3], [4].
What is aVR aVL aVF in ECG?
aVR means augmented Vector Right; the positive electrode is on the right shoulder. aVL means augmented Vector Left; the positive electrode is on the left shoulder. aVF means augmented Vector Foot; the positive electrode is on the foot.
What is the 8 step method?
What is the 8 Step Problem Solving Method? This problem-solving method helps teams identify and solve problems in a clear and structured way, ensuring that there is consistency within an organization. This process is an expansion of the Plan, Do, Check, and Act (PDCA) cycle.
What are the 12 leads of ECG?
The standard EKG leads are denoted as lead I, II, III, aVF, aVR, aVL, V1, V2, V3, V4, V5, V6. Leads I, II, III, aVR, aVL, aVF are denoted the limb leads while the V1, V2, V3, V4, V5, and V6 are precordial leads.
What are ECG artifacts?
Electrocardiographic artifacts are defined as electrocardiographic alterations, not related to cardiac electrical activity. As a result of artifacts, the components of the electrocardiogram (ECG) such as the baseline and waves can be distorted. Motion artifacts are due to shaking with rhythmic movement.
What are electrodes in ECG?
Electrodes (small, plastic patches that stick to the skin) are placed at certain spots on the chest, arms, and legs. The electrodes are connected to an ECG machine by lead wires. The electrical activity of the heart is then measured, interpreted, and printed out.
What is normal PR?
The normal PR interval is 0.12 to 0.20 seconds, or 120 to 200 milliseconds.
What is normal QTc?
Normal QTc interval is 350–450 ms in males and 360–460 ms in females. QTd is the difference between the longest and shortest QT interval on standard ECG.
What is abnormal ECG report?
An abnormal ECG can mean many things. Sometimes an ECG abnormality is a normal variation of a heart’s rhythm, which does not affect your health. Other times, an abnormal ECG can signal a medical emergency, such as a myocardial infarction /heart attack or a dangerous arrhythmia.
What are ECG electrodes made of?
These electrodes, which are cheap and easily available on the market, are composed of a Ag/AgCl electrode surrounded by a conductive gel, whose resistivity is about 100 Ω·m. The gel is surrounded by an adhesive material (Fig. 16.5), which is used to fix the electrodes.
Which of the following components of an ECG represents ventricular repolarization?
The T wave represents ventricular repolarization. Generally, the T wave exhibits a positive deflection.
Which filter is used in ECG?
The high-pass filter was applied to the ECG signal to eliminate noise with a cutoff frequency in the 0.01 Hz to 0.05 Hz. The FIR filter requires dedicated computations. Therefore, applying the FIR high-pass filter would not be appropriate. Therefore, we only use the IIR high-pass filter.
What is V3 in ECG?
V3, V4 = septum. V5, V6 = L side of the heart. Lead I = L side of the heart. Lead II = inferior territory.
What is lead AVL?
AVL is on the left wrist or shoulder and looks at the upper left side of the heart. Lead l travels towards AVL creating a second high lateral lead. AVf is on the left ankle or left lower abdomen and looks at the bottom, or inferior wall, of the heart. Lead ll travels from AVr towards AVf to become a 2nd inferior lead.
Are leads 1 and AVL contiguous?
Since Leads 1, aVL, V5 and V6 all view the lateral wall of the left ventricle they are considered contiguous. that placement they “look through” the right ventricle and see the septal wall.
