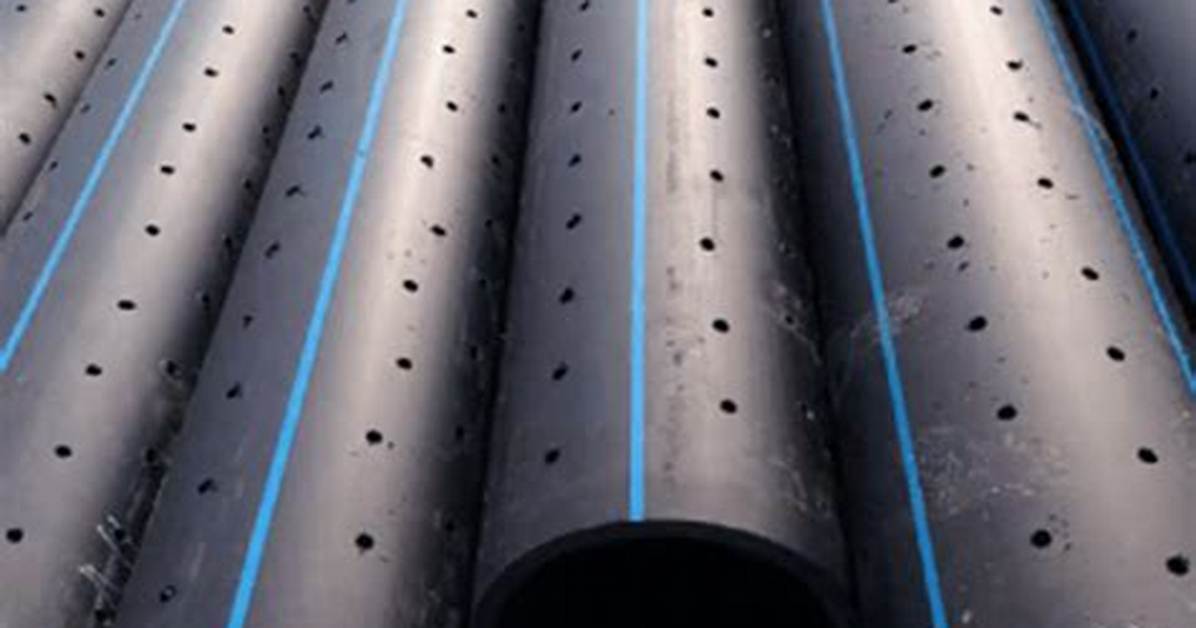

Perforated land drain is used to collect water through the small holes located around the pipe; these holes allow water to seep from the ground into the pipe and be carried away or to percolate back into the soil at a practical rate.
When should you use a perforated pipe?
Perforated drain pipes are most commonly used to move rainwater away from the house so that it can drain elsewhere. Commonly situated near the base of your home’s foundations, perforated drain pipes help provide optimal drainage for your property so that the likelihood of standing groundwater is significantly reduced.
Do perforated pipe holes up or down?
If you’re installing a half-perforated pipe, such as half perforated twinwall, this is where the problem comes into question; whether the perforations are best facing upwards or downwards? Contrary to popular opinion, the most effective method is to have the holes facing down.
What is the difference between solid and perforated pipe?
In general terms, whether using corrugated or sewer and drain pipe, perforated pipe is used for subsurface drainage and solid pipe is used to convey water from surface and/or subsurface drainage systems.
How deep should a perforated pipe be?
Installing a Perforated Drain Pipe. 1. Dig a trench that is about twice the width of the drainage pipe. In addition, make sure that you dig at least two-feet deep.
Do I need gravel for solid drain pipe?
In this system, the pipe is solid, and not perforated, so there’s no need to provide gravel for drainage along the length of the drainpipe. One advantage of a smooth-wall pipe is that it will drain water quickly, and if it gets clogged, you can use a drain snake to clean it out.
Do you glue perforated drain pipe?
With the majority of holes facing down, place your sections of perforated sewer drain pipe where they’ll be installed. Using PVC primer and glue, glue the individual sections together. Use a level to make sure the pipe is in line, and then attach it to the non-perforated drain pipe on the tank.
Which pipe is best for drainage?
Polyvinyl Chloride pipes are the most commonly used pipes for any drainage project. Due to the material’s malleable properties, PVC pipes can come in almost any size. These types of pipes are great for drainage situations where the water and environment exert a great deal of pressure and weight.
How far apart are the holes in perforated pipe?
Perforations shall be evenly spaced along each row such that the center-to-center distance between perforations is not less than eight times the perforation diameter. Perforations may appear at the ends of short and random lengths. The minimum perforation opening per foot of pipe shall be as shown in table 547-1.
How big drainage pipe do I need?
Using either 3″, 4″ or 6″ drainage pipe is recommended on most residential and light commercial projects as these pipe sizes and applicable fittings are readily available and easy to install.
Does a French drain need an outlet?
A properly designed French drain system does not require an outlet. The water will simply soak into the soil as it flows along the perforated pipe. In fact, a French drain doesn’t require an inlet on just one end either. You can construct the drain to accept water along its length, and disperse it underground.
Is PVC or corrugated pipe better for drainage?
There is a reason all plumbing you might find in a home or business is smooth-walled, whether it’s ABS, cast iron or PVC. So, for preventing clogs and keeping your drain water flowing long term, pvc is the winner over corrugated pipe.
Can I use perforated pipe for downspout drainage?
Downspout run-off
Or you can run it through a perforated pipe after it gets away from the house to leach into the ground. Place an downspout adapter on the end of the downspout, and run non-perforated pipe to the disposal area.
How much slope does a landscape drain pipe need?
For efficient drainage, paved surfaces should have a minimum 1-percent slope. Turf or landscaped areas should have a minimum slope of 2 percent.
How do you drain water away from a house?
How To Divert Water From The Home
Clean Your Gutters. This task is both simple and free. Extend Your Downspouts. Create A Rain Garden. Install A Rain Barrel. Seal The Driveway. Install A French Drain. Improve The Grading. Install A Sump Pump.
How far away from foundation should a French drain be?
We recommend installing the french drains between 2 and 5 feet away from the foundation. There are a few variables that impact the exact distance to dig the new drain lines to carry water away from your home. Finding the right distance: Check where water is pooling naturally during heavy rains.
