A Fusible link is a short, low-voltage wire that acts as a fuse in a vehicle’s wiring harness. Fusible links provide circuit protection in the wiring of a vehicle in the case of a short circuit or voltage spike. These insulated wires may be used in applications in which an automotive fuse is unsuitable.
What is a fuse link located?
These links are actually strands of wire wrapped in a fireproof covering, and are thinner than the wiring harnesses they’re connected to. They are placed in-line between delicate harnesses and large sources of electrical current in your car—between the battery and alternator, for example.
What is the difference between fuse and fuse link?
The construction and function of fusible links and fuse elements are similar to that of a fuse. The main difference is that the fusible link and fuse element are used to protect higher amperage electrical circuits, generally circuits 30 amps or more.
What is HRC fuse link?

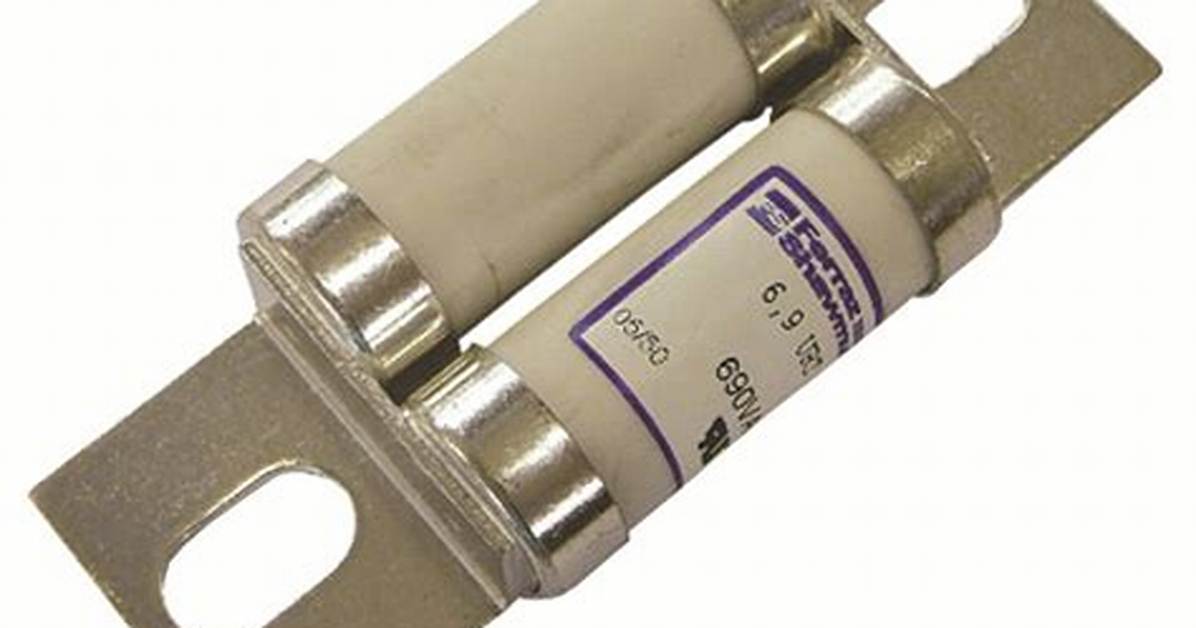

C&S HRC fuse-links have been developed & designed to meet the requirements of modern industrial installations & available in breaking capacity which are sufficient enough to meet the highest short-circuit levels. Selected HRC Fuse Links should have current rating not less than the normal full load current of circuit.
What are the types of fuse?
Different Types of Fuses – Constriction, Working & Characteristics
DC Fuses.AC Fuses.Cartridge Fuses.D – Type Cartridge Fuse.HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.High Voltage Fuses.Automotive, Blade Type & Bolted Type Fuses.SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.
How do I know if my fusible link is blown?
To determine if the fusible link has been blown , one test lead of your ohmmeter should be on the positive terminal of the battery and the other test lead should be on the end of the fusible link going to the circuit it protects.
Can I replace a fusible link with a fuse?
It is difficult to replace fusible links with fuses. Fusible links are compact and handle a lot of current before they blow. To replace the fusible links with fuses you will have to use mega fuses, the smallest will most likely be about 50 amps. And this will take up a lot of room, and be more connections to go bad.
What Colour is a 5 amp fuse?
5 Amp fuses Black in colour, for appliances up to 1000 watts at 220-240 AC.
What is the difference between ATM and ATC fuses?
An ATM fuse is considered to be a mini fuse and it came out in the early 1990s. The only difference is it is smaller than an ATC fuse in actual size. It generally cannot be used in a fuse block that is made for an ATC fuse, as it will not fit in properly.
What are the disadvantages of HRC fuse?
Disadvantages of HRC fuses :
Heat produced by the arc may affect the associated switches.They have to be replaced after each operation.
What is the advantage of HRC fuse over Rewirable fuse?
Q1. What is the advantage of HRC fuses over Rewirable fuses? c. No ageing effect.
Where are HRC fuses used?
Applications of HRC fuse
For backup protection of MCBs. For the protection of motor circuits in which operational short-term overloads and short-circuits occur. Short circuit protection for switching devices such as contactors and circuit-breakers.
How is fuse connected in an electric circuit?
Fuses are always connected in series with the component(s) to be protected from overcurrent, so that when the fuse blows (opens) it will open the entire circuit and stop current through the component(s).
What is fuse short answer?
A fuse is a safety device in an electric plug or circuit. It contains a piece of wire which melts when there is a fault so that the flow of electricity stops.
