In other words, the total magnification of a microscope is understood as the magnification of the objective lens multiplied by that of the optical lens.
What is the formula for total magnification?
To figure the total magnification of an image that you are viewing through the microscope is really quite simple. To get the total magnification take the power of the objective (4X, 10X, 40x) and multiply by the power of the eyepiece, usually 10X.
What is total magnification example?
A microscope’s total magnification is a combination of the eyepieces and the objective lens. For example, a biological microscope with 10x eyepieces and a 40x objective has 400x magnification.
What is total magnification quizlet?
Total Magnification. Equal to the power of the ocular lens multiplied by the power of the objective lens being used magnifies 45x, total magnification is 450x (10 x 45).
How is total magnification computed quizlet?
The total magnification is calculated by MULTIPLYING the ocular lens magnification and the objective lens magnification.
How do you calculate the total magnification of two lenses?
To calculate total magnification, find the magnification of both the eyepiece and the objective lenses. The common ocular magnifies ten times, marked as 10x. The standard objective lenses magnify 4x, 10x and 40x. If the microscope has a fourth objective lens, the magnification will most likely be 100x.
What is the total magnification of a compound microscope with 10x ocular and 40x objective lens?
Therefore, a 10x eyepiece used with a 40X objective lens, will produce a magnification of 400X.
What is the total magnification of the ocular lens is 10x and the objective lens is 100x?
The total magnification is multiplication, so the total is ocular multiplied by objective. So here The ocular is 10 and the objective is 100. So it’s 10 times 100 which is 1000. So the total magnification Is 1000 times.

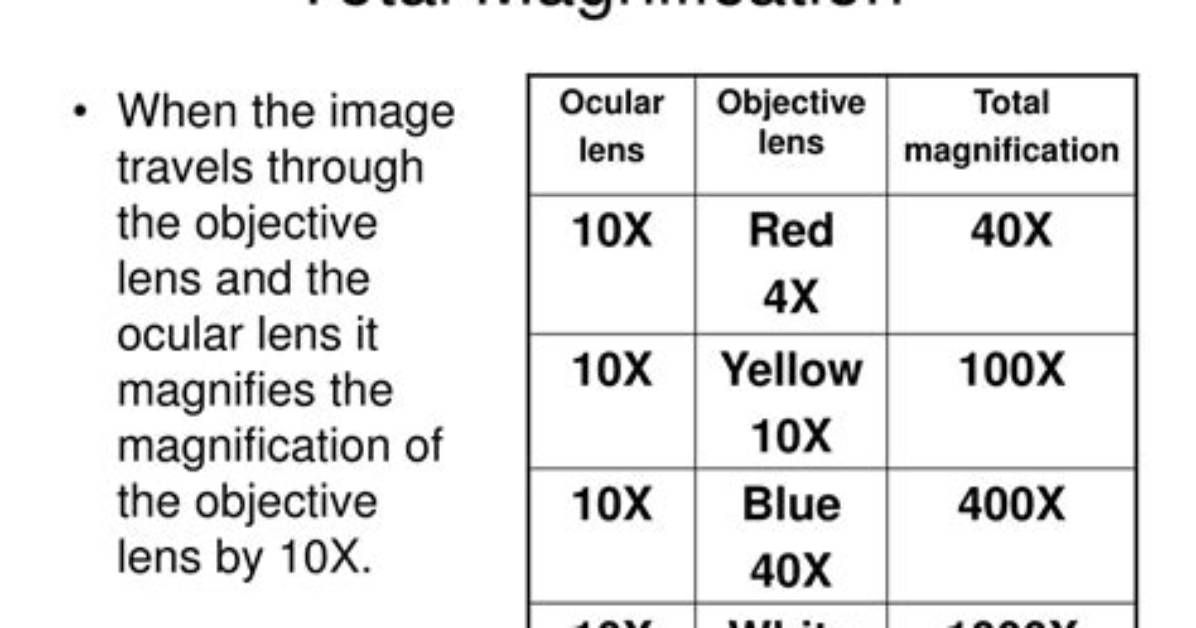

What is the total magnification of the following objective lenses with the eyepiece?
Objective Lenses: Usually you will find 3 or 4 objective lenses on a microscope. They almost always consist of 4x, 10x, 40x and 100x powers. When coupled with a 10x (most common) eyepiece lens, total magnification is 40x (4x times 10x), 100x , 400x and 1000x.
What is the purpose of a microscope diaphragm?
The field diaphragm in the base of the microscope controls only the width of the bundle of light rays reaching the condenser. This variable aperture does not affect the optical resolution, numerical aperture, or the intensity of illumination.
What is the total magnification of the eyepiece is 10x?
The total magnification of a high-power objective lens combined with a 10x eyepiece is equal to 400x magnification, giving you a very detailed picture of the specimen in your slide.
What is the total magnification at 4x 10x and 40x?
Grades 1-8 typically will buy a monocular compound microscope with 3 objective lenses: 4x, 10x, 40x for maximum total magnification of 400x.
What is the total low power magnification?
The low power objective lens usually has 10x or 20x magnification. You can identify it by a yellow strip around the lens housing. This objective can be very useful for viewing prepared specimens on slides. It will achieve somewhere around 100x to 200x magnification for a 10x or 20x eyepiece respectively.
How is total magnification calculated for a compound light microscope?
Compound Microscopes
The total magnification is calculated by multiplying the magnification of the ocular lens by the magnification of the objective lens. Light is passed through the sample (called transmitted light illumination).
What is the total magnification range of the compound binocular microscope?
Compound microscopes have a “nosepiece” with a rotating objective turret, which allows you to change the magnification level for different specimens. The standard objectives are 4x, 10x, and 40x for total magnification of 40x, 100x, and 400x.
