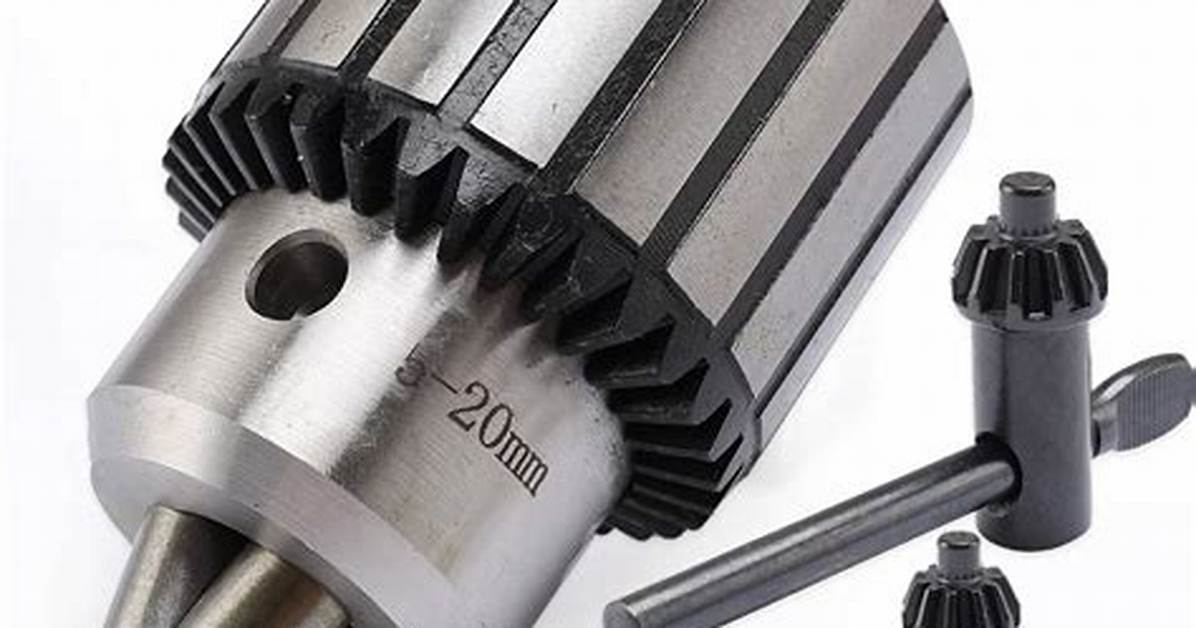

Drill chucks are devices used to hold a drill or other cutting tools on a spindle. They are available in keyed, keyless or hybrid systems, allowing for quick changes of a drill bit. Diagram of a Drill Chuck. Key Styles: Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key.
What are three types of drill chucks?
Various chuck types for cordless screwdrivers and cordless drills.1) A keyed chuck. Place regular drill bits into the chuck, which you can then tighten or loosen with a key. 2) A double-sleeve keyless chuck. 3) A single-sleeve keyless chuck. 4) An SDS chuck. 5) Hex connection.
What is chuck size on a drill?
The chuck is the slot where the drill bit is inserted, so the size of the chuck limits the size of the bit you can use. Available chuck sizes are 1/4 inch, 3/8 inch and 1/2 inch. A good size for most homeowners or hobbyists is 3/8 inch. Chucks are keyed or keyless.
Can you replace a drill chuck?
You can use the same tools to install a new chuck, or to replace the original chuck after cleaning: Thread the base of the chuck onto the spindle. Open the chuck. Insert the Allen wrench and tighten by hand.
How do you use a chuck drill?
How to Use a Keyless Drill Chuck
Hold your favorite drill or driver bit and turn the chuck until the teeth engage the bit (you can use the trigger to help if you prefer).Hand crank the chuck tighter until you feel it ratchet down. That’s it – simple!
What is universal chuck?
Definition of universal chuck
: a chuck in which the jaws are moved simultaneously to center the workpiece.
Do all drills have chucks?
Efficiency: Some drills have keyed chucks that require a tool to tighten and loosen, but many drills have keyless chucks that you can tighten or loosen by hand.
Are drill chucks Universal?
Seco universal drill chucks provide a simple, easy to use solution for holding drills. The compact design is compatible with clockwise and counterclockwise spindle rotation and allows the tool to be changed directly on the machine.
Are all drill chucks the same?
take the old chuck off and measure it, most chucks are interchangeable size for size.
What does 13mm drill mean?
13mm (1/2 inch) Quite simply, the larger your chuck size, the larger shank diameter it will accept. Generally, if you want to drill holes larger than 20mm in diameter or drill into materials such as metal, then consider purchasing a drill driver with a 13mm chuck, to accommodate larger bits.
What is a good torque for cordless drill?
Newton Metres (Nm) on drills:
4 to 15Nm is fine for all of those smaller screw driver tasks around the home. 15 to 35Nm is a great all-rounder to drill and drive medium sizes screws and hole drilling. 35Nm upward will tackle all of those more serious project with bigger screws and holes.
Which drill is best for home use?
Top 10 Best Drilling Machine for Home Use in India
Black & Decker KR554RE 550-Watt 13mm Drill Machine.Black & Decker EPC12K2 12-Volts Cordless Drill.Bosch GSB 501 500-Watt Professional Impact Drill Machine.Cheston Rotary Hammer Drill Machine 20MM 500W 850RPM with 3-Piece Drill Bit.Bosch GSB 500W 500 RE Tool Set.
How does a self tightening chuck work?
Self-centering three-jaw chuck and key with one jaw removed and inverted showing the teeth that engage in the scroll plate. The scroll plate is rotated within the chuck body by the key, the scroll engages the teeth on the underside of the jaws which moves the three jaws in unison, to tighten or release the workpiece.
Is a keyless chuck better?
Most experts and machinists would agree that keyed chucks are more accurate related to overall runout with some models as little as . 0006 inch. The jobs where the holes have no specific tolerance and are used for clearance allows the use of a keyless drill chuck for quick changes on manual milling machines.
