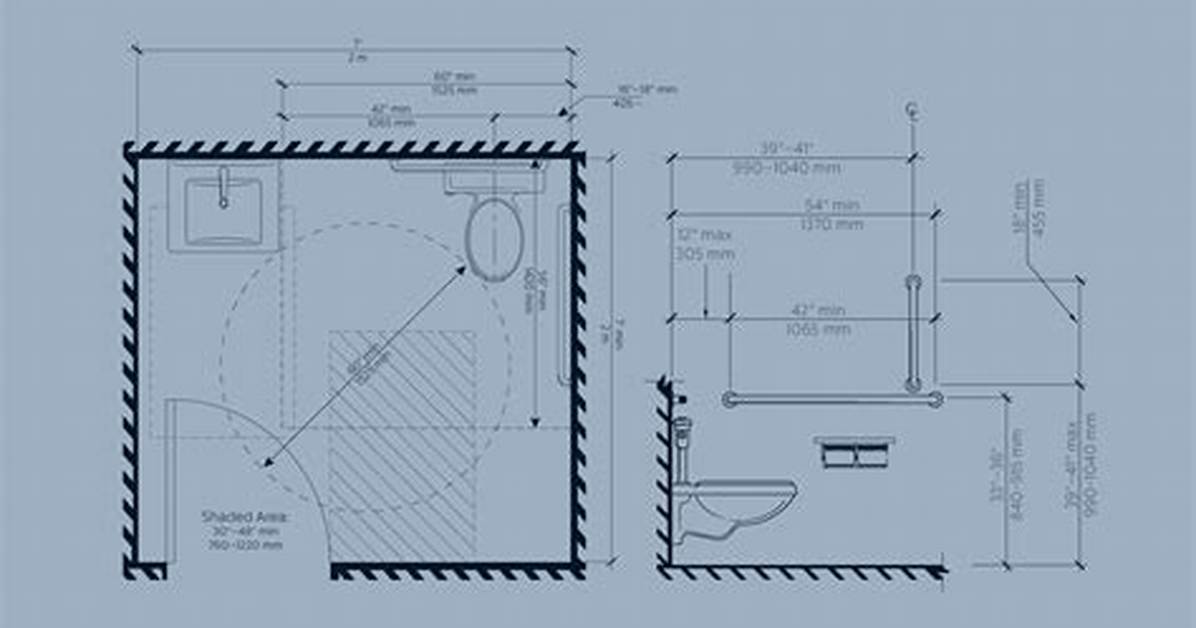

There must be a clearance around a toilet of a minimum of 60” from a side wall. Also, the water closet, measured perpendicular from the rear wall, must be a minimum of 56” deep for wall mounted units and a minimum of 59” deep for floor mounted units to allow wheelchair access.
What is the smallest an ADA bathroom can be?
With a shower, the smallest ADA bathroom could be about 54 square feet. Without a shower, the bathroom can shrink to 37.5 square feet.
What are the dimensions of a handicap bathroom stall?
Handicap Stall Requirements
By law, all public restrooms must have at least one stall that’s compliant with ADA dimension standards, with a door of at least 36 inches wide and a space that’s at least 60 inches wide and 60 inches deep.
Do ADA bathroom doors swing in or out?
Current ADA Guidelines
Current guidelines for bathrooms, published in 2010, allow the bathroom door to swing inward “as long as there is a clear floor space” beyond the door swing, when open.
What height is ADA compliant toilet?
The standard ADA (Americans with Disabilities Act) height toilets must have, a 17”-19” floor to bowl rim height, including the seat. You should also consider the toilet rough-in from the wall, which is commonly 12”. Other rough-in dimensions in older homes can be 10” or 14”.
How much space should be between toilet and vanity?
Toilet placement
A toilet should have some elbow room between it and another fixture or vanity. The NKBA’s recommendation is at least 18″. Codes allow a minimum distance of 15″.
What makes a toilet ADA compliant?
Accessible Toilets
An ADA-compliant toilet should be at least 60 inches wide and have a seat between 17 and 19 inches from the base of the unit to the seat top. In addition, there should be 16 to 18 inches of room between the unit’s centerline and the sidewall.
How many ADA showers are required?
Bathing Fixtures
Bathing facilities must have at least one compliant shower compartment or bathtub. In transient lodging guest rooms, a portion of accessible guest rooms must have a roll-in shower with a folding seat (§224.2).
Can door swing into ADA clear space?
Doors shall not swing into the clear floor space or clearance required for any fixture. Doors shall be permitted to swing into the required turning space.
What is a handicapped toilet?
Accessible toilets are toilets that have been specially designed to better accommodate people with physical disabilities. Persons with reduced mobility find them useful, as do those with weak legs, as a higher toilet bowl makes it easier for them to stand up.
How thick are bathroom stall partitions?
Bathroom stall walls vary in thickness from 1/2 to 1 inch, depending on what material they’re made of. The density of the restroom wall matters to your customers, as a solid and sturdy partition will make them feel safe and help form a quality impression of your business.
How wide does a bathroom door need to be for a wheelchair?
Doorways need to be wide enough to ensure ample space for a wheelchair to maneuver through openings. Some codes require 34-inch-wide exterior doors and 32-inch-wide interior doors. The Americans with Disabilities Act (ADA) requires doorways to have a minimum of 32 inches of width with the door open.
What does ADA bathrooms mean?
An ADA toilet, also known as disabled toilets, handicap toilets and/or comfort height toilets, are designed to address the inconvenience bought by disabilities by providing more space and hand bars. Generally speaking, an ADA toilet is one that is compliant with the requirements of the American Disabilities Act.
Which way should a bathroom door open?
Most contractors and home builders follow an unwritten rule that bathroom doors should swing inwards in both commercial and residential buildings. This design maximizes privacy, safety, and odor control while also ensuring that hallways are not blocked.
What makes a door handle ADA compliant?
To comply with ADA standards, a door handle may be no lower than 34 inches from the floor and no higher than 48 inches above the floor. This is measured from the surface itself, and not from the bottom of the door. So be aware of that distinction as you go to measure your handle height for each door.
What makes a sink ADA compliant?
Sinks & Faucets
To meet ADA guidelines, sinks shouldn’t be mounted higher than 34 inches from the floor, and they should have a knee clearance of 27 inches high, 30 inches wide, and 11 to 25 inches deep. You also need a clear floor space and insulated pipes under the sink.
