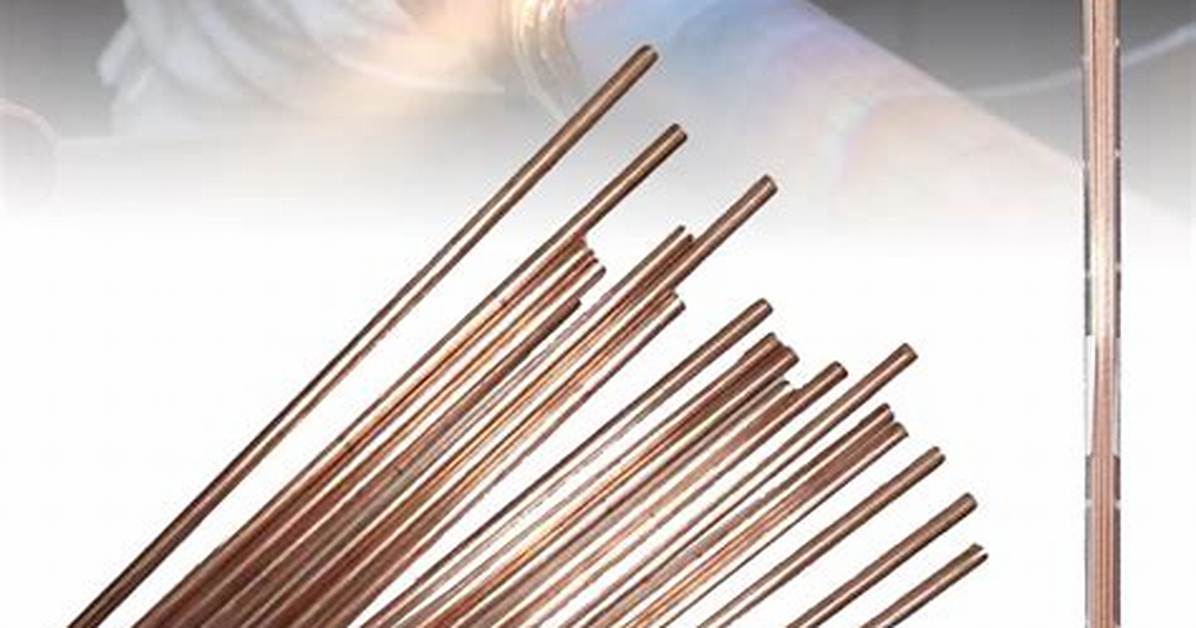

25M bronze welding rod is an example of a material formulated specifically for braze welding. It tins readily, flows freely, forms weld metal with excellent strength and high ductility.
Is brazing as strong as welding?
Comparative Advantages. First, a brazed joint is a strong joint. A properly made brazed joint (like a welded joint) will in many cases be as strong or stronger than the metals being joined. Second, the joint is made at relatively low temperatures, ranging from about 1150°F to 1600°F (620°C to 870°C).
Can you braze with a propane torch?
Brazing permanently joins two metals using a torch. You can use a propane torch to braze most metals you want to join. Propane torches are widely available in your local hardware stores, plumbing supply houses as well as at metalsmith and jewelry supply companies.
What do you use brazing for?
Brazing is used to join metal parts and can be applied to a wide array of materials, like brass, copper, stainless steel, aluminum, zinc-coated steel, and ceramics. Laser brazing offers some distinct advantages in applications that require the joining of non-similar metals.
Can you braze with a butane torch?
Can you weld with a butane torch? No, butane torches do not reach a high enough level of heat and energy to be able to braze or weld metals efficiently. A butane blowtorch simply does not get hot enough to affect the metal.
Can you use welding rods for brazing?
The most direct answer to this question is that welding rods can be used for brazing, with the only difference being the technique that is used. In other words, the welding rods will be used throughout the specific brazing technique, as opposed to being welded as intended.
What metals Cannot be brazed?
Metals You Shouldn’t Dip Braze
Heating metals, like silver or gold, to such high heat requires a lot of precision. It’s more common for these metals to be soldered rather than brazed. Gold and silver can handle the lower heat better, and soldering can still give a good bond, even if it’s not as strong.
What are the disadvantages of brazing?
Disadvantages of Brazing Include:
Producing lower strength joints compared to welding.Producing joints that are not as well suited to high-temperature applications as welds.Fluxes may contain toxic components.
Why are bike frames brazed instead of welded?
“Traditionally frames have always been brazed not because a weld would fail but because the tube would fail right next to the weld due to the tube being very thin. Many bicycle tubes are heat treated to strengthen them.
What equipment is needed for brazing?
The heat required for a brazing operation is provided by a handheld torch, furnace, or induction heating system. In specialized dip and resistance brazing, heat is provided by a flux coating or the resistance between the workpieces, respectively.
What kind of torch is used for brazing?
Brazing is similar to soldering , but requires higher temperatures and instead of solder, a brass rod is used. The torches are more complex and can use acetylene gas, or Mapp gas ( a modified type of propane).
Is propane hotter than acetylene?
Acetylene releases almost 40% of its heat in the inner flame cone. Therefore, acetylene is better for cutting than propane. While temperature wise acetylene is hotter than propane the fact is that people are using propane for cutting incorrectly.
Does brazing require flux?
Flux is essential in the brazing process because it prevents oxides from forming and inhibiting the metallurgical bond in brazing. Oxides are the result of chemical combination between the hot metal and oxygen in the air and form when a metal surface is heated.
Is brazing permanent?
Brazing is an economical method for making strong, permanent metal joints.
Can you braze with just MAPP gas?
It depends on the size of the weldment and the torch. It should be OK for small stuff like brazing on a nut or a tab. Some of the newer “turbo” or “swirl” type torches are quite a bit hotter than the old style.
What gases are used for brazing?
For brazing there are generally two equipment options to choose from: oxygen/acetylene or air/acetylene. While alternate fuel gases are available, most contractors still use acetylene.
What temp does brazing rod melt?
Brazing uses filler rods that melt above 840 deg F. The metals being repaired or joined melt at much higher temperatures, so brazing does not affect them.
