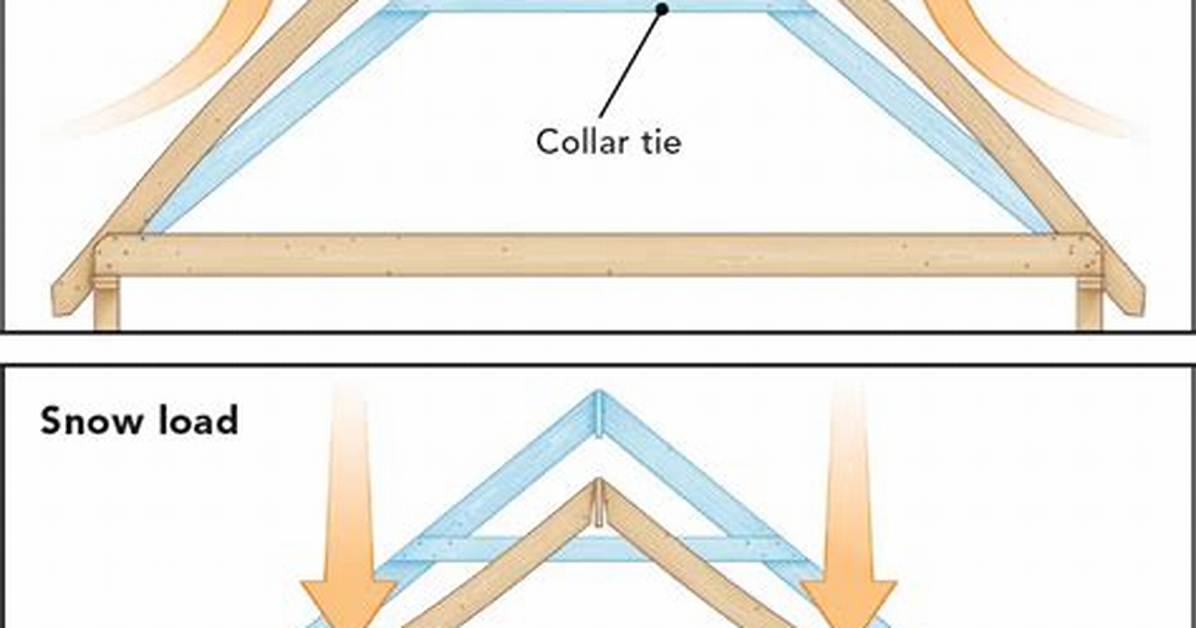

Collar Ties are horizontal timber beams between the rafters that stop the rafters spreading. The downwards loads of roof coverings tend to spread the rafters and push the tops of the house wall outwards.
Do I need collar ties?
The most common reason for installing collar ties is to prevent rafters from spreading apart under load. However, in a conventionally framed peaked roof, like the kind you describe, collar ties would probably serve little or no function, since the attic floor joists serve as ties to prevent the rafters from spreading.
What is the difference between a rafter tie and a collar tie?
Collar ties are necessary to prevent separation of the roof at the ridge due to wind uplift. Rafter ties resist the forces caused by gravity loads that would otherwise cause the roof to pancake and push out the sidewalls.
What are collar ties in a roof?
A collar tie is a tension tie in the upper third of opposing gable rafters that is intended to resist rafter separation from the ridge beam during periods of unbalanced loads, such as that caused by wind uplift, or unbalanced roof loads from snow.
Where do you put collar ties on rafters?
A collar tie prevents rafter framing from separating from the ridge board under unbalanced loads. Collar ties should be no smaller than 1×4 nominal lumber and should be near or in the upper third of the rafter span. In 24 inch rafter spacing, collar ties are on every other pair of rafters or 48 inches apart.
Does a shed roof need collar ties?
A shed roof is similar; as long as it’s properly attached at the top, the bottom can’t move. “Collar ties” are an exercise in futility. Use them as ceiling joists if needed; otherwise, leave them out.
Does a collar tie reduce rafter span?
Collar ties can be used used to reduce rafter span – they essentially provide intermediate support for the rafter, but only for roofs with a pitch of more than 1:3.
What is a Perling?
A purlin (or historically purline, purloyne, purling, perling) is a longitudinal, horizontal, structural member in a roof. In traditional timber framing there are three basic types of purlin: purlin plate, principal purlin, and common purlin.
Can collar ties replace ceiling joists?
Collar ties, which are designed primarily to resist wind uplift, are required in the upper third of the attic space. Unlike ceiling joists, collar ties can be made of less-substantial material (1×4 minimum) and can be spaced up to 4 feet apart. Ridge straps can be used in lieu of collar ties to resist uplift.
How long should collar ties be?
Collar Tie Alternatives
By now you know that a collar ties is a wood member with a nominal size no less than 1 inch x 4 inch, spaced no more than 4 feet on center, and located within the upper one-third area of the attic space.
Are ceiling joists load bearing?
Walls that run perpendicular (at a 90 degree angle) to the ceiling joists are load-bearing. Walls that run parallel (in the same direction) as the ceiling joints are non load-bearing. Ceiling joists are spliced over the wall.
How many rafter ties do I need?
Rafter ties amount to an additional framing member that runs above the ceiling joists and that connects opposing rafters. They are generally required every 4 ft., which means that you need a rafter tie only for every other pair of 24-in. o. c. rafters or for every third pair of 16-in. o. c. rafters.
