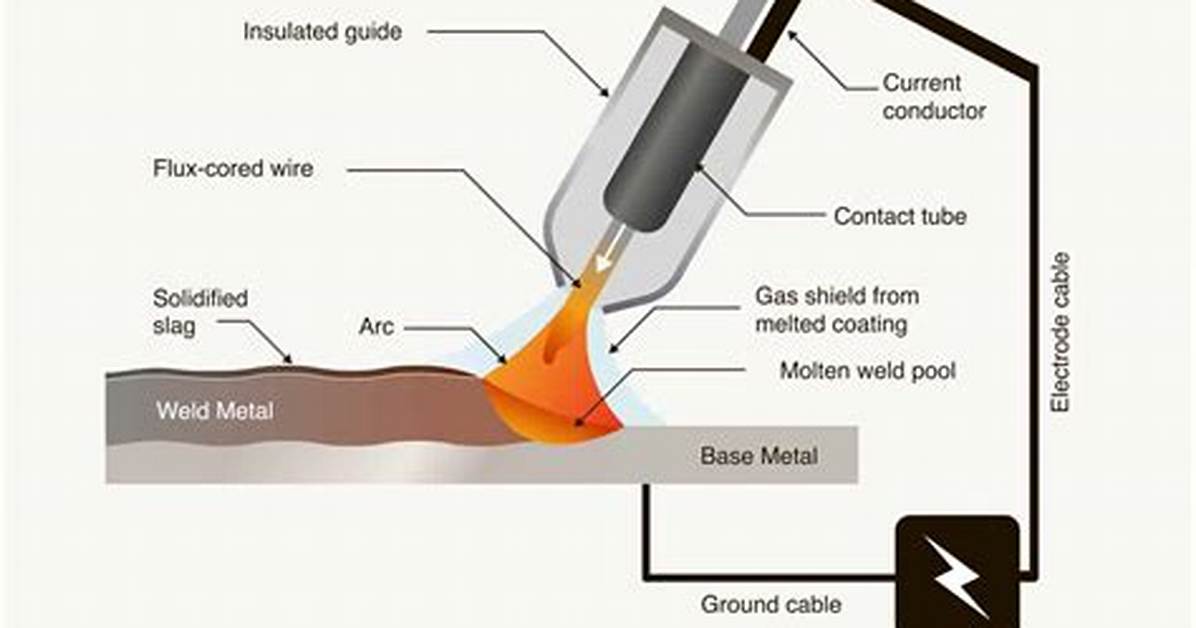

Flux-Cored Arc Welding (FCAW) uses the heat generated by a DC electric arc to fuse the metal in the joint area. The arc is struck between a continuously fed consumable filler wire and the workpiece, melting both the filler wire and the workpiece in the immediate vicinity.
Is FCAW the same as MIG welding?
Flux cored arc welding is a process similar to MIG welding. Both processes using continues wire feeds, and similar equipment. The power supply for a FCAW, and a MIG welder, are the same machine. They are both considered semi automatic processes, and have a very high production rate.
What is the difference between SMAW and FCAW?
Shielded Metal-Arc Welding (SMAW) or Stick Welding is a manual welding process that is very similar to FCAW – the main difference being that the entire electrode is coated with an inert gas (flux) in SMAW whereas in FCAW the flux is only at the core of the electrode.
What metals can FCAW weld?
Which Metals Can Be Welded with FCAW? Flux cored arc welding works well with most carbon steels, cast iron, stainless steel and hard facing / surfacing alloys. However, nonferrous exotic metals, such as aluminium, cannot be welded using this welding technique.
What are the advantages of FCAW?
The Advantages of FCAW
Yields high quality, consistent welds with fewer defects.A high deposition rate, which is the speed that the filler metal is applied.Can be used in all positions with the right filler metal.Suitable for outdoor welding or shop welding.
Is FCAW the same as GMAW?
GMAW (especially MIG) can be used for joining a wide variety of metals and alloys. FCAW is predominantly used for joining ferrous metals. It offers relatively lower penetration of the weld metal. It offers higher depth of penetration.
What is difference between FCAW and GMAW?
Experts recommend that FCAW be used only on materials no thinner than 20-ga., a bit thicker than the 24-ga. for GMAW. In general, this process is best for welding thicker materials with a single pass, especially when welding outdoors. With the proper electrode and the right machine, you can weld steel up to 1/2 in.
What are the disadvantages of FCAW welding?
FCAW Disadvantages
A high level of noxious fumes which must be ventilated.Higher electrode wire cost compared to solid electrode wires.More costly equipment than many other welding processes.Less portable equipment than SMAW or GTAW.The slag covering the weld must be removed.
What is SMAW and FCAW welding are used for?
FCAW is ideal for outdoor welding and for welding on dirty or contaminated materials, since it doesn’t require an external shielding gas to protect the weld from atmospheric elements. Much like the SMAW process, FCAW also produces slag that is chipped off after the weld to give it a clean look.
Does FCAW produce slag?
An externally supplied shielding gas is sometimes used, but often the flux itself is relied upon to generate the necessary protection from the atmosphere, producing both gaseous protection and liquid slag protecting the weld.
What are the 3 types of welding?
Three of the most common are Arc, MIG (Metal, Inert Gas) or GMAW (Gas, Metal Arc Welding), and TIG (Tungsten Inert Gas) welding. In order to know which process is best for the particular job you’re working on, here’s what you should know about each of them. Arc welding is the oldest of these three welding processes.
What polarity is used for FCAW?
It uses DCEN (Direct Current Electrode Negative) as its polarity. This means that about ⅔ of the heat from the arc is concentrated on the workpiece while ⅓ of the heat is burning the electrode. Unlike Dual Shield, the wire for Self-Shielded FCAW does not require a shielding gas.
What are the two basic FCAW processes?
There are two basic process variants; self shielded FCAW (without shielding gas) and gas shielded FCAW (with shielding gas).
What type of polarity is used with FCAW G?
Both FCAW-S and FCAW-G operate with a standard constant-voltage (CV) power source set for straight polarity (direct-current electrode negative, or DCEN) or reverse polarity (direct-current electrode positive, or DCEP), depending on the wire formulation.
Does FCAW use shielding gas?
FCAW processes involve using a continuous wire-fed electrode, a constant-voltage welding power supply, and the same equipment used in metal active gas welding (MAG welding). Flux-cored arc welding occurs with or without shielding gas and is way more productive and economical than MAG welding.
What are the two main types of FCAW electrodes?
However, there are two fundamentally different categories or sub-sets of electrodes in this group. These include self-shielded, flux-cored electrodes (FCAW-S process) and gas-shielded, flux-cored electrodes (FCAW-G process).
What is the difference between FCAW S and FCAW-G?
Both FCAW-S and FCAW-G type of flux-cored arc welding. The only difference between the both is the type of Cored wire. FCAW-S produce shielding gases required for the weld in sufficient quantity and FCAW-G requires additional externally supplied shielding gases to protect the weld pool.
