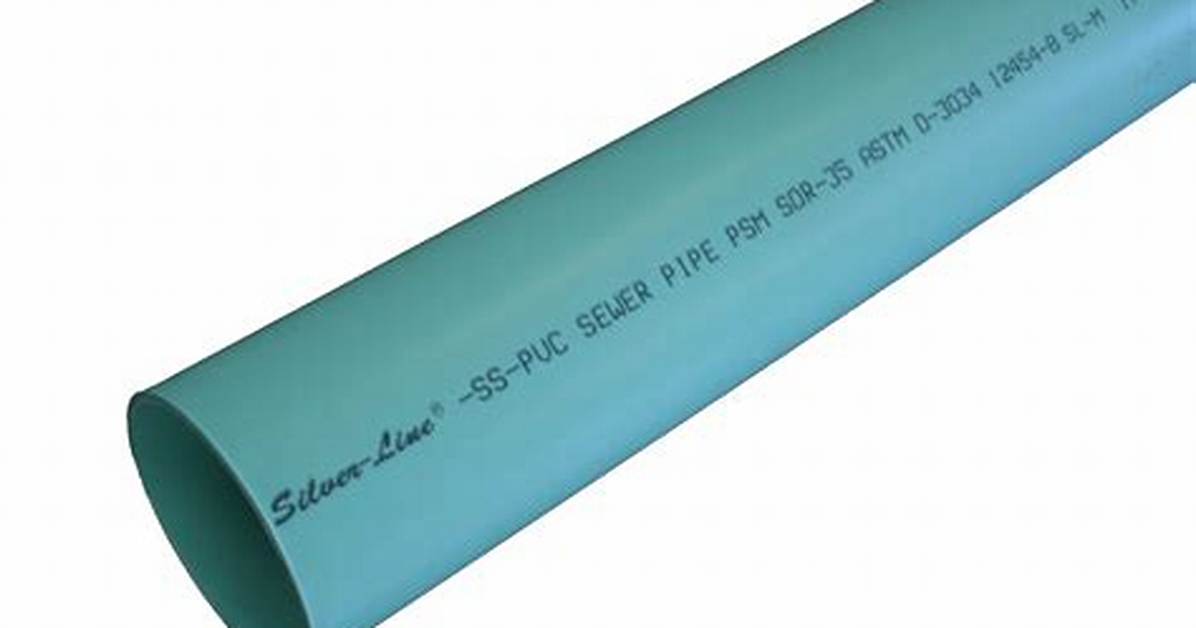

SDR 35 PIPE
Used mainly in stormwater and drainage applications, SDR 35 is a medium-strength pipe that falls between Schedule 20 and Schedule 40 PVC pipe. It comes in 14′ lengths, and is compatible with the standard SDR 35 gasketed fittings, as well as Schedule 20 glue fittings.
Is SDR35 pipe PVC?
SDR35 PVC Sewer Pipe Is A Solid Investment:
Like other PVC pipe systems, SDR35 PVC sewer pipe is resistant to a great many chemicals and environments, making it a great long-term choice for your water utility’s infrastructure investment projects.
What is the difference between SDR 35 and Schedule 40 pipe?
SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give. It will simply snap or break from the pressure.
Can you drive over SDR 35 pipe?
The fittings are interchangeable with each other which adds to the versatility of this and SDR 35 pipe. It is recommended to use where any type of vehicular traffic would not cross the area. At that point a transition can be made to SDR 35 to withstand areas where that traffic may cross.
What is ABS plastic pipe?
Diffen › Science › Chemistry. Both ABS and PVC are used in pipes because they are non-toxic and resistant to abrasion. ABS pipes are easier to install compared to PVC pipes, but also more likely to deform when exposed to the sun. ABS stands for acrylonitrile butadiene styrene and PVC stands for polyvinyl chloride.
Why would one use cast iron pipe over plastic pipe?
Cast iron is thick and dense. Water flowing through it won’t cause as much vibration as it would in a PVC pipe. These vibrations are what lead to noise, so if sound dampening is a major concern, cast iron is the better choice.
Which is stronger SDR 35 or SDR 26?
SDR 35, from a strength classification requirement for PVC pipe, requires a minimum pipe stiffness of 46 psi at 5% deflection, for SDR 26 – 115 psi, and for SDR 23.5 – 153 psi. The key to requiring a particular SDR for plastic pipe is no different than for other pipe products such as (rigid) concrete pipe.
What is green sewer pipe made of?
The green sewer drain pipe is used for the final underground run from a house to the municipal sewer or septic tank. It is manufactured to be compliant with “ASTM D 3034” standard and is often referred to as “3034” pipe. It is PVC, but a lighter weight than white Schedule 40 DWV (Drain-Waste-Vent) pipe.
What is corrugated drain pipe?
A corrugated pipe is a pipe with a series of ridges and grooves running parallel to each other on its surface. The ridges and grooves follow a pattern that is perpendicular to and bisecting the centerline of the pipe.
Is SDR pipe schedule 40?
Usually, SDR has a 4″ interior diameter, the same as schedule 40, but since the wall is thinner, the outer diameter is not the same. A schedule 40 pipe is universally more common and part of the standard pipe thickness schedule as seen below.
What SDR is schedule 40?
NOTE: 8″ SDR-26 IS DUAL MARKED FOR SCH-40 PIPE.
How thick is SDR 35?
The 4-inch size has an outside diameter of 4.215 inches, while the 6-inch measures 6.275 inches, the 8-inch measures 8.4 inches, the 10-inch measures 10.5 inches, the 12-inch measures 12.5 inches and the 15-inch measures 15.3 inches. The minimum wall thickness ranges from 0.12 to 0.437 inch.
How do I protect water lines under my driveway?
Use PVC pipe to protect other supply lines that you must run under the driveway, as well.
Dig a trench across the gravel driveway with a shovel. Add two inches of coarse gravel the size of ping-pong balls in the bottom of the trench if there isn’t already gravel in the trench.Measure the width of the driveway.
Can you drive over 4 PVC pipe?
The short answer is yes, you can drive over buried corrugated or PVC drain pipe. For the long answer, read on. This article’s aim is to offer you answers to this question and why drainage pipes are corrugated.
How deep does PVC have to be buried to drive over?
At depths of more than 10 feet, a water traffic load is often considered to have a little to no effect on the buried pipe. 12″ from the top of the pipe to the underside of the road surface is the minimum depth at which PVC pipe with traffic loading can be buried.
What is better PVC or ABS pipe?
PVC pipe is more flexible than ABS, while ABS is a bit stronger and can resist a higher shock or impact. Additionally, PVC has an advantage in that it’s better at muffling the sound of water as it flows through the pipework.
Which is stronger PVC or ABS pipe?
PVC is more flexible than ABS, but ABS is stronger and more shock resistant. ABS is better at handling severely cold temperatures, but it can warp with exposure to direct sunlight. PVC is thought to be better at muffling the sound of running water. In most North American markets, the two types are priced similarly.
Can you glue ABS pipe to PVC pipe?
If you’re plumbing in a new drain or vent and have to join two different kinds of plastic pipe, black ABS and white PVC, don’t assume that you can simply glue them together. Most plumbing codes don’t allow ABS pipe to be solvent-welded (glued) to PVC.
