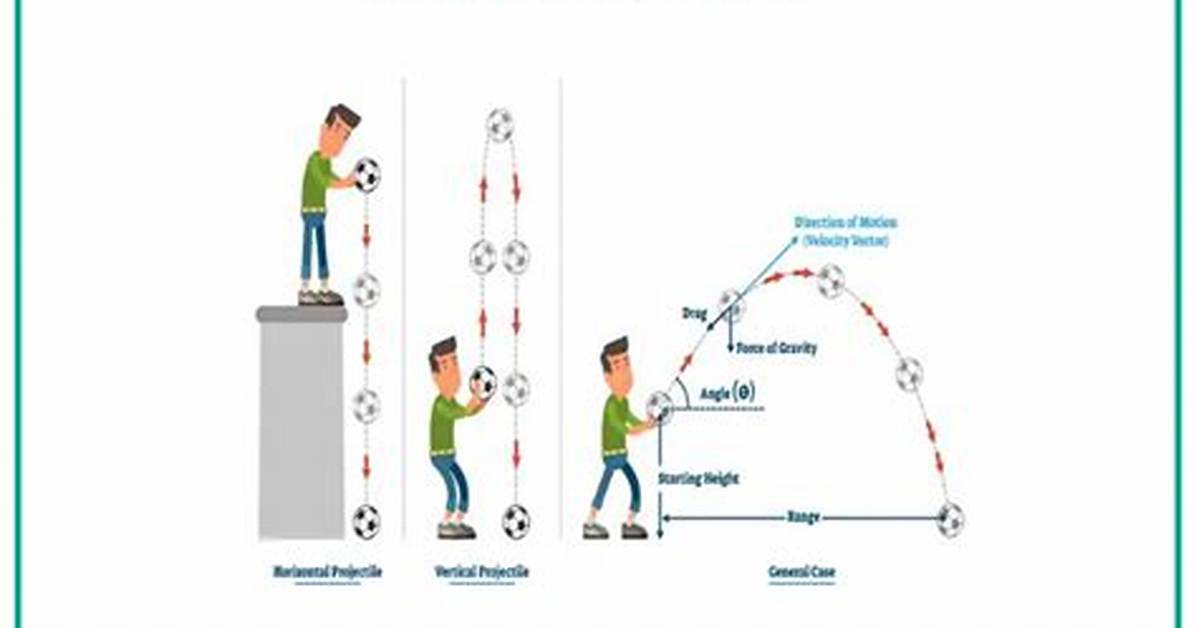

A motion diagram is like a composite photo that shows the position of an object at several equally spaced time intervals, like a stroboscopic photograph. We model the position of the object with a small dot or point with reference to a coordinate axis.
How do you make a motion diagram?
To draw a motion diagram, you sketch 3 to 5 consecutive “frames” of the position of the object. You start by drawing the actual object at some initial position. Then, you draw a second object at its next position (next frame). For example, if the object is moving to the right, then the next position is to the right.
What does motion diagram represent?
A motion diagram represents the motion of an object by displaying its location at various equally spaced times on the same diagram. Motion diagrams are a pictorial description of an object’s motion. They show an object’s position and velocity initially, and present several spots in the center of the diagram.
What are characteristics of a motion diagram?
The motion diagram includes appropriately spaced dots that represent the object’s constant speed motion, speeding up motion, or slowing down motion.
What are the 4 types of motion in physics?
In the world of mechanics, there are four basic types of motion. These four are rotary, oscillating, linear and reciprocating.
How do you make a free body diagram?
To draw a free-body diagram, we draw the object of interest, draw all forces acting on that object, and resolve all force vectors into x– and y-components. We must draw a separate free-body diagram for each object in the problem.
What is an example of a motion diagram where the object is replaced by a series of single points?
A particle model is a simplified version of a motion diagram in which the object in motion is replaced by a series of single points.
What do the arrows on a motion diagram represent?
A motion diagram represents the position, velocity, and acceleration of an object at several different times. The times are usually separated by equal time intervals. At each position, the object’s velocity and acceleration are represented by arrows.
What are the two components used to define motion?
Lesson Summary
Motion is the act of moving or changing position. When studying motion there are many factors to look at. The main factors of motion revolve around force, speed, velocity, acceleration, and an object’s mass.
What error did Rana make?
What error did Rana make? The acceleration should be increasing, not decreasing.
At what point is a car decelerating?
In the same way that velocity is the rate of change of displacement, acceleration is the rate of change of velocity. In other words, whenever a car increases its velocity, it is said to be accelerating and whenever it is slowing down, it is said to be decelerating.
How do we describe the motion of an object?
You can describe the motion of an object by its position, speed, direction, and acceleration. An object is moving if its position relative to a fixed point is changing.
Why is the study of motion important?
Force and motion are important parts of everyday life. As students study this unit, they will learn how these physical factors impact their lives and work. The lessons and activities will help students become aware of factors like friction, gravity, and magnetic force.
