Usually, spring brakes are used as parking brake. They can be found on the rear axle of heavy trucks. The spring brakes works like this: The pressure is applied to the spring side, which allows the parking brake to disengage. When the spring is decompressed (at 20 lbs), parking brakes have been applied.
What does a spring brake valve do?
In a trailer air brake system, the SR-2™ spring brake valve controls the functioning of the spring brakes during parking and emergency applications. It is responsible for automatically applying the spring brakes and preventing trailer air pressure loss in the event of breakaway or supply line failure.
Can spring brakes fail?
When a spring brake chamber fails, a technician may use the manual caging method to temporarily disable it. A spring brake chamber that has been disabled by this method looks different and the parking and emergency brake will not apply.
What affects the power of spring brakes?
The braking power of the spring brakes:
B Depends on the adjustment of the service brakes. C Increases when the service brakes are hot. D Is not affected by the condition of the service brakes.
How do I know if my spring brakes come on automatically?
What can you check to see if the spring brakes come on automatically? Step on and off the brake, with the engine off, the parking brake knob should pop out when air pressure falls between 20-40 psi. Get under the vehicle and pull on the spring brakes.
When did trucks get spring brakes?
In 1956, when heavy over-the-road vehicles, lacking a reliable air-brake backup device, were experiencing air system failures, MGM’s founders came up with an innovative solution to this industry safety problem; designing and patenting the first spring parking brake.
At what PSI does your spring brakes come on at?
You must memorize that the spring brakes will activate when air pressure drops to between 20 and 45 psi.
What are spring brakes held back by?
Spring brakes are usually used to meet these needs. When driving, powerful springs are held back by air pressure. If the air pressure is removed, the springs put on the brakes. A parking brake control in the cab allows the driver to let the air out of the spring brakes.
What is spring brake priority?
Spring brake or service brake priority
This means that, in a system with “spring brake priority,” the air from the towing vehicle first fills the air tank for the spring brakes to a certain pressure before filling the air tank for the service brakes.
What is trailer spring break?

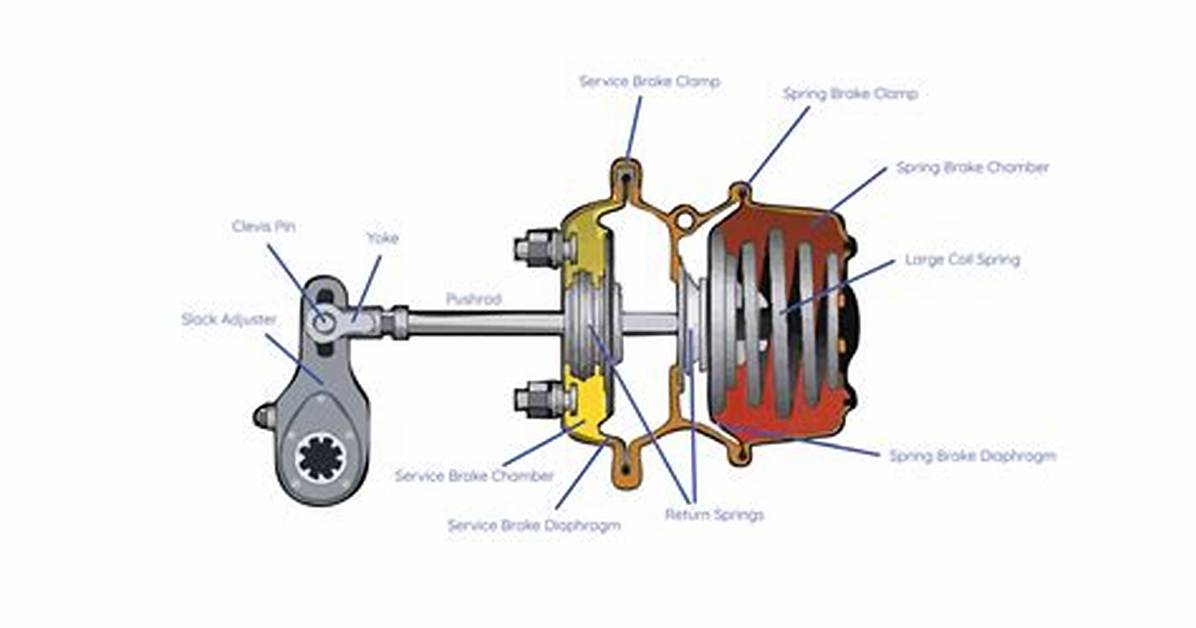

Spring Brakes, also called Maxi Brakes , have two chambers – one that acts the same as a standard brake chamber, and a second chamber that contains a very powerful mechanical spring that acts as a fail-safe should the air brake system lost air pressure.
What happens when a truck loses air pressure?
Once the pressure has dropped below the point where they can adequately function, your brakes will not work. If you continually depress or ride your brake pedal, not only will you drain your air reservoirs, you will also overheat your brake drums.
What is stab braking?
Explanation The stab braking method for emergency stops involves fully applying the brakes until they lock up. The brakes are then released until the wheels start rolling, and then the process is repeated.
What happens if air brakes lose pressure?
The brakes may be sluggish. The brakes will be very sensitive. Explanation Pressing and releasing the brake pedal unnecessarily can let air out faster than the compressor can replace it, reducing the available air pressure. If the air pressure in an air brake system gets too low, the brakes will no longer work.
When driving down a steep downgrade you should?
The vehicle should be placed in a low gear and the driver should use engine braking. The driver should continually downshift instead of using the brakes. Explanation On long and/or steep downgrades, you should primarily use engine braking to control the speed of your vehicle.
How can you manually check the slack adjusters?
With service brakes in the released position, mark the push rod even with the brake chamber. Make a full brake application and mark the push rod again. Measure between the two marks to determine the length of push-rod travel (stroke).
How do you know when your brakes are fading?
With brake fade, the most noticeable symptom is a loss of braking power or brake torque. Your vehicle won’t slow down the way it’s supposed to, no matter how hard you press down on the brake pedal. However, the brake pedal won’t feel spongy or weird in any other way.
