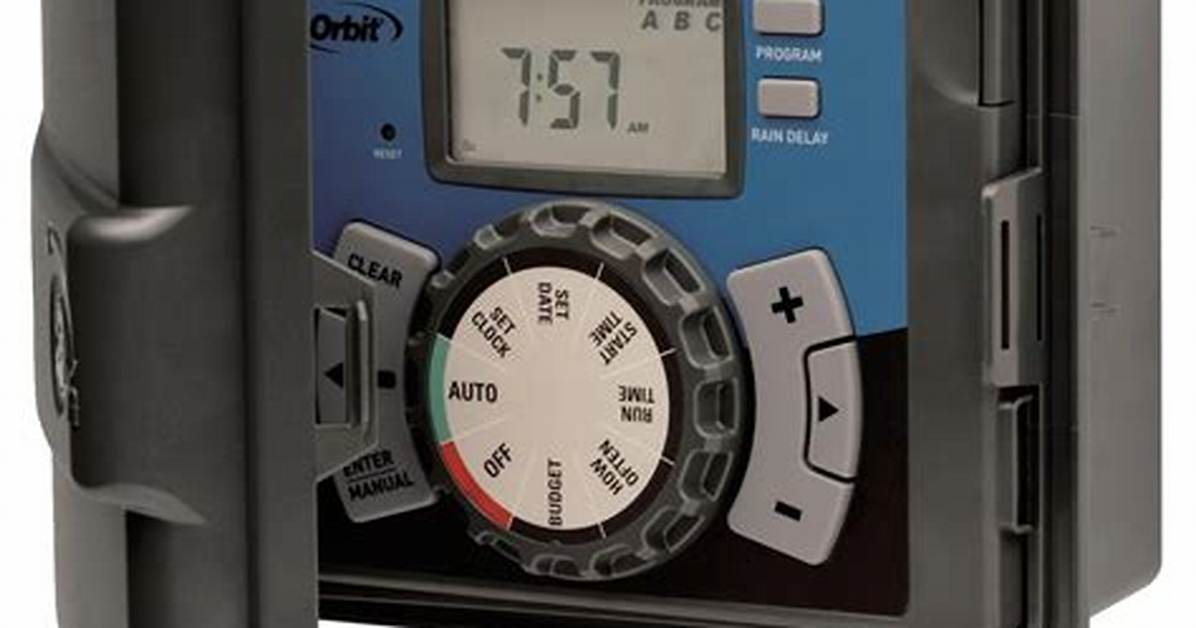

Turn the dial to the “Auto” position and move the slide switch for the desired valve up to the “Manual On” position to test valves on Orbit’s “Individual Station Slide” timers. To test all the valves in sequence, simply press the “Manual” key and press “Enter.”
How do I reset Orbit sprinkler control?
Fixing of sprinkler timer
Turn On the program settings. Now, select the option of watering.Turn on the Auto mode.Set the Station Delay settings.Lastly, press the Reset button, and here goes your fixing.
How do I turn on my orbit sprinkler system after winter?
Steps to turn on sprinkler system after wintering
Find system’s main shut-off valve. Find the vacuum breaker. Close the vacuum breaker test valves. Open the vacuum breaker’s shut-off valves. Reinstall main valve bleeder cap (as needed). Slowly open the main valve. Test the system. Recheck the vacuum breaker and valves.
Why is my orbit sprinkler not working?
Check the connection to the docking port to ensure the timer is plugged in properly. Try removing the timer and reinserting it into the docking port, pushing down until you hear a click. If you are still not getting power, the timer may be defective.
Why won’t my orbit sprinkler valve shut off?
Every sprinkler system relies on valves to control the flow of water to individual zones. A broken valve can mean water will not shut off automatically. When this happens, try turning the tab or ring on the black solenoid on top of the valve clockwise until the water shuts off.
Should sprinkler valves be open or closed?
Make sure the sprinkler valve is closed, unless it’s the valve farthest from the main water source. You’ll want to leave this valve open and remove the sprinkler nozzle to allow air to escape when you turn on the water.
What is fault program on Orbit timer?
A fault message appearing on your timer or phone means that your B-hyve device is detecting a short in one of the station wires or solenoid attached to the B-hyve device. Typically this will happen with older valves or if you have multiple valves attached to one terminal of the B-hyve device.
Why does my orbit sprinkler timer says off power?
Sprinkler timers send an electric signal to a series of valves. These valves control the flow of water through an irrigation system. If your sprinkler timer has power but is not communicating with the valves, there is likely a faulty connection somewhere along the line.
