The UTM (Universal Transverse Mercator) coordinate system divides the world into sixty north-south zones, each 6 degrees of longitude wide. UTM zones are numbered consecutively beginning with Zone 1, which includes the westernmost point of Alaska, and progress eastward to Zone 19, which includes Maine.
How do you find the UTM zone on a map?
If UTM ticks are shown on a USGS topographic map, the zone is indicated in the credit legend in the lower left corner of the map collar. Within each zone, coordinates are measured as northings and eastings in meters. The northing values are measured from zero at the equator in a northerly direction.
Are there 60 or 120 UTM zones?
Universal Transverse Mercator Zone n (N) – The Northern Hemisphere projections for the infamous UTM system consisting of 120 zones (60 different zones with North and South variants of each).
What UTM Zone is the US in?
The conterminous United States is within UTM zones 10 to 19. Here is a convenient way to find the zone number for a particular longitude. Consider west longitude negative and east longitude positive, add 180° and divide by 6.
What UTM zone is UK?
WGS 84 / UTM zone 30N.
Who uses UTM?
UTM is currently used by the United States and NATO armed forces. With the advent of inexpensive GPS receivers, many other map users are adopting the UTM grid system for coordinates that are simpler to use than latitude and longitude. The UTM system divides the earth into 60 zones each 6 degrees of longitude wide.
What are WGS84 coordinates?
The Global Positioning System uses the World Geodetic System (WGS84) as its reference coordinate system. It’s made up of a reference ellipsoid, a standard coordinate system, altitude data, and a geoid. Similar to the North American Datum of 1983 (NAD83), it uses the Earth’s center mass as the coordinate origin.
What is UTM Northing and Easting?
A Universal Transverse Mercator coordinate comprises a zone number, a hemisphere (N/S), an easting and a northing. Eastings are referenced from the central meridian of each zone, & northings from the equator, both in metres.
Is UTM a projection?
The Universal Transverse Mercator (UTM) is a map projection system for assigning coordinates to locations on the surface of the Earth. Like the traditional method of latitude and longitude, it is a horizontal position representation, which means it ignores altitude and treats the earth as a perfect ellipsoid.
Is WGS 84 a projection system?
Nevertheless, WGS84 is not a projection. The image shown uses a Plate Carree (aka Equirectangular) Projection. EPSG:4326 is a “spatial reference” system.
Is UTM the same as MGRS?
The Military Grid Reference System (MGRS) is an extension of the UTM system. UTM zone number and zone character are used to identify an area 6 degrees in east-west extent and 8 degrees in north-south extent. UTM zone number and designator are followed by 100 km square easting and northing identifiers.

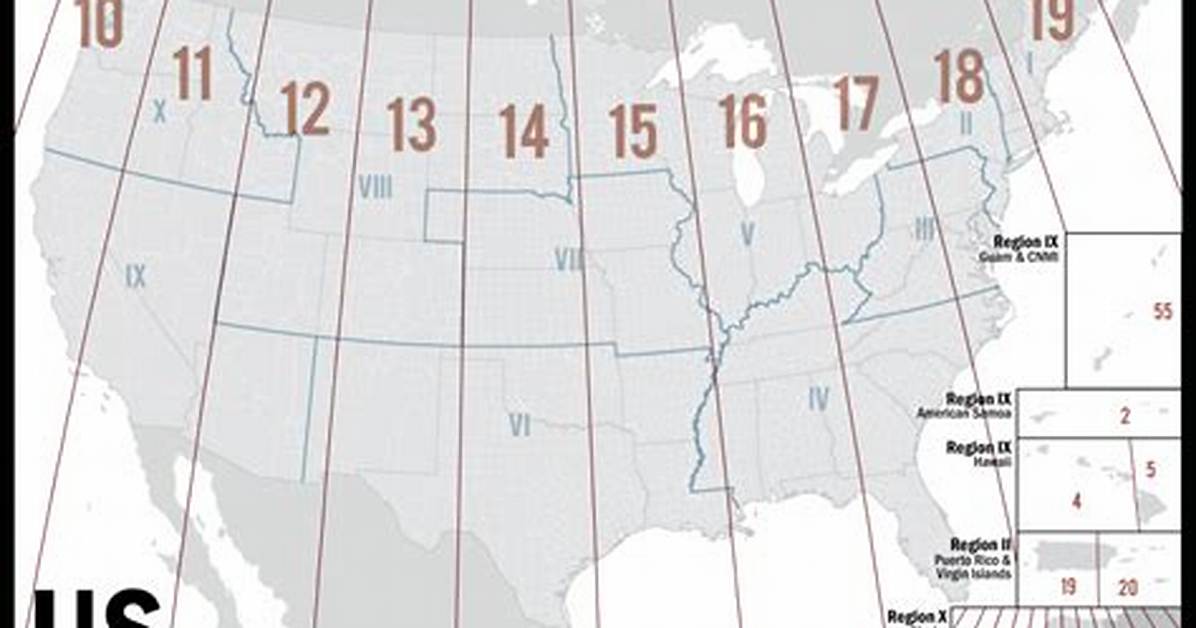

How many UTM zones are in the contiguous US?
Detailed Description. The Universal Transverse Mercator grid that covers the conterminous 48 United States comprises 10 zones—from Zone 10 on the west coast through Zone 19 in New England. In each zone,coordinates are measured north and east in meters.
How do I find my UTM zone number?
So for example, the UTM zone number for 39° W would be found through these steps: -39 + 180 = 141. 141 / 6 = 23.5. 5 rounds up to 24.
Option 1 – The Mathematic Approach
Take your longitude coordinate in decimal degrees and add 180. Then divide by 6.Finally round-up to the next highest whole number.
What UTM zone is Florida in?
Florida falls into UTM zones 16 and 17. When using the UTM system, linear parameters are established.
What UTM zone is BC in?
Sequentially- numbered 1 through 60, from west to east, the starting point for the zones (and the common border between Zone 1 and Zone 60) is the 180-degree meridian of longitude, or International Date Line. British Columbia occupies 5 UTM zones: 7 through 11.
