A 110V outlet (and plug) has only one hot terminal, and the hot wire is always black. Another key difference between 110 and 220 circuits is the wire size. Because 220-volt circuits carry higher current, they require 10 gauge or larger wire, whereas the normal maximum wire size in a 110-volt circuit is 12 gauge.
Are outlets 110 or 120 volts?
The most common electrical outlet in any home is a 110 volt. Sometimes you may hear 110 volt plugs referred to as 120 volt. Do not be confused by this; think of them as one and the same.
Is 110v and 120v the same?
As 110v and 120v are almost the same, there is no specific difference on which device is for which outlet. Electrical appliances are designed to work in a range of voltages. So, considering that, if a device works in a 110v outlet, it should work in a 120v outlet as well.
What does a 120V outlet look like?

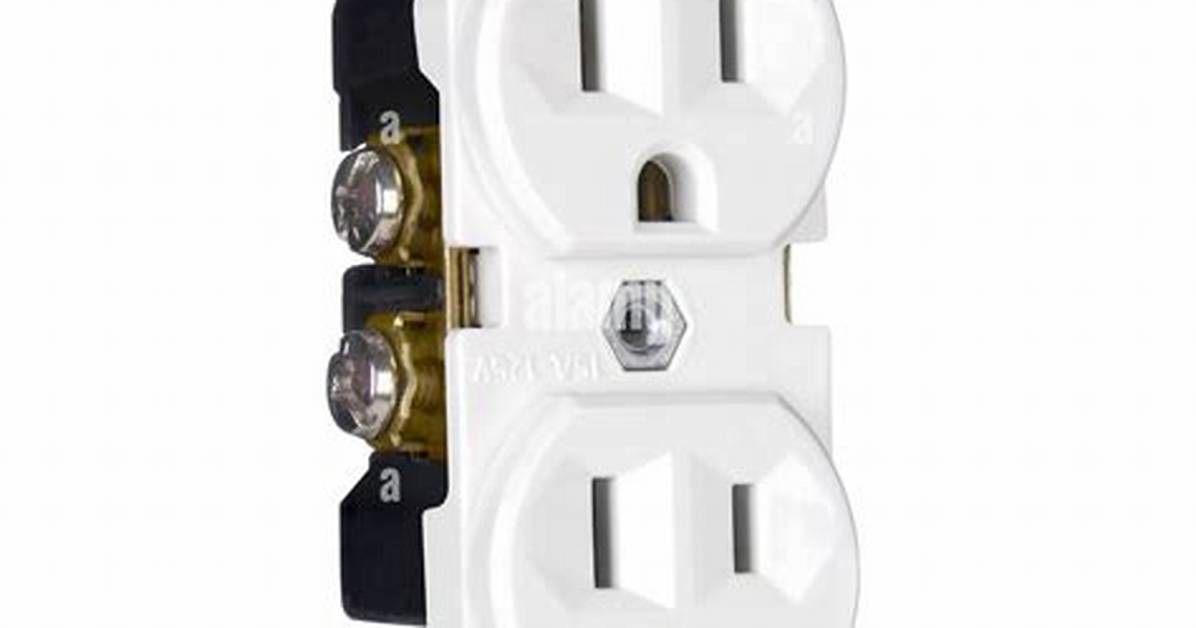

The modern 120-volt power outlet has three holes: two parallel rectangular slots—one connected to the “live” wire and one connected to the neutral wire—and a round hole for the ground wire. Most outlets are “duplex” receptacles, with two places to plug in electrical devices.
What are the advantages of 110v?
A 110-VOLT supply is less likely to electrocute you. A 220-volt supply can transmit the power more cheaply because a smaller current is needed, and so you can use thinner cables and/or lose less energy through heat generated in the cables.
Is 120V a standard?
You’ll often hear voltages in your home referred to as 110V, 115V, or 120V. This can be confusing but the bottom line is they are referring to the exact same thing. 120V is the AC voltage on a single hot wire in your home with respect to neutral (or ground).
When did 110V become 120V?
The US electric power network began at 110 volts. By the 1930s the voltage had crept up to 115. By the early 1950s at least 75 percent of the light bulbs sold in the USA were rated at 120 volts. As of 1984 the official standard US voltage was 120.
Is 100V same as 110V?
Re: 100 volts can be use to 110 volts? The voltage step down transformer must have enough capacity (wattage rating) to start/run the motor but they are heavy and large. 110V is fine for 100V rated appliances.
Can a dryer be plugged into a regular outlet?
The answer is no in all likelihood. Most dryers use a 240 volt circuit, while the common domestic containers are 120 volts. If plugged into this outlet, the dryer does not work.
What happens if you plug 110v into 220v?
It isn’t safe to plug 110v to 220v. Overvoltage can destroy the appliance as such if the appliance has a motor, the motor might simply wear out. If the device in question is a bulb, you may hear a crack before it stops working. A toaster might shock you with a flash and a few sparks.
Can I use 120V in 110V?
110 and 120-volt outlets are the same. They look the same and they work the same way. An appliance that can enter a 110v outlet will also enter a 120v outlet.
Why does the US use 110V?
Once AC was widely accepted as being superior to DC for power distribution, 110V became the standard for AC distribution presumably because it used the “safer” Voltage level of the DC system. After metal filament lamps became feasible, 220V became common in Europe because of the lower distribution costs.
Will 110V work in USA?
It will be just fine, as long as your electricity is running to US spec. It really can be anywhere from 110V to 120V +/- 5%.
What can you plug into a 120V outlet?
The common 15 amp, 120 volt household outlet (also called a receptacle) is used throughout North America. Lamps, vacuum cleaners, refrigerators, etc. plug into it. The outlet has two vertical slots; the U-shaped hole is for the green safety grounding wire.
Does 120V hurt?
High voltage currents of 500 V and more can cause deep burns, while low voltage currents consisting of 110–120 V can result in muscle spasms. A person can get an electric shock through contact with an electric current from a small household appliance, wall outlet, or extension cord.
