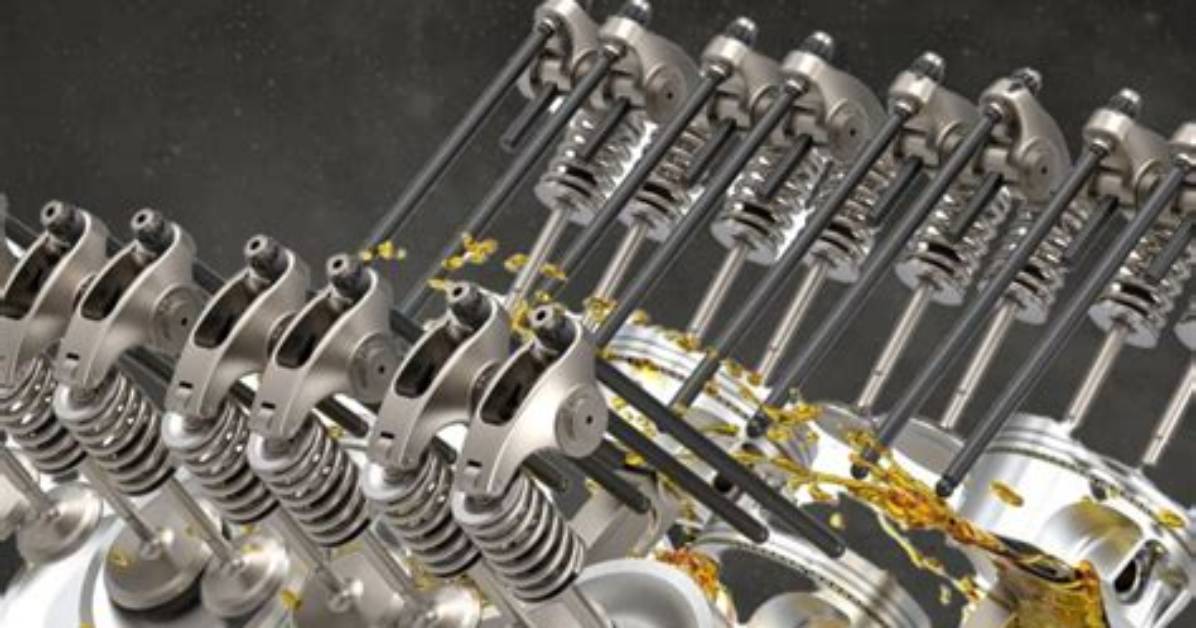

A pushrod is basically a metal tube designed to transfer the reciprocating motion of a valve lifter, riding on the camshaft, to the valve.
Are push rods still used?
The pushrod engine is a rather archaic piece of engineering, but automakers have stuck by it to this day. Notably, Fiat-Chrysler Automobiles and General Motors still shove pushrod V-8 engines under the hoods of hundreds of thousands of vehicles.
What is a push rod bearing?
The pushrod transfers the forces from camshaft to the valve. It is made of steel or cast iron. The working surface of the pushrod is subjected to hardening and grinding to increase their durability.
Are pushrod engines reliable?
Pushrod engines are also simple, with far fewer moving parts that could break over time. That’s a big part of the reason why Chevy’s small-block V8s are famous for their reliability and durability. This simplicity also means a pushrod engine is generally cheaper to produce than an equivalent overhead-cam unit.
Why can’t pushrod engines rev high?
Most pushrod designs feature two valves per cylinder. Any more than that becomes a complex design, which means the vast majority of mass-market engines feature just two valves. Without extra valves, the engine can’t take in enough air at higher rpm and it becomes starved for air. Thus, it can’t rev as high.
Is push rod better than overhead-cam?
A pushrod engine is more compact than an overhead cam design, which stacks camshafts and the cam drive system atop the cylinder head. In a 90-degree V8 design, this creates a bulky engine. Those parts add weight and the mass is high on the engine, raising the vehicle’s center of gravity.
What is the alternative to a pushrod engine?
Though overhead valve (OHV) engines have largely been replaced by overhead cam engines (OHC), there are still dedicated pushrod proponents out there, and certainly, both styles have their pros and cons.
Is pushrod engine better than overhead-cam?
Overhead camshaft engines can produce higher performance but typically cost more to build. Pushrod engines are cheaper to build and work on. Many engines use overhead camshaft designs because the optimum cylinder head design allows for increased fuel economy and performance too.
What causes rod bearings to fail?
Lack of lubrication is the number one cause of rod bearing failure. The root cause of the issue could be anything from a low oil level to a faulty oil pump. Clogged oiling passages can also lead to isolated bearing failures.
Can you hear Rod knock at idle?
Can You Hear Rod Knock On Idle? As the engine is not under load, rod knock is usually not heard while idling. When you turn the engine on and let off the gas, rod knock is usually the loudest. As the engine decreases rpm rapidly, the rods will start to knock.
What are the symptoms of a rod knock?
Rod knock typically sounds like a low-pitched knocking sound that can be heard deep in the engine. As the engine speeds up, the frequency of the noise will increase, but you can hear it at any engine speed. If you hear a type of knocking sound that disappears after the engine warms up, this is likely not rod knock.
Why are OHV engines better?
The OHV design is more suitable for larger V6 and V8 engines; you won’t find an OHV engine in a modern compact car. Advantages of an OHV engine include a lower cost, higher low-end torque and more compact size.
What makes an engine rev faster?
It is easier for the engine to generate more power with lower piston speeds, and the connecting rods and crankshaft feel less strained, leading to less fatigue and a higher flame propagation rate. Additionally, as with a wide bore, it increases the intake and exhaust valves, resulting in improved flow at high speeds.
How do I make my engine rev higher?
One of the simplest ways of creating a high revving engine is to start with an oversquare design (larger bore than stroke). There are multiple advantages of this type of design, but as far as engine RPM is concerned it keeps the piston speed relatively low.
Why are Nascar engines pushrod?
NASCAR engines have to run at an rpm of 10,000 and above and deliver a power of 750 hp and above. The long pushrods used in conventional cars will deflect resulting in the loss of power output of the engine. NASCAR engines use much shorter pushrods mounted high up in the block to avoid the loss of power.
Is the Chevy LT pushrod?
Rather than the original four-valve V-8, the new LT1 uses two pushrods for connecting two cylinders, similar to the design of the original small-block V-8.
Is the LS a pushrod?
The LS remains a pushrod, 2-valve V8 in a land of DOHC engines. Its bore centers, the distance between the centerline of each cylinder, has not changed since 1955.
