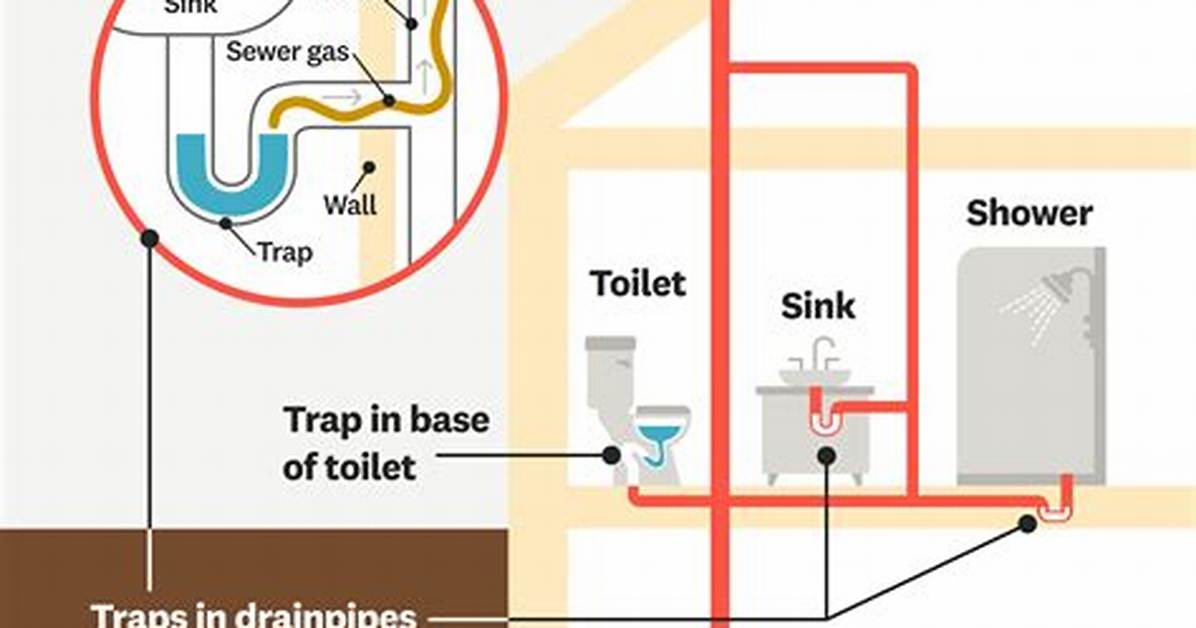

A plumbing vent, or a vent stack, regulates the air pressure within your home’s plumbing system. They’re comparable to drain pipes, which remove waste and water from your home; plumbing vents remove the gas and odor from your home. This also allows fresh air into the system, which improves pipe drainage and water flow.
Does every plumbing fixture need a vent?
Every plumbing fixture must also have an attached vent. Without a vent, negative pressure from water leaving the system can cause a siphon which empties the trap. The top of stacks must be vented too, via a stack vent, which is sometimes called a stink pipe.
Does a plumbing vent have to go through the roof?
The answer is, no, plumbing vents do not have to go through the roof. While roof stacks are the most common form of plumbing vents, you can run a plumbing vent through an exterior wall. The stipulation is that the plumbing vent has to run higher than the highest window of the house.
Where should my plumbing vent be located?
Vent pipes must be installed so they stay dry. This means that they should emerge from the top of the drainpipe, either straight vertically or at no less than a 45-degree angle from horizontal, so that water cannot back up into them.
What happens if plumbing is not vented?
Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.
Does a plumbing vent pipe have to be straight?
Plumbing vents need to be straight on the vertical. This is necessary to avoid any vapor locks from occurring. When there is a bend in the vent pipe, moisture accumulates and is trapped.
Will a sink drain without a vent?
A plumbing fixture like a sink can not function properly without a sink vent. When a drain pipe drains it creates a negative pressure in the sink drain; the negative pressure will pull the water out of the p-trap of the sink that’s draining and sewer gases can enter your home if a sink vent is not installed.
Will a shower drain without a vent?
Without a vent, your shower won’t drain correctly. While a shower usually requires a 2-inch drain pipe, the vent pipe must be either 1 1/2 inches or 2 inches depending on local requirements.
Can plumbing vent go out side of house?
To fulfill the second function, the vent must terminate at least a foot above the roof and, as Fantastic Viewpoint advises, at least 10 feet from open doors or windows on your house or on a neighboring house. You can pass the vent through a wall instead of through the roof, but it must still rise over the roof.
Does a toilet have to be vented outside?
“Does a toilet need a vent?” And the answer is yes, your toilet has to have a vent. For more information on the great importance of plumbing vents, read our plumbing vent article here. And the size of this vent pipe depends on your local plumbing code.
Can a shower and toilet share a vent?
So yes the shower can also be vented by the wet vent along with the toilet. There is one major stipulation when wet venting multiple fixtures when a toilet is one of them: the toilet must be the last fixture connected to the wet vent.
What is the difference between a sanitary tee and a vent tee?
A sanitary tee is a plumbing fixture that allows liquids to drain while also allowing the plumbing system to vent. The fitting resembles a normal tee fitting; the sanitary tee, however, when viewed from the side will have a definite downward sweep to the center inlet.
