The purpose of the king stud is to support the top plate along the ceiling in the absence of evenly spaced wall studs, and provide reinforcement to the opening defined by the header, sill, and jack stud.
What is a king stud in a wall?
A king stud is a vertical structural element that is placed off layout adjacent to a framed opening on each side, such as a door or window. It is the same length as the common studs in the wall and fastened in a similar manner.
What is the difference between a king stud and a stud?
The king studs are the same length and size of regular studs in a wall; the only difference is that they are positioned at the ends of a header so they don’t necessarily land at regular on-center stud locations.
What is a king stud metal framing?
King — This is essentially a standard top-to-bottom wall stud. However, since king studs frame the outside of openings like windows and doors, its surface has more function than a standard stud, which is only used for support.
Do I need a king stud?
King Studs
A header needs a full or king wall stud on each side of the opening, extending from the bottom wall plate to the top wall plate. These can be regular studs or special studs added if the regular spacing doesn’t conform to the door opening.
What is the difference between a king stud and a cripple stud?

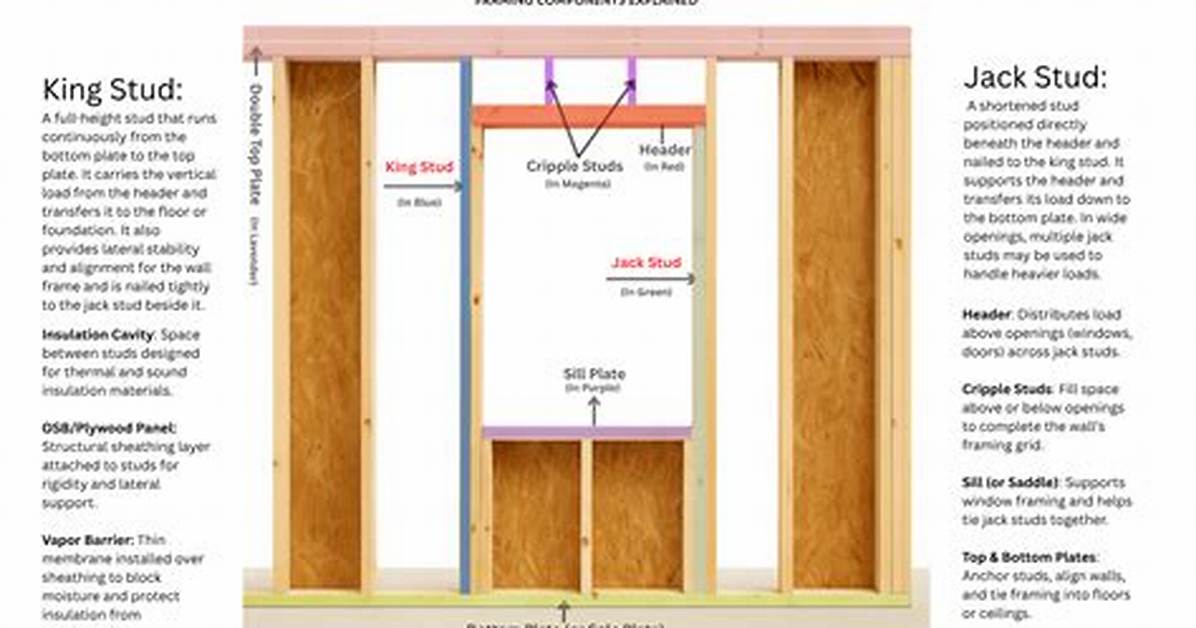

King stud: A stud that extends all the way from the sole plate to the top plate. This is the longest kind. Jack stud: A stud that extends from the sole plate to a header, and carries the structural load of the header. Cripple stud: Any stud that is none of the above.
What are the 4 types of studs?
Stud
King stud: On either side of a window or door, running from the bottom to top plate.Trimmer or jack: On either side of a window or door, running from the bottom plate to the underside of a lintel or header.Cripple stud: Either above or below a framed opening.Post or column: Group of studs fastened side-by-side.
How long is a king stud?
The first will be continuous from the top plate to the bottom plate. This is called a king stud. The next jack stud will be cut to the height of your door plus 2-1/2″ and minus the thickness of the bottom plate 1-1/2″ as it will rest on top of this. So your jack stud should be cut at 81″ for a 6-8″ tall door.
What is a top cripple?
In carpentry, the term “cripple” refers to a special-purpose wall stud or roof rafter. A cripple stud is located above a door or window or below a window. A cripple rafter runs from hip to valley on a roof or is cut short to allow for an opening such as a chimney or skylight.
Are king studs load-bearing?
To be the king stud, it must travel from plate to plate and be immediately next to the end of the header. Some walls support things above, and some don’t. Walls that support loads are called load-bearing or bearing walls. Walls that don’t carry a load are termed nonbearing.
What is rough opening size?
Framing rough opening sizes are really quite simple. Just add 2″ to the width of the actual door size. You should add 2-1/2″ to the height of the actual door. This will give you room to space the door frame off of the sub-floor. Now all you need to know is how to properly frame your door rough opening.
Are metal studs as strong as wood?
Wooden studs are stronger than metal studs.
They can support a lot more weight, being made from heavier material themselves. Wooden studs can be used on load-bearing walls, new cabinets, doorways, and frames to stay sturdy and strong.
Are steel studs cheaper than wood?
Cost-effective: While never as cheap as wood, steel studs are now only about 40-percent more expensive than wood studs. Lightweight: Steel studs are lighter to carry and store than wood because they are hollow.
Can metal studs be load bearing?
Heavier gauge metal studs are used in load bearing walls and structural applications such as exterior walls. Lighter gauge metal studs are used in non-load bearing applications such as some interior walls, half-walls, and partitions. Framing techniques for metal studs are similar to those of wood construction.
Are doors load-bearing?
Exterior walls are almost always load-bearing. Where there are windows and doors, the walls include beams, or headers, spanning across the tops of the openings. Posts on either side of the openings support the beams. A house will rarely have an entire stretch of an exterior wall that is non-load-bearing.
What is a door cripple?
Cripple Studs – short studs installed above a header or below a window sill or saddle. If the header is tall enough to reach the top plate no cripple studs are required.
Why is there a header above a door?
A header’s purpose is simple, yet critical: It supports the weight of everything built above the door opening, from a portion of the ceiling to roof framing and shingles in some circumstances. In addition, it bears the weight of the door underneath, when present. The header also helps keep the opening rigid and stable.
