In computing and electronic systems, binary-coded decimal (BCD) is a class of binary encodings of decimal numbers where each digit is represented by a fixed number of bits, usually four or eight.
What does BCD stand for binary?
B. D. (Binary Coded Decimal) The storage of numbers in which each decimal digit is converted into a binary number and stored in a single 8-bit byte. For example, a 12-digit decimal number would be represented as 12 bytes.
Why BCD is used?
BCD was commonly used for displaying alpha-numeric in the past but in modern-day BCD is still used with real-time clocks or RTC chips to keep track of wall-clock time and it’s becoming more common for embedded microprocessors to include an RTC. It’s very common for RTCs to store the time in BCD format.
What is the advantage of using BCD instead of binary code?
The main advantage of binary coded decimal is that it allows easy conversion between decimal (base-10) and binary (base-2) form. However, the disadvantage is that BCD code is wasteful as the states between 1010 (decimal 10), and 1111 (decimal 15) are not used.
What is binary PLC?
The binary number system is used by all computers, PLC/PAC’s and digital device. The binary number system is a base-2 number system, therefore there are two valid digits: 0 and 1. One digit of binary is called a bit. Bits are used in groups to represent all other numbers.
Why BCD code is called 8421 code?
The BCD8421 code is so called because each of the four bits is given a ‘weighting’ according to its column value in the binary system. The least significant bit (lsb) has the weight or value 1, the next bit, going left, the value 2. 2410 in 8 bit binary would be 00011000 but in BCD8421 is 0010 0100.
Is Ebcdic binary?
EBCDIC, in full extended binary-coded decimal interchange code, data-encoding system, developed by IBM and used mostly on its computers, that uses a unique eight-bit binary code for each number and alphabetic character as well as punctuation marks and accented letters and nonalphabetic characters.
What are BCD’s?

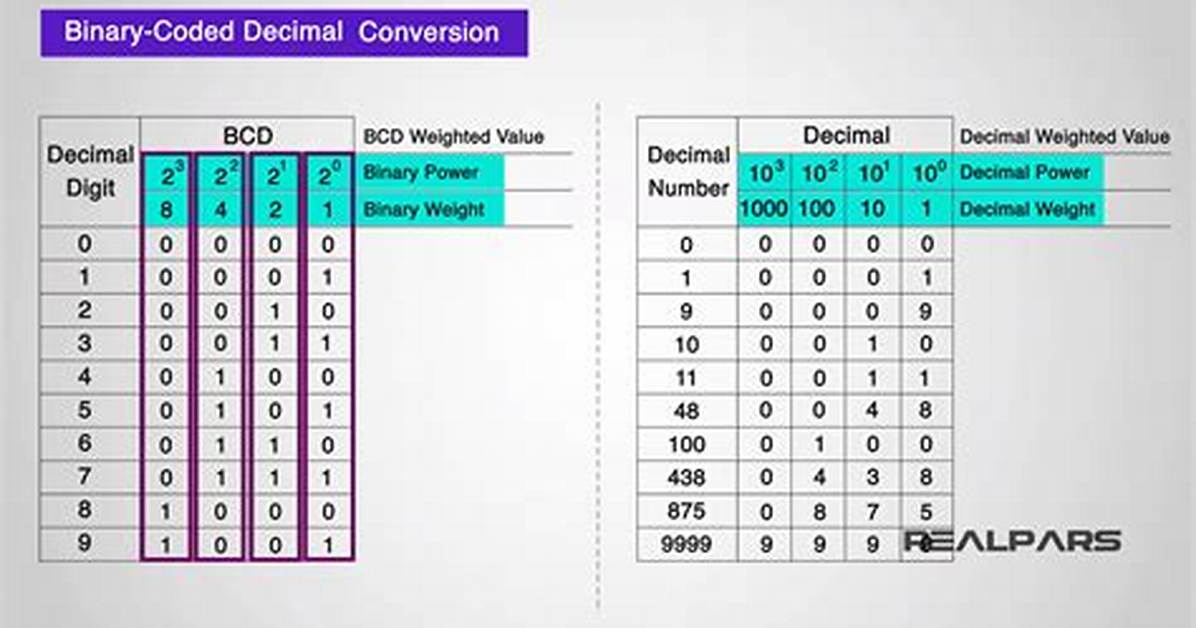

Binary coded decimal (BCD) is a system of writing numerals that assigns a four-digit binary code to each digit 0 through 9 in a decimal (base-10) numeral. The four-bit BCD code for any particular single base-10 digit is its representation in binary notation, as follows: 0 = 0000. 1 = 0001. 2 = 0010.
What are the disadvantages of binary system?
The Binary Number System are also ease of use in coding, fewer computations and less computational errors. The major disadvantage of binary number is difficult to read and write for humans because of large number of binary of a equivalent decimal number.
How many inputs and outputs does a BCD to decimal decoder have?
A BCD code applied to the four inputs, A to D, results in a high level at the selected one of 10 decimal decoded outputs.
Are binary devices faster than analog devices?
C. Binary means “having a discrete number of values.” Binary devices are much faster than analog devices.
