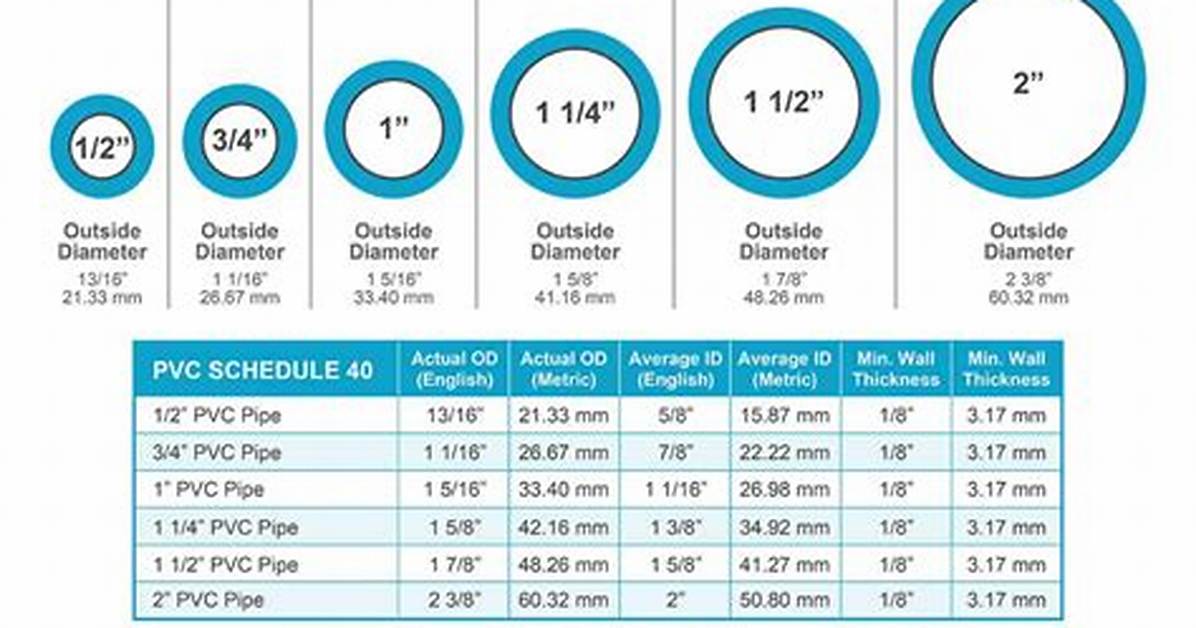

PVC Pipe is identified by the ID (Inside Diameter) and is referred to as a “nominal” size which means “in name only.” However this confuses people and most novices try to use the OD (Outer Diameter) to order parts. If you do this, measure the OD of your pipe and find it the 2nd column of the chart below.
What size does PVC pipe come in Australia?
The standard effective length of PVC pipes is 6m although other lengths, up to 12m, may also be available.
What is the inside diameter of 3/4 inch PVC pipe?
3/4 Inch diameter Clear 40 PVC pipe (Schedule 40), Cut to Length. PVC pipe is measured by the nominal inside-diameter (ID), not the outside-diameter (OD). Pipe has an approximate ID of 0.804 inch and an approximate OD of 1.050 inch, per PVC Schedule 40 Specifications.
What is the length of 1 PVC pipe?
PVC 1/2 Inch to 10 Inches Plumbing Pipe, Length of Pipe: 6 m.
How do I know what size PVC pipe I have?
If you purchased your PVC pipe from a hardware store, you can use the markings on the side of the pipe to tell you what size you have. It will normally indicate the size in decimal or fraction, close to where the manufacturer’s name is, such as ‘1.25’ (for 1-1/4″) or “3/4″ (for 3/4” obviously).
What is the OD of 1.5 PVC pipe?
1.5″ PVC pipe sch 40 has a nominal inside diameter of 1.5″ and an outside diameter of 1-7/8″.
What is the ID of 1 PVC pipe?
For example, a 1 inch PVC Pipe is actually 1.315 inches in outside diameter, and 1.029 inches in inside diameter. Fittings follow this same pattern, a 1″ fitting has a 1.315 inch opening to accept a 1 inch pipe, which actually measures 1.315 inches in diameter.
What is Schedule 40 PVC pipe in Australia?
Schedule 40 PVC pipes are made with thicker walls that stand up to low pressure applications. Whereas PVC DWV piping has thinner walls and is not made for pressurized applications. Another thing that can cause confusion sometimes is the end types.
What is the outside diameter of 3 inch PVC pipe?
The OD for 1/2″ PVC pipe is 0.840″ and the OD for 3″ PVC pipe is 3.500″.
Is PVC diameter inside or outside?
PVC Pipe sizes are so named by the measurement of the inside diameter (also called the bore) of the PVC pipe, and not the outside diameter. If you measure the outside diameter it will give you a larger reading than the actual PVC Pipe Size.
How long is a length of 1/2 PVC pipe?
1/2 Inch White PVC Pipe Schedule 40 2.5m length.
How long is a length of PVC?
PVC pipe is available in sizes that range from 1/8 inch up to 24 inches in diameter. Some of the most common sizes are ½ inch, 1 ½ inch, 3 inch, 4 inch, 6 inch, 8 inch and 10 inch PVC pipe. PVC piping is shipped in standard 10 foot or 20 foot length sections.
How long is a length of water pipe?
Single random pipe length is usually 18 – 25 feet plain end or 18 – 22 feet threaded and coupled pipes.
