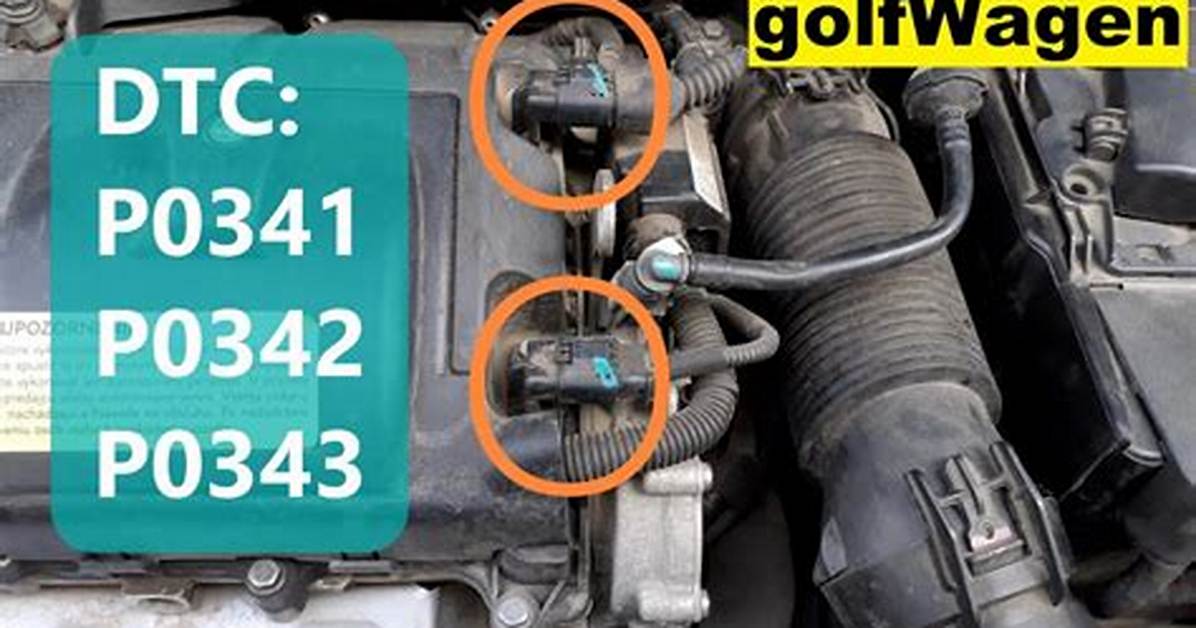

What caused my vehicle to trigger a P0341 trouble code?
Defective wiring and/or connector camshaft sensor.Defective wiring connection at PCM camshaft sensor input.Defective camshaft sensor.Damaged camshaft reluctor wheel.Spark system interference (uncommon on later model vehicles)
How serious is a camshaft position sensor?
As the camshaft position sensor weakens, the signal it transmits to the vehicle’s ECM also weakens. Eventually, the signal will weaken so much the signal will switch off, and so will the engine. This can happen while the vehicle is parked, or while you are driving. The latter can be a dangerous situation.
Where is camshaft position sensor a bank 1 located?
The camshaft position sensor can be found in the right side of the engine compartment at the rear of the valve cover.
What does code 341 mean?
P0341 is an OBD-II generic code that says the engine control module (ECM) detected the engine camshaft position sensor circuit is not within specifications. The sensor pulses do not correlate to the pulses of the crankshaft sensor.
What does code 342 mean?
The PCM (powertrain control module) sets code P0342 when it detects that the camshaft position sensor circuit on engine bank 1 is sending a reading that’s erratic or otherwise outside the manufacturer’s settings. The PCM then illuminates the Check Engine light to alert the driver of the problem.
How many camshaft sensors are in a car?
While the number can vary based on the age of your car, a new car should have four camshaft sensors, one for each camshaft. A camshaft sensor determines the exact position of your engine’s camshaft, helping your car keep your engine’s combustion running smoothly.
Can a camshaft sensor cause a car not to start?
Car Will Not Start: Over time, as the camshaft position sensor fails, the signal it sends to the engine control module weakens. When the engine no longer receives the signal, you will not be able to start your car.
When should a camshaft position sensor be indexed?
To establish camshaft sensor indexing on a vehicle with an adjustable sensor, all of the following are true, EXCEPT: attach a lab scope to the crankshaft position sensor signal wire. attach a lab scope to the camshaft position sensor signal wire. start the engine, observe the lab scope and compare the readings.
Should camshaft sensor have oil on it?
It’s a normal thing for a camshaft position sensor to have oil on it. The oil is necessary for its functionality. However, the sensor housing has to be in good shape to work perfectly. A crack in the sensor housing can result in oil contamination which could make the sensor fail.
Does camshaft position sensor affect oil pressure?
If the oil level is very low, to the point where the engine overheats however, yes. Excessive heat can cause a camshaft position sensor to fail. More likely in a “low oil level” situation is for the camshaft, lifters, or camshaft variable timing actuator to fail due to inadequate oil pressure and lubrication.
What happens if you unplug camshaft position sensor?
What Happens If I Unplug A Camshaft Position Sensor? The answer is yes. Neither the cam shaft (or crankshaft sensor) nor computer will begin operating if it doesn’t receive a signal from them, so we don’t want to damage or disable it. A broken cam bolt or gear will probably be the cause of the lack of signal.
What does camshaft position sensor A circuit Bank 1 or single sensor?
Diagnostic trouble code P0341 stands for “Camshaft Position Sensor “A” Circuit Range/Performance (Bank 1 or Single Sensor).” It is triggered when the powertrain control module (PCM) detects a problem with the signal being sent by the camshaft position sensor.
What does the code P0016 mean?
When a P0016 OBD-II generic code is triggered, it alerts the driver that the camshaft position sensor (CMP) for bank 1, which detects camshaft rotation, is not corresponding to the crankshaft position sensor (CKP) signal. The CMP relays the information to the vehicle’s Powertrain Control Module (PCM).
What is code P0366?
P0366 code definition
The P0366 code is defined as an incorrect voltage reading from the camshaft position sensor circuit, specifically for the engine bank 1 camshaft sensor B.
What is code P0011?
P0011 is the OBD-II generic code indicating the engine control module (ECM) has determined that the bank 1 intake camshaft is more advanced than what the ECM has commanded it be. This over-advanced condition could be during advancing or retarding of the camshaft timing.
How do I fix the code P0017?
What repairs can fix the P0017 code?
Resetting the engine fault codes and verifying that the problem is still occurring.Replacing the camshaft position sensor on a failed camshaft bank.Repairing or replacing the wiring connection to the camshaft sensor or the OCV.Replacing the Engine Control Module.
