This is called “slash notation”. There is a total of 32 bits in IPv4 address space. For example, if a network has the address “192.0. 2.0/24”, the number “24” refers to how many bits are contained in the network. From this, the number of bits left for address space can be calculated.
How do you read a 24 IP range?
About Slash Notation
Convert the subnet mask to binary. In this example, the binary representation of 255.255. 255.0 is: Count each 1 in the subnet mask. In this example, there are twenty-four (24).Write the original IP address, a forward slash (/), and then the number from Step 2. The result is 192.168. 42.23/24.
How do you calculate subnets?
The number of subnets is found by counting the number of bits by which the initial mask was extended, also known as the subnet bits. Our initial address allocation was 192.168. 0.0 with a mask of 255.255. 0.0.
How do I subnet an IP address?
255.248 or /29.
Step 1: Convert to Binary.Step 2: Calculate the Subnet Address. To calculate the IP Address Subnet you need to perform a bit-wise AND operation (1+1=1, 1+0 or 0+1 =0, 0+0=0) on the host IP address and subnet mask. Step 3: Find Host Range. Step 4: Calculate the Total Number of Subnets and.
What does CIDR stand for?
CIDR (Classless Inter-Domain Routing) — also known as supernetting — is a method of assigning Internet Protocol (IP) addresses that improves the efficiency of address distribution and replaces the previous system based on Class A, Class B and Class C networks.
What is mean by 8 16 and 24 after write at the end of an IP?
That means a “/16” leaves the remaining 16 bits (or last two numbers) free to use for specific addresses and a “/8” the remaining 24 bits to use. For better clarification, here are all the possible addresses for each: 10.0.0.0/24: Includes ranges 10.0.0.1–10.0.0.254 (can assign the last number)
What is my subnet mask?
On Windows
Go to Control Panel > Network and Sharing Centre. Click on your network name and then click Details. You will find the subnet mask along with other network details.
What is a 29 subnet?

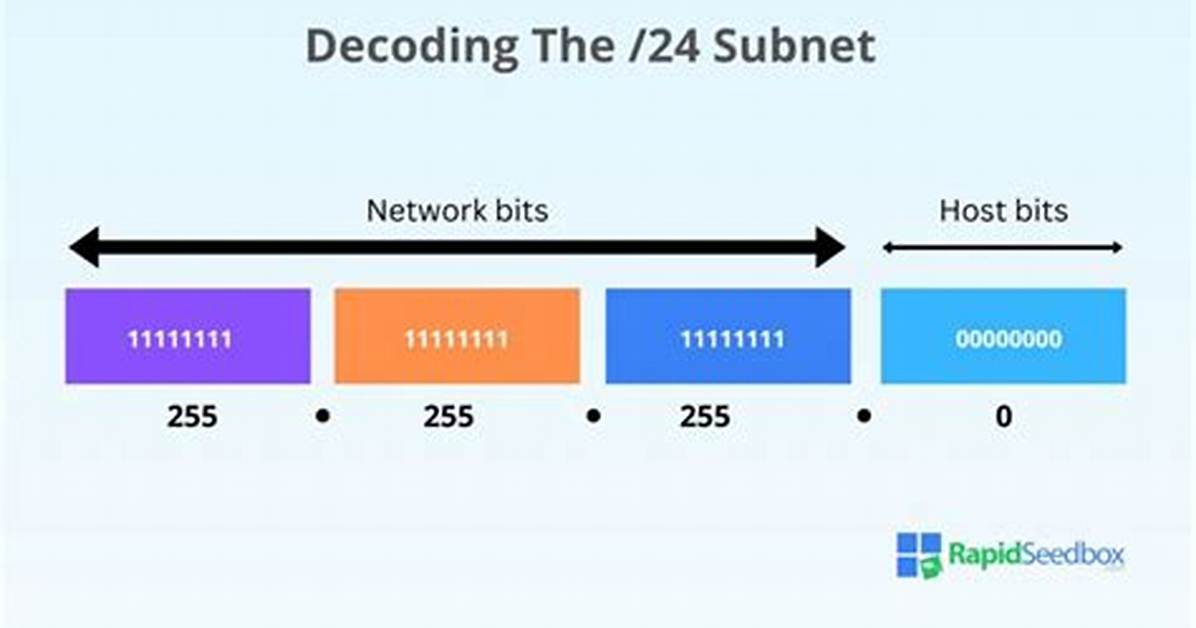

The /29 means that there are 29 bits set to one in the subnet mask. The remaining three bits are set to zero. So, for example, /24 is 255.255.255.0 (each of the 255s in decimal corresponds to 8 bits in binary: 11111111). It’s just a shorthand.
What is a IP subnet?
A subnet, or subnetwork, is a segmented piece of a larger network. More specifically, subnets are a logical partition of an IP network into multiple, smaller network segments. The Internet Protocol (IP) is the method for sending data from one computer to another over the internet.
What is a 30 subnet?
The /30 signifies that the network part of the address is 30 bits long, leaving 2 bits for the host part which equals 4 available addresses.
