> The difference between eutectic and peritectic is that eutectic is describing the thermodynamic equilibrium conditions where a liquid coexists with two solid phases while peritectic is describes the isothermal reversible reaction of a liquid phase and a solid phase to form a second solid phase during cooling.
What is peritectic reaction example?
Typical examples of systems with peritectic solidification include Fe-C (steel), Fe-Ni, Cu-Sn (bronze), Cu-Zn (brass), Al-Ti, lanthanide mag- nets (Nd—Fe-B) (Umeda et al., 1996), and ceramic superconductors (Y-Ba-Cu-O) (Izumi and Shiohara, 2005). Some of these materials have exotic applications.
What is a peritectic temperature?
Peritectic point – The point on a phase diagram where a reaction takes place between a previously precipitated phase and the liquid to produce a new solid phase. When this point is reached, the temperature must remain constant until the reaction has run to completion. A peritectic is also an invariant point.
What is peritectic solidification?
Peritectic steel solidification occurs in two distinct stages involving liquid (L), delta-ferrite (δ), and austenite (γ): the peritectic reaction (L + δ → γ) followed by the peritectic transformation (δ → γ).
What is peritectic alloy?
SIMIlAr to the eUteCtIC group of invariant transformations is a. group of peritectic reactions, in which a liquid and solid phase decomposes. into a new solid phase on cooling through the peritectic isotherm. the.

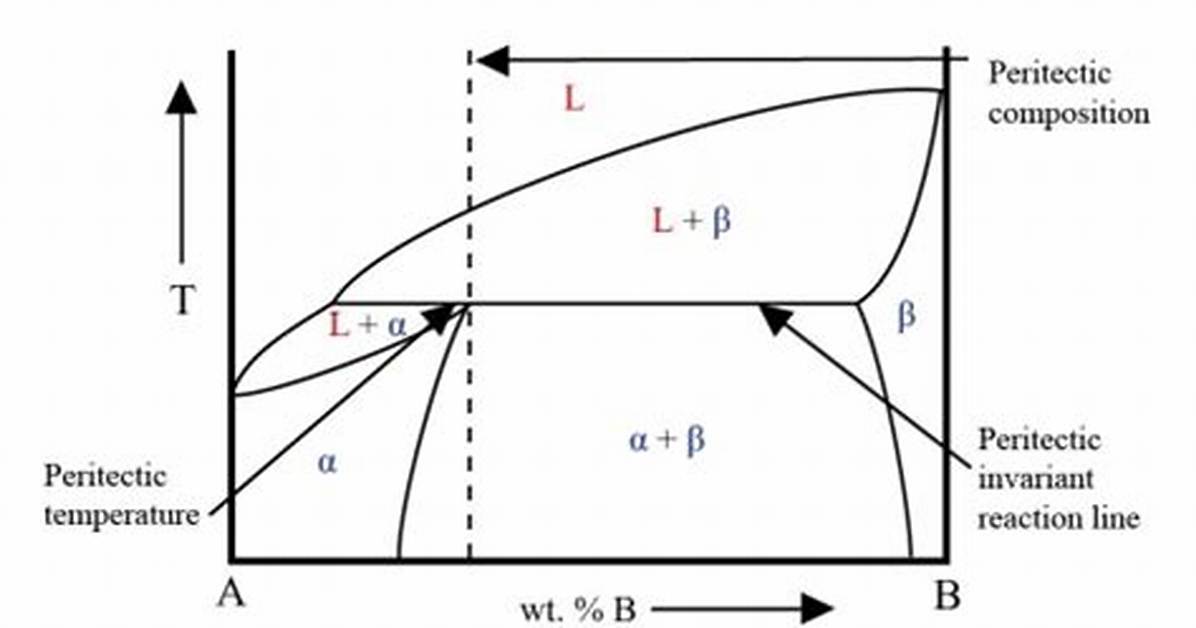

What is peritectic phase diagram?
Peritectic point – The point on a phase diagram where a reaction takes place between a previously precipitated phase and the liquid to produce a new solid phase. When this point is reached, the temperature must remain constant until the reaction has run to completion. A peritectic is also an invariant point.
What is peritectic reaction?
A peritectic reaction is a reaction where a solid phase and liquid phase will together form a second solid phase at a particular temperature and composition – e.g. Liquid + alpha –> beta.
Which of the following are peritectic system?
Which of the following are Peritectic systems? Explanation: Peritectic systems – Pt – Ag, Ni – Re, Fe – Ge, Sn-Sb (babbit).
What is peritectic steel?
Peritectic steels are ultra low carbon steels that fall into the phase change boundary, namely upper phase, that is it is directly influenced by alloying elements which can make this high tensile, high shrink steel difficult to cast for the automotive industry, great care has to be taken in mould powder choices, and
In what way can the peritectic transformation be represented?
A peritectic reaction occurs if the average composition of the alloy crosses this line during either slow heating or cooling. It can be represented by the equation α p + L p ↔ β p .
What is eutectic structure?
A eutectic system is a homogeneous, solid mixture of two or more substances that form a super-lattice; the mixture either melts or solidifies at a lower temperature than the melting point of any of the individual substances. The phrase most commonly refers to a mixture of alloys.
What is eutectoid alloy?
A eutectoid alloy is similar in behavior to a eutectic alloy. A eutectic alloy is characterized by having a single melting point. This melting point is lower than that of any of the constituents, and no change in the mixture will lower the melting point any further.
What is Monotectic system?
The monotectic reaction occurs at temperature Tm and composition Xm and the eutectic reaction at Te and Xe’ The separation of the high temperature liquid phase L into two phases is bounded by the miscibility gap, the highest point of which is termed the consolute point.
