FIP means Female Iron Pipe. MIP is Male Iron Pipe. As the Pure Water Gazette points out, sometimes FIP is called FPT or Female Pipe Thread. And MIP is called MPT or Male Pipe Thread. To make matters worse, sometimes they are referred to as NPT or National Pipe Thread.
Is FIP same as NPT?
FIP Female Iron Pipe (interchangeable with NPT) FIP, Female Iron Pipe, or Female International Pipe- Similar to FPT, FIP connect NPT pipe together with internal threads.

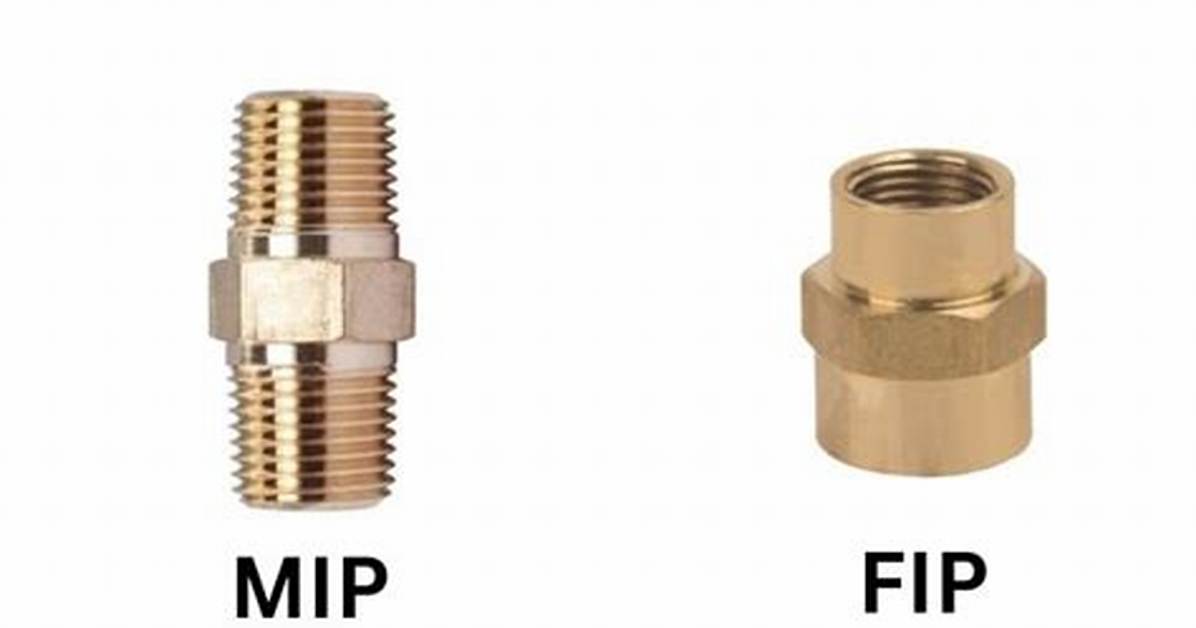

What is the difference between FIP and MIP fittings?
A MIP fitting is threaded on one side, while a FIP fitting is threaded on both sides. A MIP has male threads that screw into the female connections of other plumbing fixtures or equipment, while a FIP has female connections that are designed to be screwed into the ends of pipes.
Can you use NPT with FIP?
Most pipe thread types are not interchangeable. NPT, MIP, and FIP work together but do not mate with any other types.
What is FIP measurement?
An FIP is a “female iron pipe,” or one in which the threads are on the inside.
What thread is a garden hose?
The US standard was defined by NFPA 1963, “Standard for Fire Hose Connections”, then later by ANSI-ASME B1. 20.7, which specifies 1+1⁄16 inches (27 mm) diameter straight (non-tapered) thread with a pitch of 11.5 threads per inch (TPI).
Can NPT and NPS be used together?
Sharply angled threads are very critical to joint being tight with no leaks. Thread sealant or tape is typically required to complete the seal. Straight Pipe Threads need a gasket or O-ring to create a seal. While NPT and NPS threads will engage, they do not seal properly with each other.
Is NPT male or female?
NPT has a tapered male and female thread which seals with Teflon tape or jointing compound. Pipe threads used in hydraulic circuits can be divided into two types: Jointing threads are pipe threads for joints made pressure tight by sealing on the threads and are taper external and parallel or taper internal threads.
Do MIP fittings need Teflon tape?
Though threaded metal piping narrows at the ends to create a tighter seal, it is still necessary to use a sealant to ensure a safe connection. Though it is common to use pipe dope (a lubricating joint compound) to seal the threads of a MIP and FIP connection, many professionals also use Teflon tape.
What is NPT vs MIP?
Other Notes About Thread Sizing
As previously mentioned, NPT indicates the defined standard from ANSI – but many people use MPT/MIP and FPT/FIP interchangeably. MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads.
How do you connect galvanized pipes without threads?
You can take several approaches on how to connect unthreaded galvanized pipes. You can try to thread the pipe or use pipe thread tape to create a bond between the two pipes. Another alternative would involve welding the pipes or connecting them using coupling.
Is FIP the same as IPS?
Types of piping categorized by the IPS system for faucets include a female IPS, often called female iron piping, or FIP, which has internal threads for joining piping together. The other type — male iron piping or MIP — contains threading on the outside of the pipe.
Are NPT threads self sealing?
The thread type National Taper Pipe (NPT) is a tapered or conical pipe thread which is used for pipe fittings. The internal and external threads of the NPT are conical. The NPT thread is self-sealing only at low pressure and when it is not exposed to strong temperature fluctuations.
What is FIP water supply line?
FPT or FIP (Female Pipe Thread): Female threaded fitting with the threads on the inside. MPT or MIP (Male Pipe Thread): Male threaded fitting with threading on the outside. Compression: Fitting that attaches to a standard compression thread on the valve.
