Standard lengths are 10′, 12′ and 14′. Other lengths available upon request. Conventional metal studs are available in 25, 22, 20, 18, and 16 gauge steel for your convenience (1-5/8″ available in 20, 22 and 25 gauge only). Structural studs are also available.
What are the actual dimensions of a 2×4 metal stud?
A 2×4, for example, is really 3-1/2″ x 1-1/2″. Metal framing on the other hand, is referenced by actual size. As a result you will get exactly what you order. If you request a 3-5/8″ steel stud, you will receive a full 3-5/8″ width.
How many inches apart are metal studs?
Just like wood framing, metal studs should be spaced 16 or 24 inches apart. This allows for the installation of wallboard and other wall sheet products that come in standard sizes. After installing the floor and ceiling tracks, each metal stud is measured, and the length is cut to fit.
What is the actual size of a 2×6 metal stud?
For Wall Framing

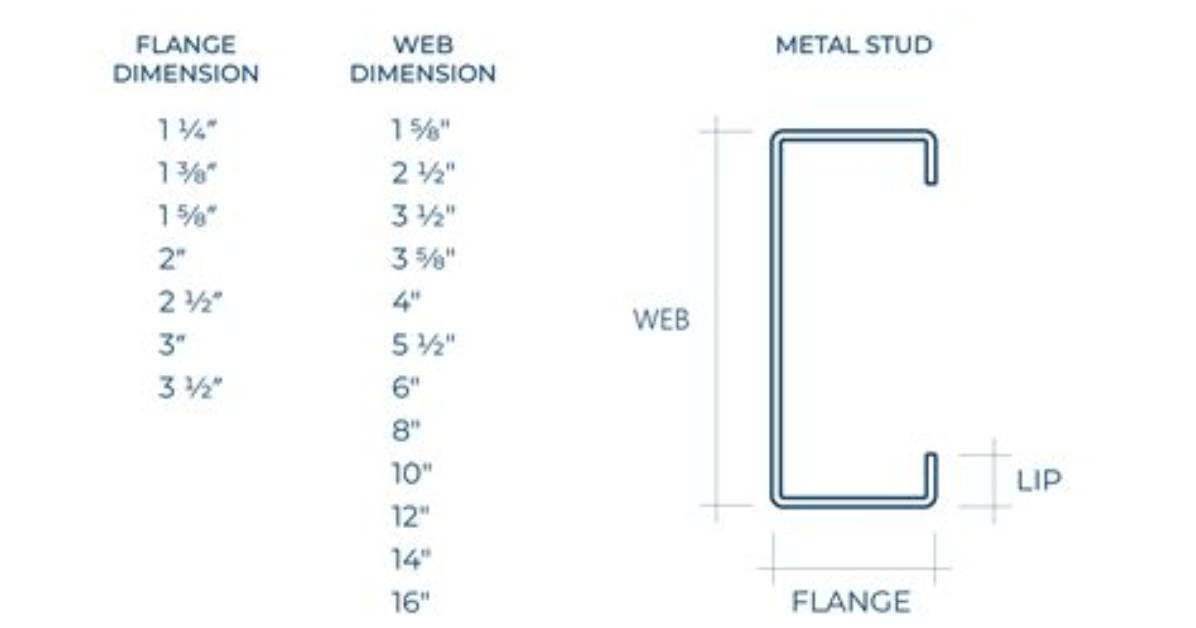

A 600S metal stud measures 6 inches on its web, or long face. Thus a metal stud taking the place of a two-by-four measures 1 5/8 by 4 inches, and a two-by-six, 1 5/8 by 6 inches — slightly fatter but the same depth as their wood equivalents.
How are steel studs measured?
Determine how far apart the steel studs will be located and divide the linear feet of the perimeter by that number. Steel studs are typically located 16 inches apart so divide the perimeter in inches by 16. If the perimeter is 60 feet, or 720 inches, then 45 steel studs will be needed.
What are the most popular metal stud widths?
Metal Stud Sizes
The most common size stud is a 3 5/8″ wide stud. Combined with a layer of 5/8″ gypsum wall board on both sides will give a 4 7/8″ thick wall.
Are metal studs 16 on Center?
They’re always spaced either 16 or 24 inches on center (measured from center to center) along the wall and run between the floor and ceiling.
What is code for stud spacing?
1. Utility grade studs shall not be spaced more than 16 inches (406 mm) on center, shall not support more than roof and ceiling, and shall not exceed 8 feet (2438 mm) in height for exterior walls and load-bearing walls or 10 feet (3048 mm) for interior nonload-bearing walls.
Are metal studs the same size as wood?
No, metal studs are referenced by actual size, not in nominal terms (like you’re used to with wooden lumber). For example, a 2×4 is actually 3-1/2 inches by 1-1/2 inches.
How thick is a 6 metal stud?
This tells you the stud is 6 inches wide with a 1-5/8 inch (1.62 inch) flange and is 16-ga (54 mils) thick.
Can you splice metal studs together?
In cold-formed steel construction, these modifications often include the need to splice two studs together in order to attain a desired span or wall height. In any case where a splice is required, the strength of the splice must be evaluated to confirm it is adequate to resist the experienced loads.
