The axis of the ECG is the major direction of the overall electrical activity of the heart. It can be normal, leftward (left axis deviation, or LAD), rightward (right axis deviation, or RAD) or indeterminate (northwest axis). The QRS axis is the most important to determine.
What is normal left axis?

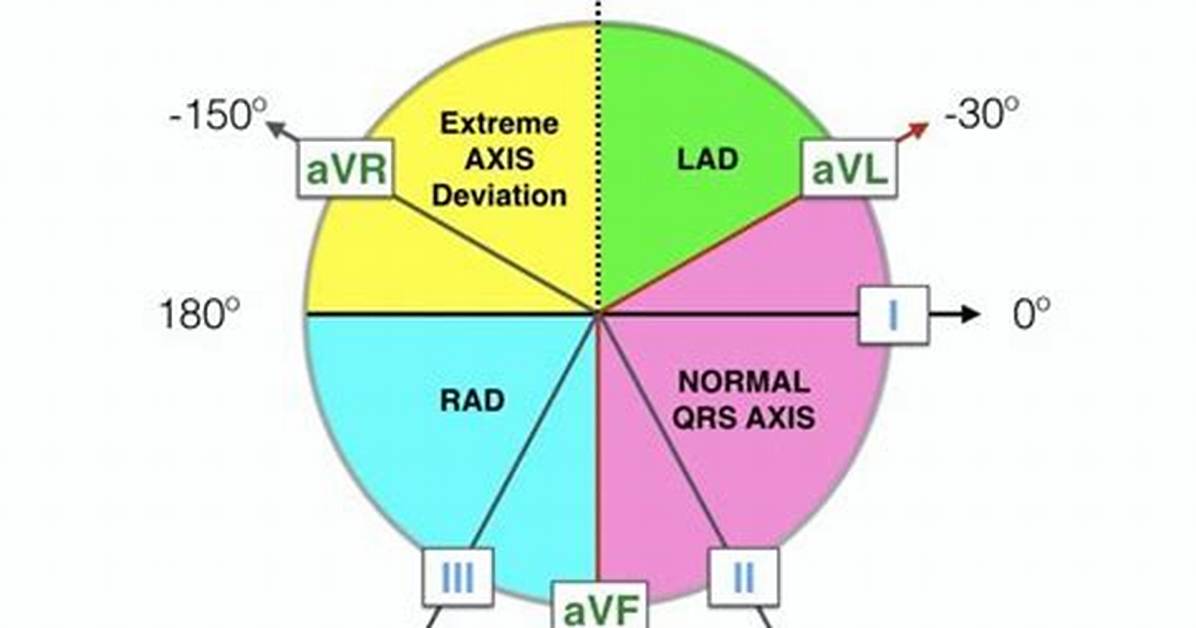

In a normal axis, QRS is between -30° and +90°. In contrast to that, left axis deviation (LAD) is defined as QRS axis between −30° and −90°, and right axis deviation is defined as QRS axis greater than +90°, while extreme axis deviation occurs when QRS axis is between -90° and 180°.
What is abnormal P axis?
Abnormal P-wave axis is defined as any value outside 0–75° (Figure 1) (31).
What is abnormal ECG?
An abnormal ECG can mean many things. Sometimes an ECG abnormality is a normal variation of a heart’s rhythm, which does not affect your health. Other times, an abnormal ECG can signal a medical emergency, such as a myocardial infarction /heart attack or a dangerous arrhythmia.
What is an abnormal left axis deviation?
Left axis deviation (LAD) is the most common “abnormality” in adults, occurring in over 8% of patients. It can be part of the criteria for LVH, but in isolation it has little significance. Marked LAD (45% or more) is calledleft anterior hemiblock orleft anterior fascicular block.
Why is cardiac axis important?
Whenever the direction of electrical activity is away from a lead you get a negative deflection in that lead. Cardiac axis gives us an idea of the overall direction of electrical activity.
How do you know if ECG is normal?
If the test is normal, it should show that your heart is beating at an even rate of 60 to 100 beats per minute. Many different heart conditions can show up on an ECG, including a fast, slow, or abnormal heart rhythm, a heart defect, coronary artery disease, heart valve disease, or an enlarged heart.
What are the most common ECG abnormalities?
The most common ECG abnormalities were T-wave abnormalities. Average heart rate corrected QT interval was longer in women than men, similar in whites and blacks and increased with age, whereas the average heart rate was higher in women than men and in blacks than whites and decreased with age.
How do you read ECG recordings?
Standard ECG paper allows an approximate estimation of the heart rate (HR) from an ECG recording. Each second of time is represented by 250 mm (5 large squares) along the horizontal axis. So if the number of large squares between each QRS complex is: 5 – the HR is 60 beats per minute.
How serious is left axis deviation?
In conclusion, among patients with left bundle branch block, those with left axis deviation have a greater incidence of myocardial dysfunction, more advanced conduction desease and greater cardiovascular mortality than those with a normal axis.
Does left axis deviation mean heart disease?
The results were that the development of left axis deviation in men 40 to 59 yr of age, independent of blood pressure is a significant predictor of ischemic heart disease events that are usually manifest 5 to 10 yr after the onset of this electrocardiographic abnormality.
Is right axis deviation normal?
[12,13,14] Right axis deviation can be considered a normal variant or can be associated with a right bundle branch block, causes of right ventricular hypertrophy and infarction of the left side of the heart, among the more likely differential diagnoses.
