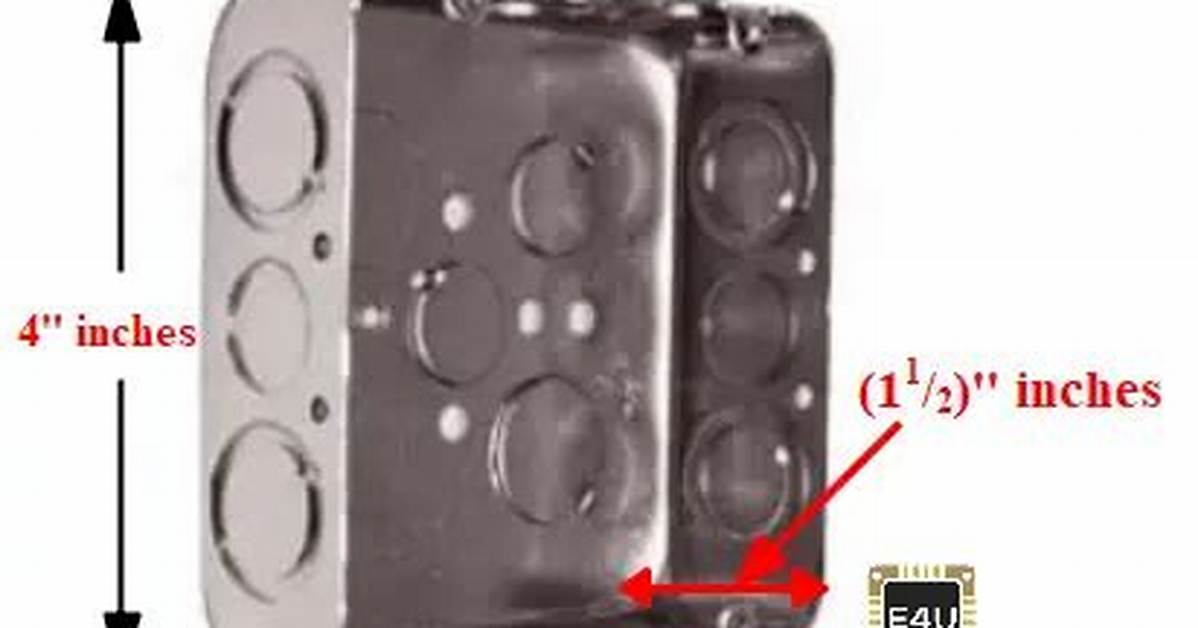

A 1900 Electrical Box is defined as a standard 4 inches (4”) square electrical switch box which is the combination of a gas and electrical box. It is the most commonly used box when a simple switch box is not big enough.
Why is a 4 square box called a 1900 box?
This electrical box is usually called a 1900 Box because that was the original part number from Bossert almost a hundred years ago. It is the most common box used when a simple SwitchBox is not large enough.
What is a 1900 box used for?
Top Definition
This electrical box is usually called a 1900 box because that was the original part number from Bossert almost a hundred years ago. Called a 4″ box because of its 4″ width, it is the most common box used when a simple switchbox isn’t big enough.
What are the 4 types of electrical boxes?
Types of Electrical Boxes
Handy Box: Mounts on the surface of a wall. Junction Box: Wires connect only to each other, never to a switch, receptacle or fixture. New Work Box: Installed as part of a new construction project. Old Work Box: Also called a “remodeling box.” Installed on drywall after it has been hung.
What is an 8b box?
4″ octagon outlet box 1-1/2″ deep or 2-1/8″ deep and varying K/O sizes.
What size is a standard electrical box?
Standard rectangular boxes, also known as “single-gang” or “one-gang” boxes, are typically used for single light fixture switches and outlet receptacles. They are generally 2 x 3 inches in size, with depths ranging from 1 1/2 inches to 3 1/2 inches.
How many wires can you put in a 4 square box?
For example, a 4-inch square metal box that is 11/2 inches deep contains six unbroken 12 AWG conductors.
What is a mud ring for electrical?
A mud ring on a electrical box is a cover with an opening for a switch or outlet and the edges protrude through the drywall or plaster to the outer surface of the wall.
What is a cut in electrical box?
Cut-in boxes (also known as remodeling boxes) are the type of electrical boxes that you use when you are working with an already finished wall. Usually, the biggest problem that you are faced with when doing this kind of work is that different methods are used for installation depending on the type of cut-in box.
What is a duplex outlet?
A duplex outlet provides space for two electrical receptacles, leaving you room to plug in two devices. A duplex outlet is one of the most common outlets found in homes and businesses, and its design will protect you from electrical shock hazards.
What are the different electrical boxes?
What To Know About The Various Types Of Electrical Boxes
Plastic and metal electrical boxes. Most boxes are either made of plastic or metal. Rectangular boxes. Two-gang, three-gang, and four-gang boxes. Round pan boxes. Junction boxes. Round and octagon boxes. Ceiling fan-rated boxes.
What is the difference between old work and new work electrical boxes?
New work boxes, designed to be installed just after the wall is framed but before the surfaces are finished with drywall. They attach to studs. Old work (also called retrofit) boxes, designed to be installed after the walls are finished and are used during remodeling projects. They attach to drywall or plaster.
What is the electrical box outside called?
Known as the electrical panel, breaker box, fuse box, or service panel, this piece of equipment is the next device in line. This panel’s job is to distribute power throughout your home and disconnect power from the incoming feed.
WHAT ARE Octagon electrical boxes for?
An octagon electrical box is a common type of box that is typically used for installing light fixtures on a wall or ceiling. They are usually made of metal and come in standard sizes of 4 x 4 inches, and in depths of 1 1/4, 1 1/2, and 2 1/8 inches deep.
What type of electrical box that fits between ceiling joists?
Braces and Bar Hangars – Lights and other devices can be mounted between joists using braces and bar hangars, so they can be installed in different locations with relative ease.
