The ABS Rings are usually located around the driveshafts or the wheel hubs on most car models. The front rings are often installed on the driveshafts if you have a front-wheel driven cars. Otherwise, you will most likely find them around the wheel bearings or wheel hubs.
What happens when a tone ring breaks?
A faulty ABS ring provides a false signal, which causes the car’s electrical control unit to start the anti-lock braking system just before the car stops or even switch it off completely, reducing control of the car and extending the braking distance.
How does tone ring work?

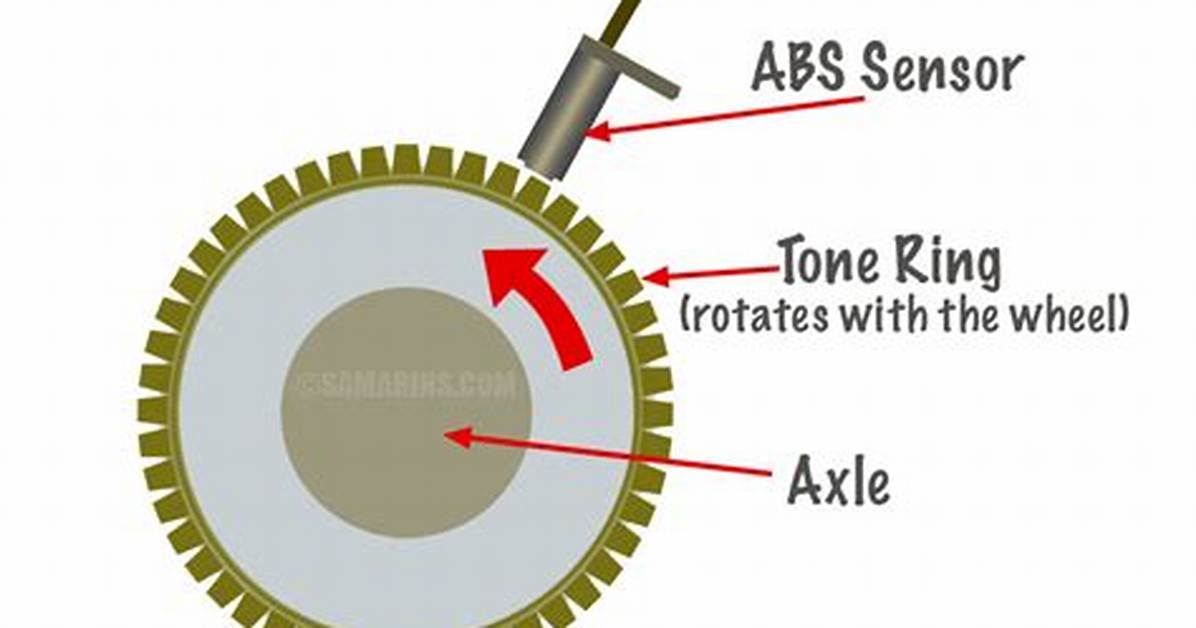

A tone ring, also called a reluctor ring, is a notched or toothed ring that’s used in conjunction with a sensor to determine the number of revolutions or speed of revolutions.
How do I test my abs ring?
Jack up that side so the rear wheel you want to check is off the floor. Remove the 3 bolts and remove the wheel from the car. Double check the other wheels are chocked sufficiently before you continue. Look over the top of the hub at the ABS ring, slowly rotate the wheel hub to make the ABS ring spin.
Why is my ABS light on after changing wheel bearing?
This is due to the difference in signal strength from the wheel speed sensors (WSS) side to side. The problem is usually associated with air gap difference or wiring and/or connector integrity. In many cases, removing the WSS from the other side, if possible, and cleaning the mounting surface may repair the problem.
What is a Reluctor ring?
The reluctor ring is mounted on the crankshaft so that as the crankshaft rotates the magnetic sensor is triggered by notches in the reluctor ring. The magnetic sensor provides position information to the electronic control module, which governs ignition timing.
What can a faulty ABS sensor cause?
Loss of Anti-lock Brakes
When an ABS wheel sensor fails, it causes the anti-lock brakes to be inoperable. Anytime a fault is noticed, the system triggers an alert, and the ABS warning light comes on. From here, the vehicle’s electronic control module stops receiving valuable data from the sensor.
Can I clean ABS sensor with brake cleaner?
Using Cleaning Solutions: Avoid using any type of chemical cleaning solution on the ABS sensor. It could damage the sensor, meaning you’d have to replace it with a new one. If you need to, use warm, soapy water to scrub away dirt from the sensor—just make sure that the sensor dries completely before you replace it.
Where are the ABS sensors?
The ABS sensor is typically located in each wheel hub/rotor on a four channel ABS system. Some rear wheel drive applications have the sensor mounted in the rear differential.
Can you drive with a cracked tone ring?
It is completely safe to drive except that you will not have either anti-lock brakes (we got by for decades without that) or 4WD.
What is a tone wheel on a car?
The tone wheel is part of the sensor that makes up your anti-lock brake system. As the tone wheel begins to break down over time, the sensor stops generating a usable signal, which can lead to false activations of your ABS system and a less stable ride for you.
Are tone rings magnetic?
The tone ring is connected to the wheel hub or driveshaft. Inside the sensor, a pole pin is surrounded by a winding and connected to a permanent magnet. The magnetic effect produced by the magnet extends to the tone ring.
