Since Error E74 denotes that the power to the Rh wire is hindered, your first step should be checking whether the Rh wire is in place or not.
How do I fix Nest error E74?
How do I fix Nest error E74? Check and repair loose connections on your Nest thermostat to fix an E74 error or no power to the Rh wire issue. If it renders ineffective, clear up the drain pipes and check if the connected condensate pump is clogged. Get it cleaned, and it should fix the issue.
Should I use RC or RH for Nest?
Here are some general guidelines: An R wire can go into a Nest Learning Thermostat’s Rc or Rh connector. The Nest Thermostat E only has an R connector, which is typically where an R wire would go.
Where is the RH wire?
The Rh wire connects to your heating system as opposed to your cooling system. This wire may be red without an H attached to it, depending on if you have a dual transformer setup. The Rh wire connects to the RH terminal on your thermostat.
How do I clear the error code on my Nest thermostat?
How to reset or restart your Nest thermostat. Equipment on your thermostat and record your system wires, your heating type, and your Safety Temperature settings. Press your thermostat ring to open the Quick View menu. Turn the ring to Reset and press to select.
Does Nest thermostat have a battery?
The Nest Thermostat receives power from your HVAC system. It also uses 2 AAA alkaline batteries as a backup, or to supplement if your system can’t deliver enough power.
Is r the same as Rh?
R , Rh , and Rc are all the same, but not. In general terms, the R terminal is where you connect the signal voltage source. In low voltage controlled systems, there will be a step down transformer that provides the power to the control circuitry.
How long does Nest thermostat battery last?
Nest thermostats get their power from the home’s HVAC system. But it also has 2 AAA backup batteries to supplement power if the HVAC system’s power is insufficient. The lithium-ion battery of the thermostat will last around 2 to 3 years, which is equivalent to 300 to 500 full charges.

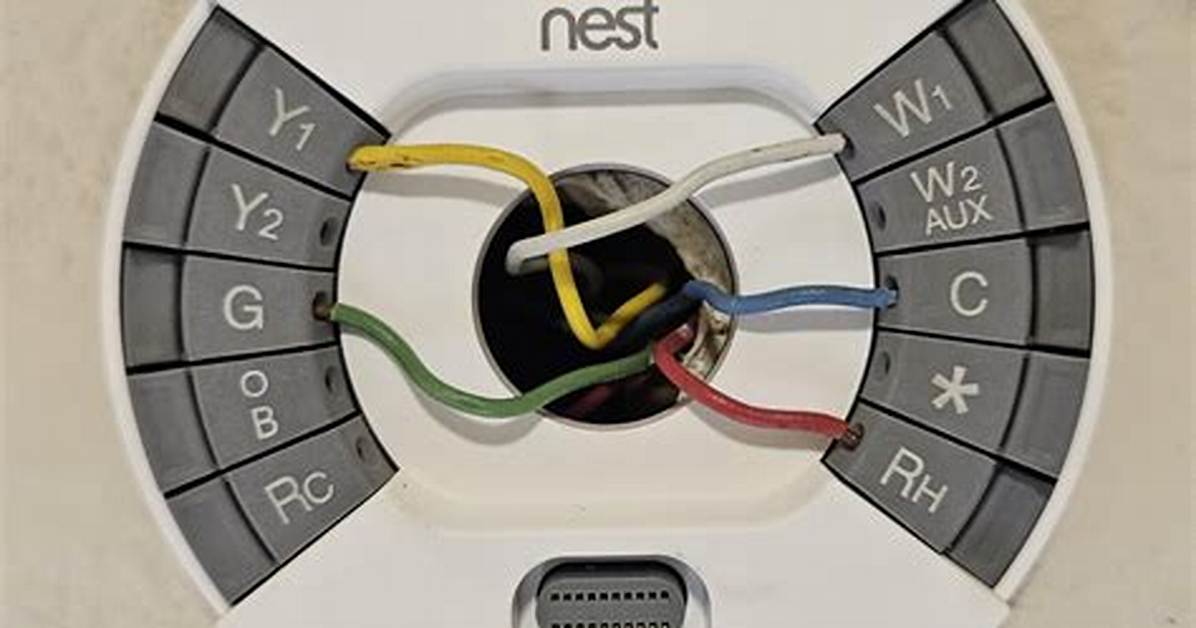

Where does Rh wire go on Nest thermostat?
Note: If you have an R, Rc or Rh wire, you can put it into the R connector on the Nest Thermostat. If you have a W2, Y2 or O/B wire, you can put it into the *O/B connector, if needed. Gently tug each wire to check they’re secure, and make sure each connector that has a wire stays down.
What does Rh wire mean?
The RH wire refers to “red heating” which means that this is the connection you need in order to power the heating system of your air conditioning unit.
Does R go in RH or RC?
In a thermostat, the R wire is responsible for powering the entire HVAC system (through a transformer). If you have both an Rh (Red-heat for powering the heating) and an Rc (Red-cool for powering the cooling), then the R wire can be connected to either Rh or Rc.
Do I need a jumper from R to RC?
If you have a wire in the R terminal, and another wire (not a jumper) in the RC terminal, you will not need to connect the R and RC terminals. See our Basic Wiring article for more info here.
Is RC and C wire the same?
No the Rc is the red wire. You need 5 wires or more for this to run with all the functions. You can use one of the other wires but you have to drop control of the fan. It will only come on when furnace comes on.
What are RC and RH wires?
Rh stands for Red-Heat and Rc stands for Red-Cool. If you only have a single red wire the jumper between Rh and Rc are required for some heating and cooling hybrid systems depending on your thermostat.
