A manometer is a scientific instrument used to measure gas pressures. Open manometers measure gas pressure relative to atmospheric pressure. A mercury or oil manometer measures gas pressure as the height of a fluid column of mercury or oil that the gas sample supports.
What is manometer and types?
A Manometer by definition is a device used for measuring the pressure of a fluid by balancing it against a pre-determined column of fluid. The most common type of manometer which almost all us might have seen is sphygmomanometer. It is the device which doctors use to measure your blood pressure.
What is a manometer class 11?
Manometer is a device that measures the fluid pressure.
Why is it called manometer?
“instrument for determining and indicating the elastic pressure of gases or vapors,” 1730, from French manomètre (1706), said to have been coined by French mathematician Pierre Varignon (1654-1722) from Greek manos “thin, rare; loose in texture, porous; scanty, few” (from PIE root *men- (4) “small, isolated”) + -mètre
What is manometer fluid?
The Manometer fluid or Pressure Gauge fluid is a combination of distilled water and additives to reduce the surface tension; is an accessory for Liquid Column Manometers individually sold for refill needs.
What is manometer tube?
A manometer is an instrument that has a small tube in the shape of a U that is filled with liquid to measure pressure or flow. A U-tube manometer is used as an indicator that the fan on the mitigation system is working.
What is manometer in pharmaceutical engineering?
Manometers is the devices during which an acceptable liquid is employed within the Mano-metric column to observe the difference in pressure between 2 totally different locations or one will say between a definite point and therefore the atmosphere.
Where is a manometer used?
Summary. – A manometer is one of the most accurate devices for measuring pressure in the lower ranges. – Typical manometer applications include measuring pipe fluid flows, HVAC system pressure, and gas pressure. – Typical manometer liquids are mercury, water, and light oils.
What is a manometer class 8?
A manometer is a device used for measuring liquid pressure. The difference in the liquid level in the two arms is the measure of the pressure exerted by the gas.
What is manometer in biology?
(Science: chemistry) a device for measuring the pressure of a gas in a container.
How does a manometer work class 8?

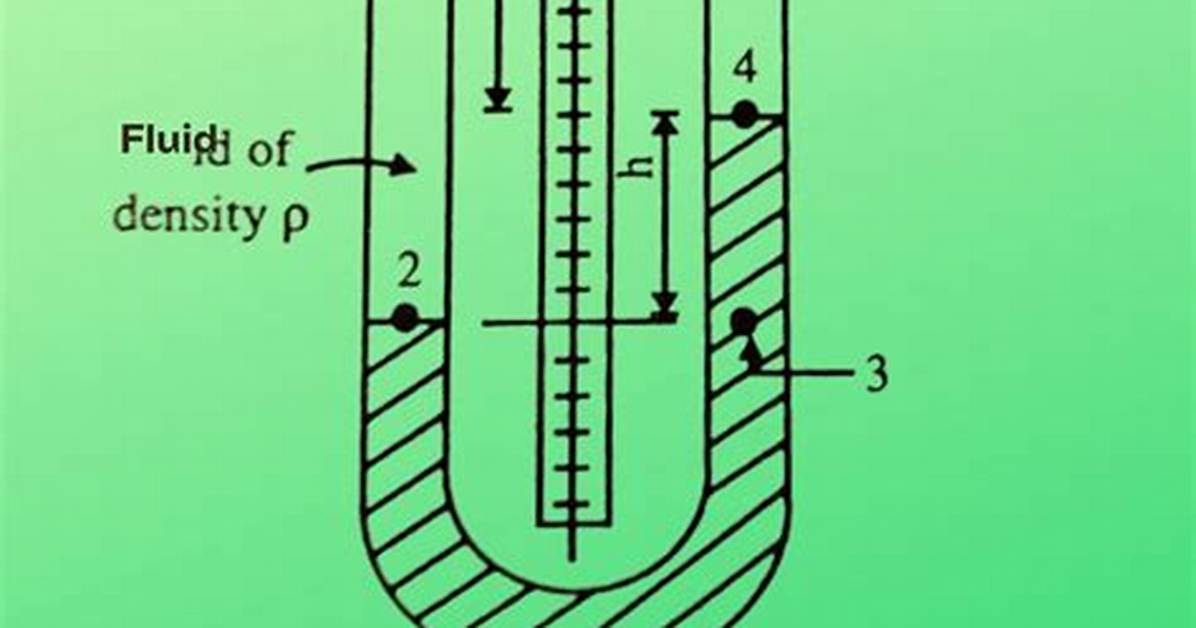

A manometer is made up of a U-shaped tube containing liquid or sometimes water. One arm of the U-shaped tube is open to the air while the other arm is connected to the vessel in which pressure is being measured. The difference in liquid levels shows the applied pressure.
Why is manometer important?
A manometer is an instrument which is widely used for many industrial applications, this device can be used to measure the pressure difference between two points in a pipe or it can also be used to determine the pressure difference between two pipes.
What is manometer Wikipedia?
A manometer is a device that is able to measure the pressure of a medium (a liquid, or a gas).
Why alcohol is used in manometer?
Alcohol is used in the manometer because alcohol is a low-density liquid and low-density liquids can be used to adjust and amplify the deflections of the manometer. Water and alcohol manometers are used to measure lower pressure. Alcohol has a suitable and fairly visible meniscus in the inclined tube.
Does a manometer measure static pressure?
To measure total pressure in the duct, the manometer is connected as shown on the right of Figure 11. This gauge measures the force of static pressure and velocity pressure which is the total pressure.
