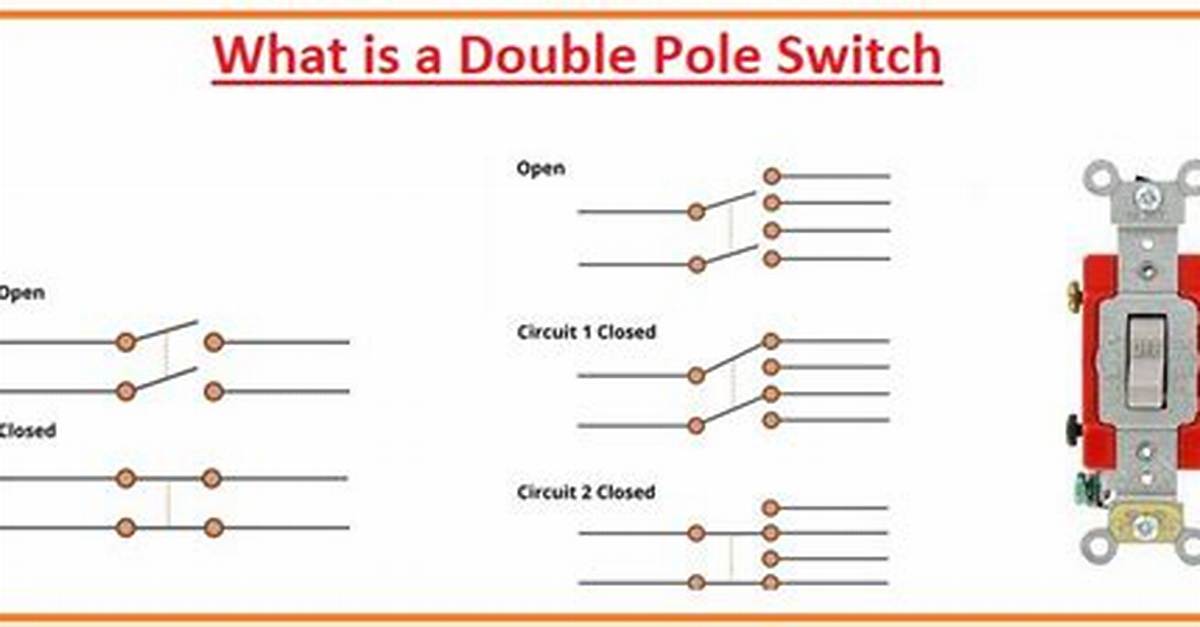

A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.
What is the difference between single and double pole switch?
Both single pole and double pole switches can be either single or double throw. A pole refers to the number of separate circuits a switch can control, a single pole switch can operate one circuit whereas a double pole switch can control two circuits. A throw refers to how many positions can be activated by a switch.
What’s the difference between single pole and double pole sockets?
Single pole means only the PHASE is switched. Double pole means both PHASE and NEUTRAL are switched together; giving complete isolation to the appliance.
What’s the difference between 1 way and 2 way light switches?
The one-way switch has two contacts and the two-way switch has three contacts. In a two-way switch, there are two, one-way switches combined in one. One of the terminals can be connected to either of the two, but not both at the same time.
Can a single pole switch control two lights?
A single light switch that controls two fixtures, such as two lights or a light and a bathroom or ceiling fan, can be converted to a double light switch that allows you to operate each fixture independently. If each fixture has a separate cable running to the switch, this is a fairly simple task.
What are the 4 types of switches?
The types of switches are classified into four types namely:
SPST (Single Pole Single throw)SPDT (single pole double throw)DPST (double pole, single throw)DPDT (double pole double throw)
What is the use of two way switch in household wiring?
The two way (double-pole) switch is used to ON and OFF the light from two different locations and the switch is mostly used in the case of stairs, in rooms that have two entries. This type of switch is generally used in some home wiring systems and industrial applications.
What does a single pole light switch mean?
A single pole switch is used to control the light in a small closet or bathroom. It’s called a single pole switch because there are two wires connected or separated by the switch mechanism. There’s also a ground wire to protect against electrical faults.
What is a double switch electrical?
Double switching, double cutting, or double breaking is the practice of using a multipole switch to close or open both the positive and negative sides of a DC electrical circuit, or both the hot and neutral sides of an AC circuit.
