How do you convert RMS voltage to peak voltage? Peak values can be calculated from RMS values from the above formula, which implies VP = VRMS × √2, assuming the source is a pure sine wave. Thus the peak value of the mains voltage in the USA is about 120 × √2, or about 170 volts.
How is vpeak calculated?
To compute VP from the peak-to-peak voltage, the peak-to-peak voltage is multiplied by 0.5. To compute VP from the RMS voltage, the RMS voltage is multiplied by 1.414.
What is Vrms voltage?

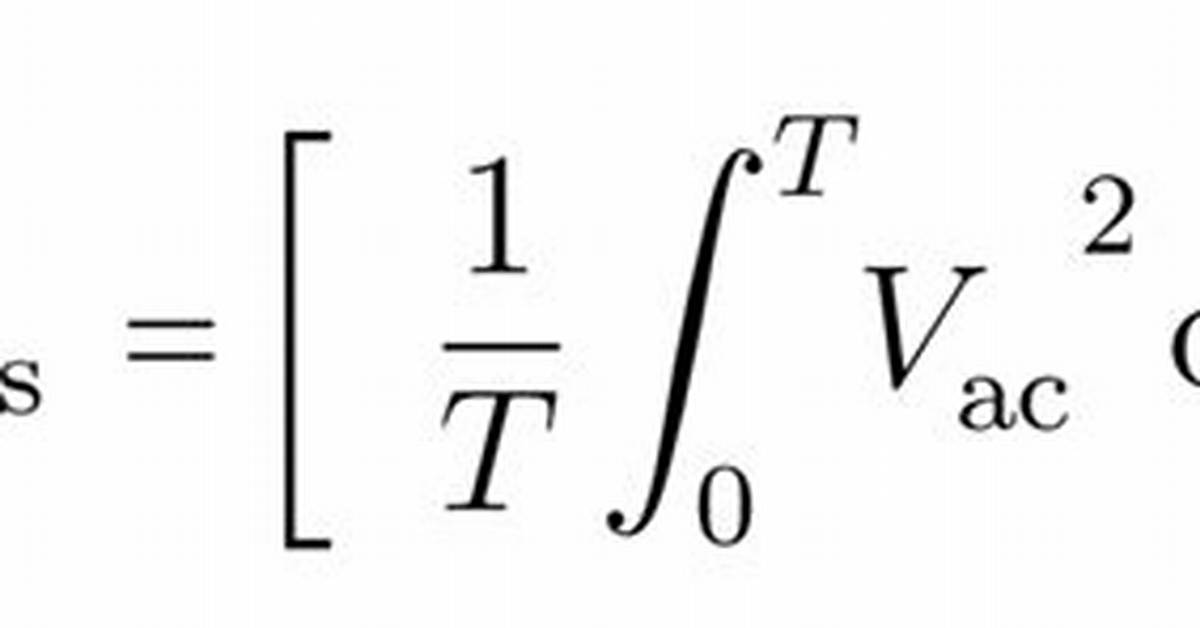

The root-mean-square (rms) voltage of a sinusoidal source of electromotive force (Vrms) is used to characterize the source. It is the square root of the time average of the voltage squared. The value of Vrms is V0/Square root of√2, or, equivalently, 0.707V0. Thus, the 60-hertz, 120-volt alternating current,…
Is Vrms equal to VDC?
So we have a big DC signal (Vdc) plus a little more DC from the ripple (V rip rms) and when added together will give you the actual Vrms of the original signal. So V dc (V average) is about 63.6% or (2/pi) of V peak or V max and, V rms is about 70.7% or (1/√2) of V peak or V max.
What is vpeak?
Vpeak to peak is defined as the voltage measured between the maximum Positive and Negative Amplitudes on the sine wave. The Vrms is defined as square root of the mean of the squares of the values for the one time period of the sine wave.
How do you calculate RMS from peak to peak?
The RMS voltage can also be found if the peak-to-peak voltage is known using this formula where VP-P is the peak-to-peak voltage. Thus, RMS voltage is equal to one divided by two times the square root of two, times the peak voltage.
What is RMS value of AC?
Root mean square or R.M.S. value of Alternating voltage is defined as that value of steady Potential Difference, which would generate the same amount of heat in a given resistance is given time, as is done by A.C. voltage , when maintained across the same resistance for the same time.
What is RMS velocity?
The root-mean square (RMS) velocity is the value of the square root of the sum of the squares of the stacking velocity values divided by the number of values. The RMS velocity is that of a wave through sub-surface layers of different interval velocities along a specific ray path.
What is VRMS output?
The max input level stated in Vrms (“root mean square Volts”) is a measure of how big the input signal needs to be for the amplifier to produce its full power output. As you adjust the max input level it changes the internal gain of the amplifier.
What is RMS and average value?
RMS stands for Root-Mean-Square of instantaneous current values. The RMS value of alternating current is given by direct current which flows through a resistance. The RMS value of AC is greater than the average value. The RMS value of sine current wave can be determined by the area covered in half-cycle.
What is RMS and average voltage?
The RMS value is the square root of the mean (average) value of the squared function of the instantaneous values. Since an AC voltage rises and falls with time, it takes more AC voltage to produce a given RMS voltage than it would for DC. For example, it would take 169 volts peak AC to achieve 120 volts RMS (.
How do you find the root mean square?
To find the root mean square of a set of numbers, square all the numbers in the set and then find the arithmetic mean of the squares. Take the square root of the result. This is the root mean square.
