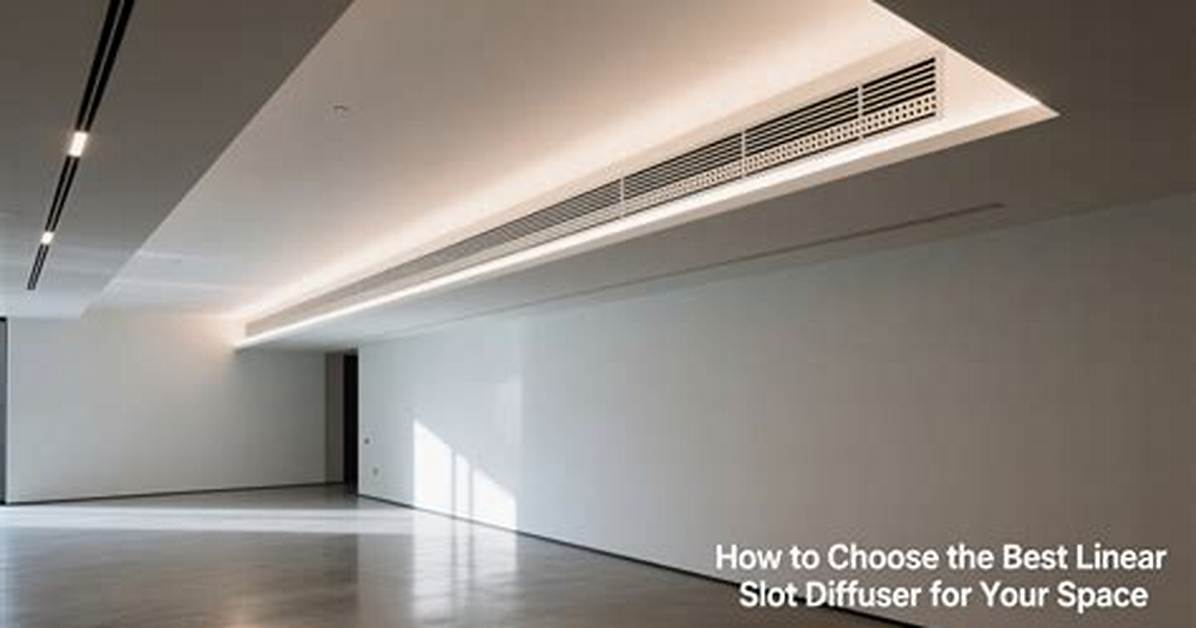

A slot diffuser is a building component used to deliver air to a room. These diffusers serve as a critical component in a heating, ventilation, and air conditioning (HVAC) system. Unlike traditional square or round diffusers, a slot diffuser features a long, narrow design.
What does a linear diffuser do?
In an HVAC ductwork system, linear diffuser helps to deliver the air to each area. The slot diffuser distributes the air throughout the space. The size of the linear diffuser is the diameter of its neck to which you connect the flexible duct.
What is a flow bar diffuser?
Introduction to FlowBar
Air Diffusion’s FlowBar is an architecturally designed, high capacity linear slot diffuser. It is designed to combine a very high air handling capacity with maximum flexibility and is suitable for either ceiling or sidewall applications.
Are linear diffusers worth it?
The reasons for this is simple:
Linear diffusers offer a minimal and clean look. They take up less space and can be used on ceilings or walls. Linear diffusers can be used as an “air curtain” next to doors, large windows and entrances. They can also be easily hidden.
What is a plenum slot diffuser?
Nailor Plenum Slot Diffusers are designed to integrate and blend with T-Bar suspended grid systems, available for Standard Lay-in and Narrow Regressed T-Bar systems. All models are available with insulation options, with matching return diffusers available.
How do I know what size diffuser I need?
The air con diffuser sizing is determined by:
The area to be cooled/heated.The dimensions of the area length and width.The aesthetics of the space.The height of the ceiling.Larger diffusers/ducts move more air with less static. Undersized diffusers will restrict airflow and create noise. Correct sizing is important.
What are grilles and diffusers?
A special device used in supplying and extracting air vertically without any kind of deflection is called a grille. A device used to direct the air at different angles by profiled blades when the air is leaving the unit and going into the space is known as a diffuser.
What are linear slots?
Long narrow slots take the place of traditional “blades”. The installation is flush with the wall or ceiling, and the diffuser all but disappears within the natural lines of the structure. Linear Slot Diffusers come in an almost endless variety of sizes, styles, lengths, widths and configurations.
What is a vent diffuser?
A ventilation diffuser disperses pressurised air exiting heating ventilation and air conditioning ductwork and provide a decorative finish over the grill box hole holding the ductwork in place. Without an air diffuser, the air exiting the HVAC system would travel in a straight direction.
What is a plenum box?
Plenum boxes are usually situated on either side of the fan or heat exchanger and have the important function of bringing in, distributing, and removing air. They are the air’s first stop after being heated or cooled and its last stop before going back into your AC, heat pump, or furnace.
What is a flow bar?
Flow bar is an architecturally designed high capacity linear slot diffuser.It is designed to combine a high air handling capacity with maximum flexibility and is suitable for either celing or sidewall applications.
