Romex Cables

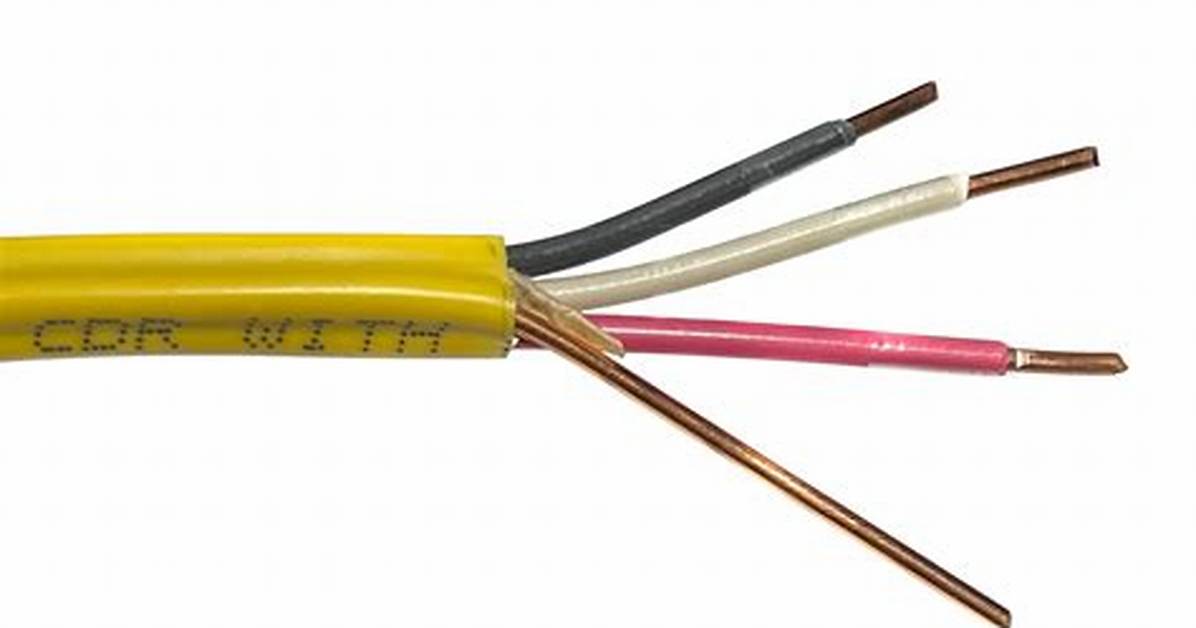

Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC). NM and NMC conductors are composed of two or more insulated conductors contained in a non-metallic sheath.
Is Romex wiring still used?
14 gauge Romex is still used in some applications and is rated for 15 Amps and is grey jacketed. 10 gauge Romex has an orange jacket and is used for water heaters or clothes driers. For our cabin, we used 12 gauge Romex for all of the outlets and lighting circuits.
Is Romex wiring safe?
Romex wire is one of the better and safer alternatives for the following reasons: Presence of a ground wire. Sheathing is flame-resistant and heat resistant, able to withstand a temperature of 90 degrees Fahrenheit. Longer-lasting due to copper metal composition.
Where is Romex not allowed?
To give you an overview of what the National Electrical Code (NEC) regulations state, Romex wire shouldn’t be left exposed anywhere in the house, be it the basement, attic, or the home itself. In other words, the installation above is not compliant with the relevant codes.
Which wire is best for home wiring?
If what you need the wire for is the wiring of your home, copper wires will be most appropriate for you. Copper is more conductive than aluminum but is also heavier and more expensive.
Why is it called Romex?
The Romex name comes from Rome Cable Corp. of Rome, New York, which originally produced the cable. The company was an industry leader until it filed for bankruptcy in 2003 and its factory was largely demolished in 2010.
Can Romex be exposed in garage?
Exposed NM, NMC and NMS cable are allowed to be run in “one- and two-family dwellings, their attached or detached garages, and their storage buildings” by the National Electrical Code (NEC 334.10 and 334.15).
Can Romex be exposed?
Sheathing on Romex is made of tough polyvinyl chloride (PVC) thermoplastic. The sheathing on both 14 and 12 AWG wire is 19 mils thick. Still, no matter how strong the NM sheathing, it is not meant for exposed applications.
What type of wire is used for outlets?
12-gauge wire is the minimum requirement for outlets on a 20-amp circuit. 12-gauge wire can be used for outlets on both 15 and 20-amp circuits. 14-gauge wire is unsafe to use for outlets on a 20-amp circuit. 14-gauge wire can only be used for outlets on a 15-amp circuit.
How long will Romex last?
How long does Romex wiring last? Non-metallic (Romex) wiring can last 70 years or longer. The outer protective sheathing resists breakdown due to age. Commonly, damage to Romex wiring is caused by animals or overheating, which requires a partial wiring replacement.
Is it legal to run Romex in conduit?
No, you can not run your Romex wiring in conduits. What you’re looking at in the code book is referring to THHN and other wiring, that while insulated with a single coat is not insulated with a second covering and bound to 2 or 3 other wires.
Is it OK to reuse Romex?
don’t use it 🙂 Otherwise, you should be fine. Still, even if it looks / tests fine – consider replacing it if it’s over 15 years old. You need not waste it, Romex has oodles of uses out of the wall (it’s great for tying up/down all kinds of stuff, for instance).
Can Romex be exposed in a shed?
The short answer to the question is – no, you should never expose your Romex wiring in your garage. You should always cover Romex wiring on your property.
Can you use Romex in walls?
Running electrical wires running through finished walls is almost always done with a sheathed cable, often known as NM (non metallic) cable, or Romex (named after one of the popular brands).
Can I run Romex in a drop ceiling?
Yes, Romex® NM cables can be used above a drop ceiling.
As long as the cables are not exposed to damage and comply with building codes, it is safe to use Romex® brand NM cables above a drop ceiling.
What kind of wiring is used in new homes?
The most common type of wiring in modern homes is in the form of nonmetallic (NM) cable, which consists of two or more individual wires wrapped inside a protective plastic sheathing. NM cable usually contains one or more “hot” (current-carrying) wires, a neutral wire, and a ground wire.
What is the meaning of 7 20 wire?
Niel. The 7 stands for the number of strands. The 20 stands for the gauge of each strand. 7/20 wire is electrically equivalent of 12 gauge solid wire. It is one of several stranded wire constructions available.
