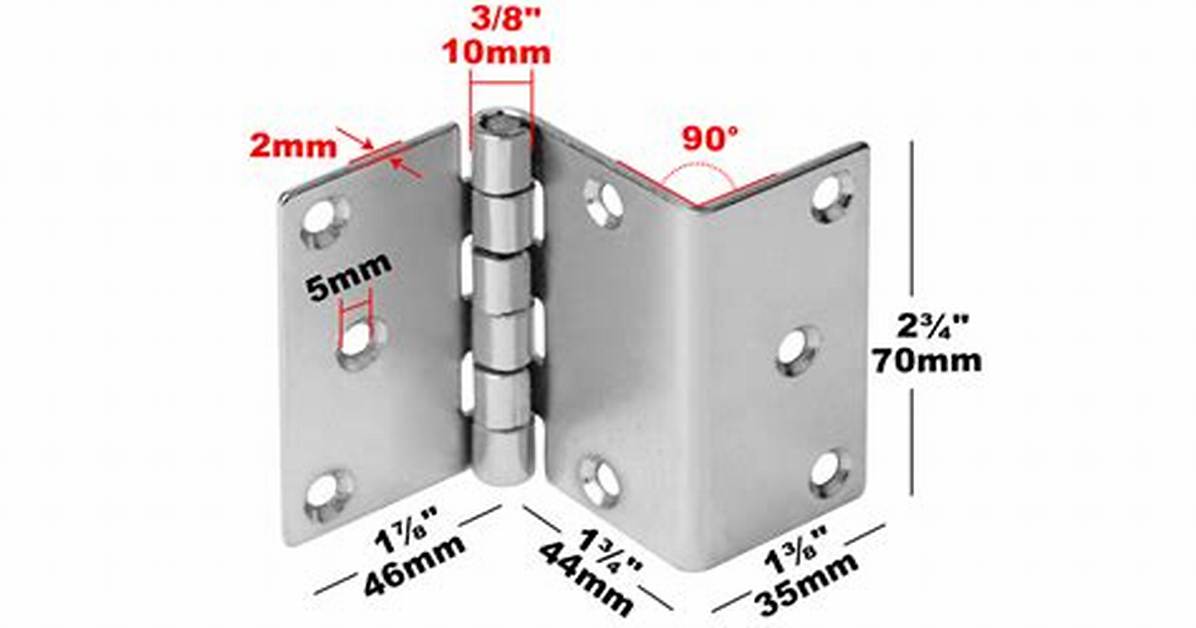

An offset hinge allows you to widen a doorway easily and inexpensively. The hinge swings away and moves the door out of the opening, increasing the passage’s width by up to two inches in some cases. Those few inches are a big deal if you’re trying to create more comfortable access for a wheelchair or walker.
How does an offset pivot hinge work?
How do Offset Hinges Work? The design of offset hinges moves the hinge pin farther away from the doorjamb. When the door is opened to 90 degrees, it is set back at least two inches from the doorway, making the opening larger.
How do you measure an offset hinge?
Measure from base of hinge to level position of strap. Manufacturer will stamp offset on hinge butt or on hinge blade. If conflicting information is given on both butt and blade, figure shown on blade will be the correct offset. Measure distance from the surrounding cabinet surface to the door face.
What is the strongest type of hinge?
Ball Bearing Hinge
Ball bearing hinges are considered heavy-duty and durable, making them ideal for entry doors.
What hinges to use for heavy doors?
The ball bearing hinge has lubricated bearings between the hinge’s knuckles to reduce friction caused by heavy doors. These durable hinges are ideal for heavy entryway doors or those that sustain frequent use.
What are Z hinges?
SS Z Hinges also known as Wardrobe hinges, Z hinges are fixed in wardrobe doors and they will not visible from outside after the final finish of wardrobe doors as the wardrobe is part of interior furniture and the modern design of furniture is very exclusive and prefer not to show any part of hinges outside of
What is an offset pivot?
Offset pivots have a pivot point that is offset from the face of the door. Offset pivots are used on single acting doors. Generally two offset dimensions are available, 3/4″ and 1-1/2″ where 3/4″ offset is used most often.
When would you use a pivot hinge?
Pivot hinges work best in high-traffic areas where you want to open a door just by pushing it open, and it swings closed behind you. These hinges also come with a bottom bracket that anchors the door to the floor, which supports the weight of heavier doors. That’s why they’re so often used in restaurants.
Are pivot doors safe?
Because of the way pivot doors operate, we’re able to make them larger, heavier, and more grandiose than we ever could have before — and they’ll be completely fortified and secure, if that’s what your client needs.
What is an offset latch?
Offset means that the surface of the cabinet door projects out from the cabinet frame, usually 3/8” or 1/2″. Offset hinges and latches are surface mounted to the door and the frame of the cabinet.
How do you measure the size of a hinge?
Use your ruler or measuring tape to measure the width from one leaf edge to the pin in the middle of the hinge. Then multiply that figure by two; the width of a hinge is the sum of two leaf widths.
What are the 4 styles of hinge called?
How Hinges Work. Most types of hinges comprise three basic parts: the leaf, knuckle and pin. Butt Hinges. Butt hinges are commonly used types of hinges for doors. Spring-Loaded Hinges. Concealed Hinges. Overlay Hinges. Strap Hinges. Gate Hinges. Ball-Bearing Hinges.
Can a door open 180 degrees?
Wide throw hinges are used when you need extra clearance behind a door – typically a door that opens 180 degrees. In the good old days this clearance was usually needed because of fancy wood trim around the frame.
How do I choose the right hinge?
How to Pick a Hinge
Check the casing the hinge will attach to. Check the overlap of the door or lid on the face-framed cabinet or box. Measure the clearance you have between the door or lid and the box or frame. Weigh the door or lid the hinge will open.
