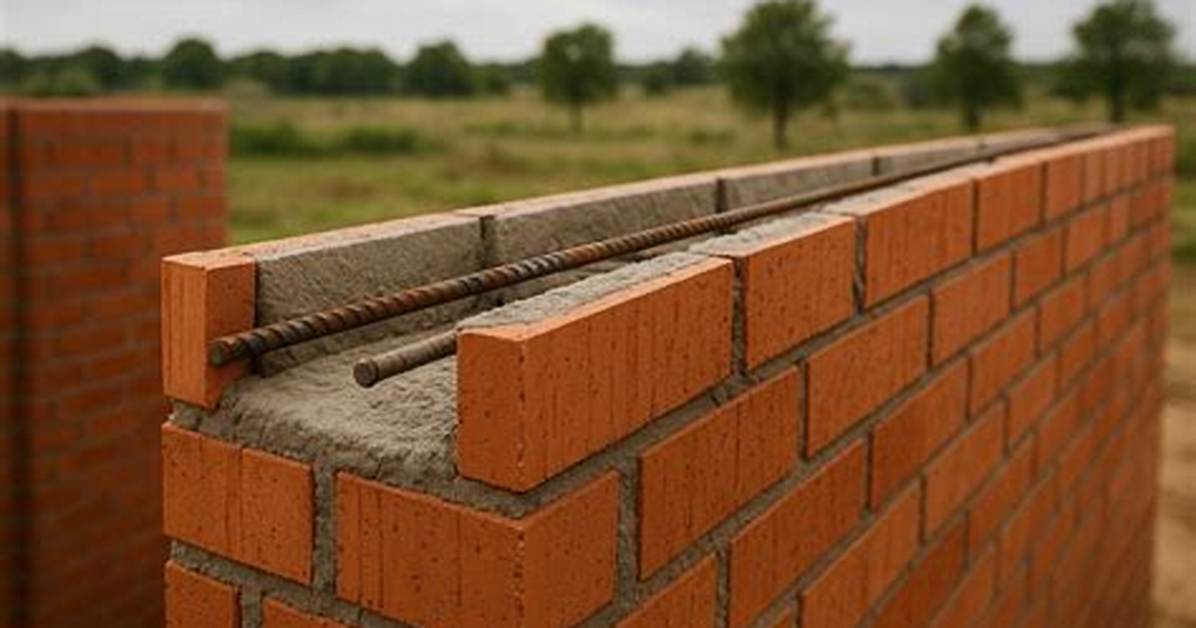

A bond beam is a horizontally reinforced element in a masonry wall that provides resistance to shear loads and also helps distribute lateral loads throughout the wall section. Reinforcement is placed in special bond-beam units that have reduced-height cross webs and grouted solid.
Where is the bond beam?
Bond beams also make a sufficient alternative to lintels, which we’ll go over in the next section. Typically, the beams are found in the top course of each wall and at each floor and roof diaphragm. To offer full movement separation between the walls, the beam should usually end at either side of a control joint.
What is tie beam?
tie beam. noun. a horizontal beam that serves to prevent two other structural members from separating, esp one that connects two corresponding rafters in a roof or roof truss.
What is a brick lintel?
A lintel is a structural member placed over an opening in a wall. In the case of a brick masonry wall, lintels may consist of reinforced brick masonry, brick masonry arches, precast concrete or structural steel shapes.
What is a lintel beam?
A lintel or lintol is a type of beam (a horizontal structural element) that spans openings such as portals, doors, windows and fireplaces. It can be a decorative architectural element, or a combined ornamented structural item.
What is bond beam concrete block?
Bond beam blocks are horizontal concrete masonry units in which the web portion have cuts or holes to access vertical reinforcement. They may be U-shaped or sometimes they may come up with knockout sections which can be removed while using. Bond beams are placed in courses in masonry walls to construct a bond beam.
What is a concrete grade beam?
A grade beam is a component of a building’s foundation. It consists of a reinforced concrete beam that transmits the load from a bearing wall into spaced foundations such as pile caps or caissons. The grade beam is a component of the foundation of the structure.
What is a CMU lintel?
Lintels are structural beams that carry loads over an opening such as a door, window, or HVAC penetration. Reinforced masonry lintels are usually the most convenient. Masonry lintels may be 1 or more courses tall, with horizontal reinforcement grouted in place.
What is plinth and plinth beam?
Plinth Beams are constructed between the foundation and walls and are reinforced concrete beams, these beams are provided when the foundation suffers from settlement to prevent the expansion or spread of cracks in the wall from the foundation and the foundation but these beams distribute the load of a wall. Plinth Beam.
What is a strut beam?
Strut is a common name in timber framing for a support or brace of scantlings lighter than a post. Frequently struts are found in roof framing from either a tie beam or a king post to a principal rafter. Struts may be vertically plumb or leaning (then called canted, raking, or angled) and may be straight or curved.
What are the types of beam?
Types of beam structure
Continuous beams. A continuous beam is one that has two or more supports that reinforce the beam. Simply supported beams. Simply supported beams are those that have supports at both end of the beam. Fixed beams. Overhanging beams. Cantilever beam.
