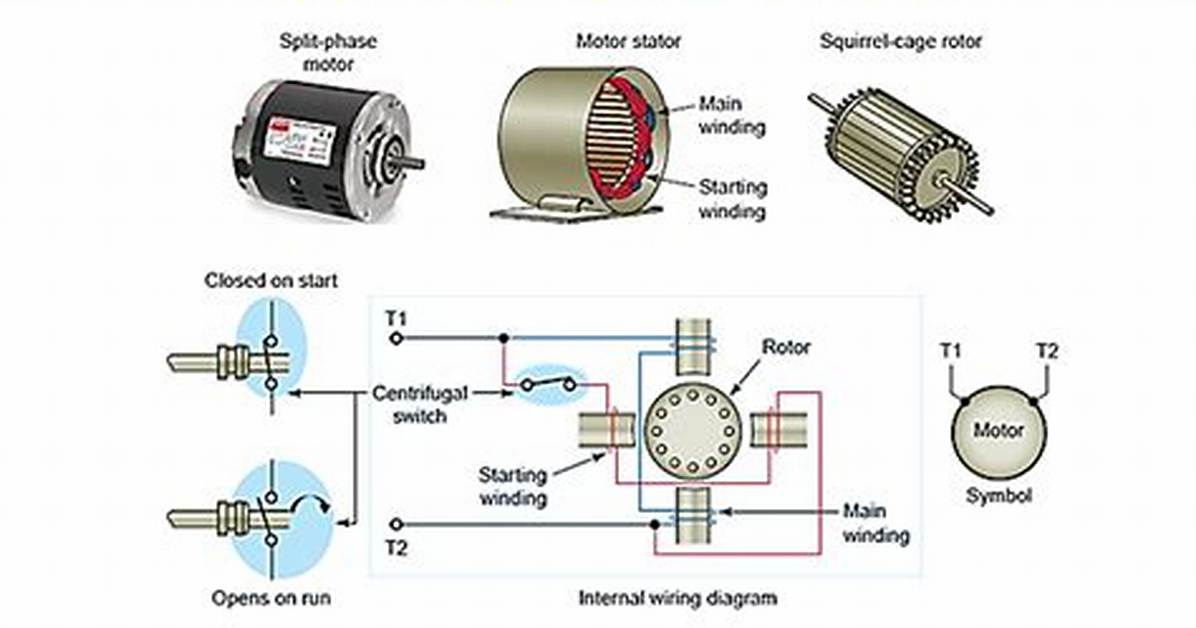

A split-phase induction motor is a type of single-phase induction motor in which the stator is provided with a starting or auxiliary winding (S) and a main or running winding (M). The starting winding is displaced by 90° from the main winding as shown in the figure.
What is the difference between single-phase and split-phase motor?
But the main disparity is, in single phase motor, it does not generate a rotary magnetic field whereas the polyphase generates simply a pulsating filed. Therefore, phase splitting can be done to generate the rotary magnetic field for self-starting and to run the motor like a two-phase induction motor for starting.
What are the three types of split-phase motors?
1. Resistance-start, induction-run motors 2. Capacitor-start, induction-run motors 3. Capacitor-start, capacitor-run motors 4.
What is meant by phase splitting?
Definition of phase splitter
: a device by which a single-phase current is split into two or more currents differing in phase and which is used in starting a single-phase induction motor.
Does a split-phase motor have a capacitor?
The auxiliary winding of a permanent split capacitor motor has a capacitor in series with it during starting and running.
Which motor is used in ceiling fan?
In conventional ceiling fans, single phase induction motor is used. These motors consume minimum power and hence, are also known as fractional kilowatt motors. A single phase induction motor requires only one power phase for operating. It converts the electrical energy from the power input into mechanical energy.
What is the function of phase splitter?
A phase splitter is a device that separates a signal into multiple phases (or polarities).
What is a phase splitter tube?
In a push-pull amp, you need a phase splitter to produce the two identical but in phase opposition signals to drive the power tubes. Phase splitters are like religions, you belong to one or another and discussions between fans are often emotional.
Whats is a transistor?
A transistor is a device that regulates current or voltage flow and acts as a switch or gate for electronic signals. Transistors consist of three layers of a semiconductor material, each capable of carrying a current.
Why is it called a split-phase motor?
In a split-phase induction motor, the starting and main current get split from each other by some angle, so this motor got its name as a split-phase induction motor.
Why is a split-phase motor not self starting?
It is because a single-phase supply cannot produce a rotating magnetic field. But we can create a rotating magnetic field by a two-phase construction. So simply we can say in order to make a single-phase induction motor self-starting, we have to temporarily convert it into a two-phase motor during its starting period.
Can I run motor without capacitor?
Without capacitor you can run the motor. But at starting you have to rotate the rotor manually. If you don’t have to rotate manually then definitely you need to install capacitor.
