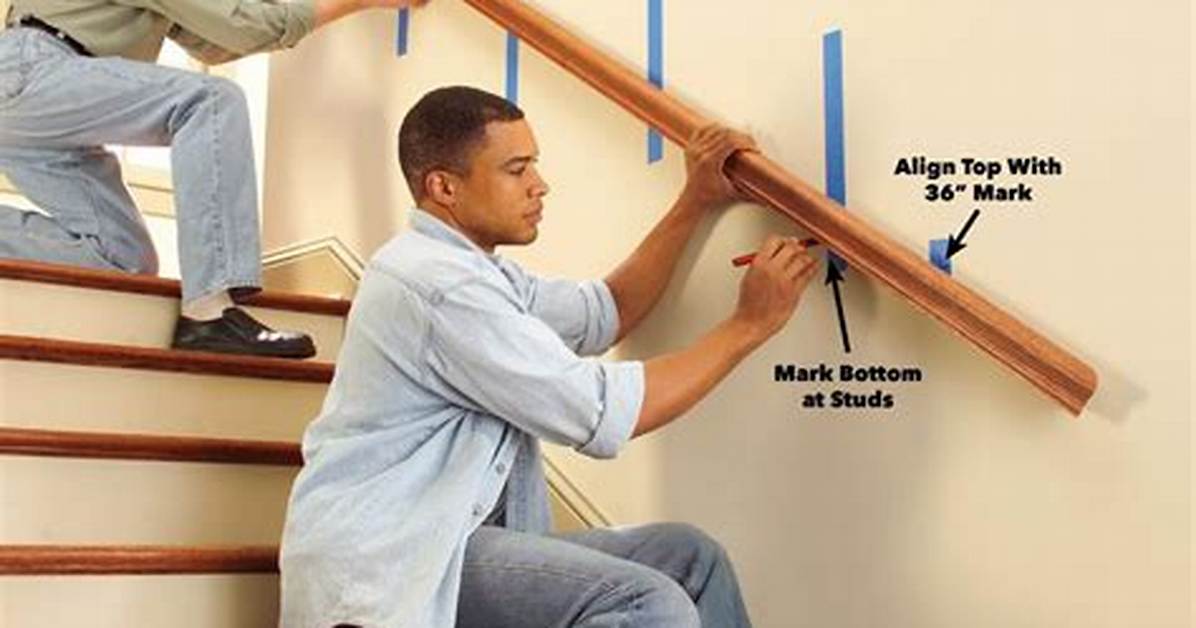

Install the top and bottom brackets first and mount the rail to them. Attach the rail to the brackets with the screws and strap provided. Then add the bracket under the short horizontal section. Finally, sight down the stair railing and straighten it before adding the intermediate brackets.

What height do you install a handrail?

The handrail height must be uniform (the same height) above each stair tread and surface of the ramp. So the handrail should incline at the same rate as the stairs or ramp. Handrails should be no less than 34 inches above the stair or ramp and no more than 38 inches above.

How far apart should handrail brackets be placed?

We recommend spacing the Brackets 36 to 48 inches apart. In most cases, it is desirable to transition the Handrail past the last stair with a horizontal rail of 6 to 12 inches. Some local codes require this extension be 12 inches. Contact your local authorities to confirm requirements.

Where should a handrail start and stop?

The railing must be continuous, starting at the nosing of the upper landing and extending at a minimum to the nosing of the lowest step or “riser”. For optimal safety, whenever possible the handrail should run the entire length of the Nosing Line.

What angle should a handrail be?

The angle should be between 20 and 38 degrees.

What side should stair handrail be on?

From ground floor to first floor the wall mounted handrail is on the LEFT, From first floor to second floor the handrail with the balustrade is on the RIGHT.

Are stairs at 45 degrees?

The standard angle of a staircase depends on the use case and application for the stair. For most standard stairs, the stair angle varies between 30 degrees and 45 degrees. Egress stairs have a shallower angle around 30-35 degrees while industrial stairs have steeper angles ranging from 40 to 70 degrees.

How many brackets do I need for a 12 foot handrail?

Determine how many brackets you need. You need one at the top and one at the bottom. You also need additional brackets, spaced no more than 4 feet apart in the middle of the handrail to provide additional support.

Why do handrails have to return to the wall?

Handrail returns are the individual segments connecting the end of a railing to the wall, a newel post, or a surface (like a sidewalk). Returns help protect individuals from the sharp edge of the rail; they also serve as a support system for individuals with mobility issues.

Where do you place a railing bracket?

Spacing of brackets should be a maximum of 6′ on center. edge of the stair tread or landing to the top of the handrail. The following instructions will position the handrail at approximately 35″ above the landing or stair tread.
