In the US, CMU blocks are nominally 16 in (410 mm) long and 8 in (200 mm) wide. Their actual dimensions are 3⁄8 inch (9.5 mm) less than the nominal dimensions (to allow for 3⁄8-inch mortar joints between blocks in any orientation).
How tall is a cinder block with mortar?
Standard concrete blocks are 15 5/8 inches by 7 5/8 inches and there is usually 3/8 inches of mortar between them so in the wall it is safe to say that a block and mortar on two sides is approximately 16 inches by 8 inches.
What is the standard height of a block?

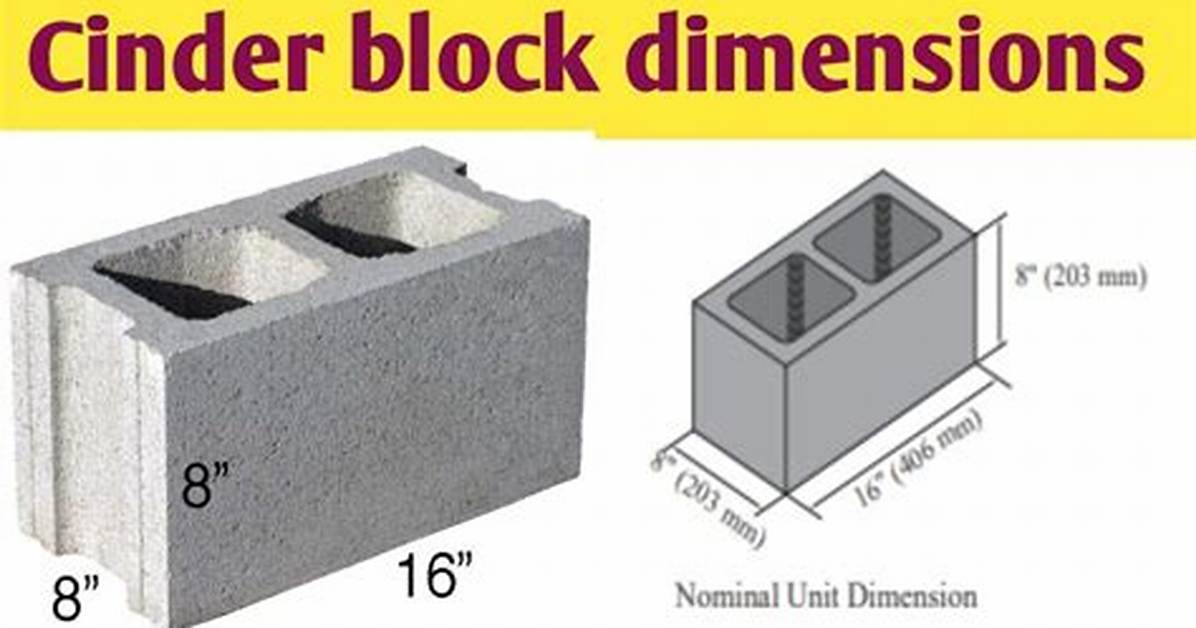

In the US, most commonly used, a standard size of cinder block is 16 inch long by 8 inch high by 8 inch depth, which is represented in inch as 8″×8″×16″ or in mm as 200 × 200 × 400 (depth × height× length). Most common dimensions for Full cinder blocks are approximately 8 inches wide, 8 inches high, and 16 inches long.
What size is a standard cinder block?
Well, the common dimensions of cinder blocks are 8-by-8-by-16 inches. However, like most boards, their actual sizes are different from label. Most cinder blocks are smaller. Their actual dimensions are more apt to be 7 5/8-by-7 5/8-by-15 5/8.
Can you build a retaining wall with cinder blocks?
A cinder block retaining wall is only as straight and solid as the base it’s built on. For a 4-ft. tall wall, excavate a trench deep enough to accommodate 4 to 6 in.
How thick is the wall of a cinder block?
Typically, concrete masonry units have nominal face dimensions of 8 in. (203 mm) by 16 in. (406 mm), available in nominal thicknesses of 4, 6, 8, 10, 12, 14, and 16 in. (102, 152, 203, 254, 305, 356, and 406 mm).
How big are the holes in a cinder block?
In addition to the hollow core, a 12-inch sash block also has a 3/4 inch square notch running up the entire height of a long-sided face. The notch is located 7 7/16 inches from the left side of the block. A 12 x 8 x 12-inch pier block has two equal hollow cores measuring 7 3/4 inches wide by 8 5/8 inches long.
How do you build a cinder block wall?
Instructions
Plan Footing. The poured concrete footing should be twice the width of the intended concrete wall. Create Trench. With a trenching machine or a trenching shovel, dig down below the frost level for your area. Pour Concrete. Snap Chalk Line. Establish Two Leads. Mix Mortar. Lay Mortar Base. Lay Cinder Block Leads.
What size is a 4 inch concrete block?
A 4-inch CMU has an actual size of 3 5/8 inch x 7 5/8 inch x 7 5/8 inch (DxHxL). The nominal size is then 4 x 8 x 8. This is the smallest concrete block size.
What are those huge concrete blocks called?
Jumbo block are typically used for:
Large retaining walls. Barriers to prevent vehicles from entering an area or running over something important. Traffic control. Large bins/bunkers for storing material like mulch, stone, or sand.
How can you tell the difference between cinder blocks and concrete blocks?
Cinder Block vs Concrete Block
Cinder block displays a hollow rectangle structure. Concrete block exhibits a flattened structure. Cinder block is fabricated of- concrete and coal cinders. Concrete block is produced by steel, wood, and cement.
