The automotive confusion aside, Ppk will always be greater than Cpk since Ppk is long term capabliity and Cpk is short term capability. The only way that Cpk will be greater than Ppk (other than a misuse of the terms and formulas) is under the conditions stated in a previous post.
What does a PPK of 1.33 mean?
1.33 ≤ Ppk ≤ 1.67 The process may not meet customer requirements. After part approval, begin production with additional attention to the characteristic until an ongoing Cpk ≥ 1.33 is achieved. Ppk
What is PPK and Cpk full form?
Ppk is a short term analysis (mostly done with 50 or 100 samples measured) Ppk is Process Potential Capability. Cpk is long term analysis and is Continous Process capability.

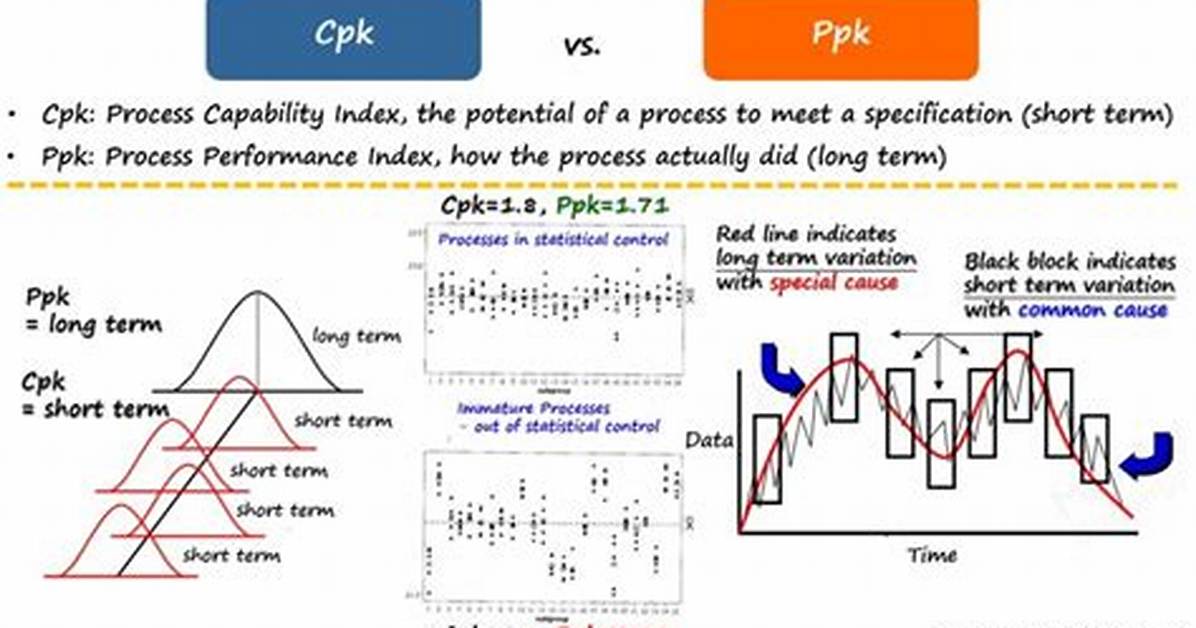

What is the difference between CP Cpk and PP PPK?
Cp(k) vs Pp(k)
Cp & Cpk use an estimate for the standard deviation applying the R Bar / d2 method. Pp, Ppk are more liberal whereas Cp, Cpk are more conservative. Use Pp & Ppk when you are initially setting up your process. Use Cp & Cpk once the process is in a state of statistical control.
What does PPK value mean?
Ppk is an index of process performance which tells how well a system is meeting specifications . Ppk calculations use actual sigma (sigma of the individuals ), and shows how the system is actually running when compared to the specifications.
What does 1.33 Cpk mean?
Cpk = or >1.33 indicates that the process is capable and meets specification limits. Any value less than this may mean variation is too wide compared to the specification or the process average is away from the target.
What does a high PPK mean?
Generally, higher Ppk values indicate a more capable process. Lower Ppk values indicate that your process may need improvement.
How do you read a PPK?
Generally, higher Ppk values indicate a more capable process. Lower Ppk values indicate that your process may need improvement. Compare Ppk to a benchmark value that represents the minimum value that is acceptable for your process. Many industries use a benchmark value of 1.33.
What is PPK and RTK?
Real Time Kinematic (RTK) is a GPS correction technology technique that provides real-time corrections to location data as the drone is surveying and capturing images from a site. Post Processed Kinematic (PPK) is a GPS correction technology technique that corrects location data after it is collected and uploaded.
What is an acceptable PPK value?
According to Six Sigma philosophy, Cp or Pp and Cpk or Ppk should be greater than 1.50. From a technical standpoint, Six Sigma deems a process being acceptable only after achieving a maximum defect rate of 3.4 parts per million opportunities.
How is Cpk and PPK calculated?
If we look at the formulas for Cpk and Ppk for normal (distribution) process capability, we can see they are nearly identical: The only difference lies in the denominator for the Upper and Lower statistics: Cpk is calculated using the WITHIN standard deviation, while Ppk uses the OVERALL standard deviation.
Is PPK short term capability?
The most common definition of Cpk and Ppk is this: Cpk is the short-term capability of a process, and Ppk is the long-term. The truth is that these statistical indices are much more than that, and it is important to understand what process and capability statistics really mean.
How do you find PP and PPK?
Pp, Ppk In Relation to Z Scores
Ppk can be determined by diving the Z score by three. A z score is the same as a standard score; the number of standard deviations above the mean. Z = x – mean of the population / standard deviation.
What is USL and LSL?
USL = Upper Specification Limit. LSL = Lower Specification Limit. The “customer” defines your specification limits.
What is PP and PPK in quality?
Process Performance Metrics. Pp is the performance index. It measures how well the data might fit between the spec limits (USL, LSL). It doesn’t care if the process is centered within the limits only if it would fit if it was centered. Ppk is the performance centering index.
Can PPK be greater than PP?
Heretical Statistician
but it is mathematically possible for Ppk to exceed Pp IF you have data wiht very little resolution – ordinal data, aka “chunky data” (as Dr. Wheeler refers to it) AND you estimate the standard deviations from the within subgroup RANGE values.
