Crossover cable uses differ from those of regular Ethernet cables. While crossover cables do fall under the Ethernet cable category, these specialized cables are meant to directly connect two computing devices or two switches together. This connection is forged by crossing over (a.k.a. reversing) the pin contacts.
What is a crossover Ethernet cable used for?
Crossover cables These are used to connect two computers or similar devices directly together, such as computers or hubs. To create a crossover cable is to rearrange the wires on one end of a standard Ethernet cable, so that they are in the following order (starting at pin 1): 1.
Do I need crossover Ethernet cable?
A crossover cable is only required when interconnecting two devices with the same functionality. Another significant difference between crossover cables and standard patch cables is that each type will have different wire arrangement in the cable for serving different purposes.
Is Cat 6 a crossover cable?
Cat6 Shielded (STP) Ethernet Network Crossover Cable
Designed to connect two devices such as computers, game machines directly.
How do you tell if your Ethernet cable is a crossover?
One easy way to tell what you have is to look at the order of the colored wires inside the RJ45 connector. If the order of the wires is the same on both ends, then you have a straight through cable. If not, then it’s most likely a crossover cable or was wired wrong.
Can I use crossover cable for router?
Crossover cable connects with a router’s LAN port with switch/hub normal port. You should use straight-through cable when you want to connect two devices of different types. You should use a crossover cable when you want to connect two devices of the same type.
Do I need a crossover cable to connect two routers?
You won’t need a crossover cable unless you have either very old routers, or very expensive routers that only do routing.
Can 2 computers be connected with Ethernet cable?
Two computers can be connected to one another with an ethernet cable, but the only capability this provides is the sharing and transferring of files. To make this work, you have to configure settings on both devices, which takes a little time and some know-how.
Why are crossover cables important?
A crossover cable is a type of cable installation that is used for the interconnection of two similar devices. It is enabled by reversing the transmission and receiving pins at both ends, so that output from one computer becomes input to the other, and vice versa.
Is crossover still used?
Though not obsolete, crossover cables are no longer as common as they used to be, and in almost all cases, a standard Ethernet cable can be used for the same purpose.
Is CAT5e crossover?
Crossover cable such as Cat5, Cat5e crossover cable, etc. is a type of twisted pair cable used to connect two devices of the same type such as “DTE to DTE” or ”DCE to DCE” in the following situations: One computer to another computer.
What is the color code for crossover cable?

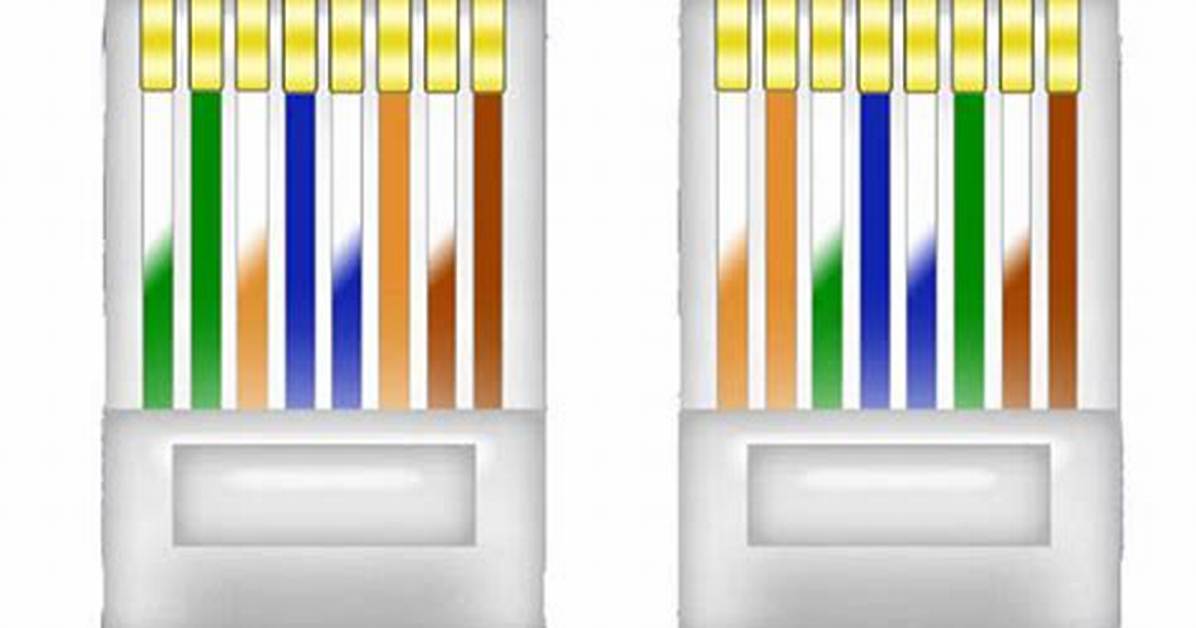

A crossover is used to connect two Ethernet devices without a hub or for connecting two hubs. A crossover has one end with the Orange set of wires switched with the Green set. Odd numbered pins are always striped, even numbered pins are always solid colored.
What is the difference of CAT5e and CAT6?
The main difference between CAT5e and CAT6 cable lies within the bandwidth, the cable can support for data transfer. CAT6 cables are designed for operating frequencies up to 250 MHz, compared to 100 Mhz for CAT5e. This means that a CAT6 cable can process more data at the same time.
Which cable is used to connect router to switch?
Normal Ethernet Cables
This type of cable is a “regular” or straight-through cable. You use this type of cable to connect a PC to a hub/switch or a router to a switch. You should also know that there are two standards for how the colors are arranged on this cable.
Why are Ethernet cables twisted?
The twisting is done to help cancel exterior electromagnetic interference. Crosstalk interference can come from other pairs within a cable. Each type of twisted pair cable has bandwidth and data rate specifications. Due to its thinner diameter, a twisted wire is often found in telephone or network cables.
