Nowadays, hex-head fasteners have replaced JIS screws in most applications, but you’ll still find them on vintage bikes and the occasional modern machine. If you’re tired of butchering screws, you can always pick up the correct tool from Motion Pro.
Is JIS same as Pozidriv?

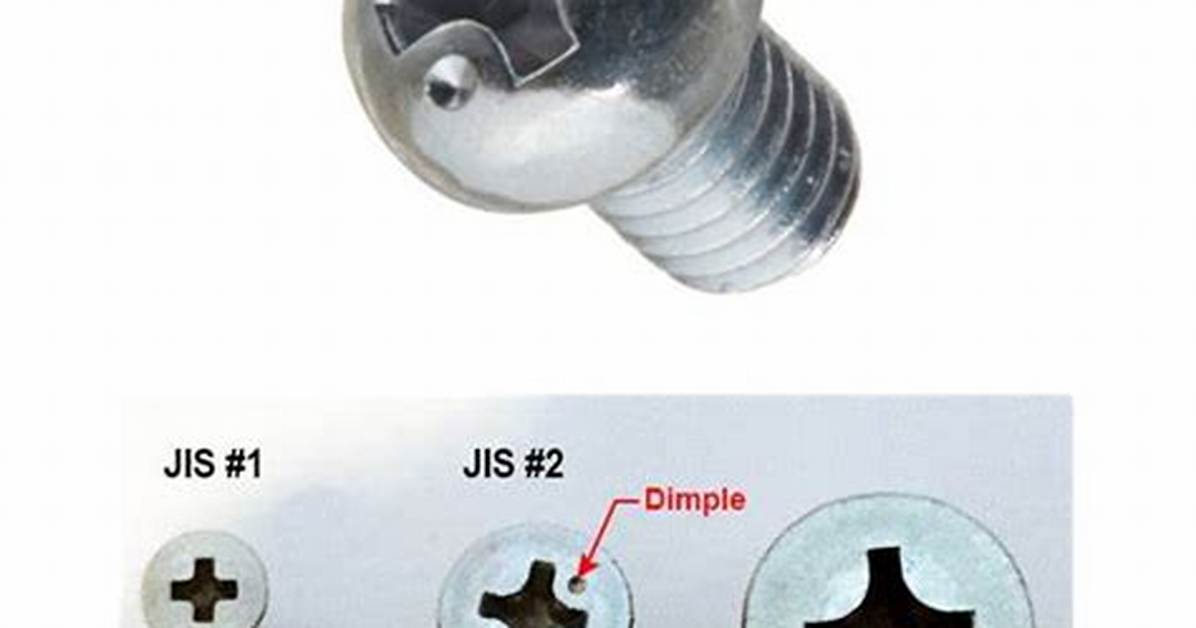

Japanese Industrial Standard has slightly different angles in each of the two axii of all four blades. Posidrive are easily identifiable by the four secondary hash marks between the flutes on the screw head. The JIS MAY, or MAY NOT have a single dot between two of the flutes.
Is JIS the same as Philips?
JIS, or Japanese Industry Standard screws are just different enough in shape that Phillips drivers will not fit well and slip/strip them. The difference is in the leading angle of the point of the driver. Phillips bits have a larger angle and therefore don’t bottom out in the JIS screws, causing slippage.
Does Toyota use JIS screws?
This makes sense as Toyota’s cross-head screwdrivers (rebadged Vessel Megadora) are JIS, but a lot of Toyota manuals and other documents indicate “phillips”.
When did Japan stop using JIS screws?
In chapter 3.2. I explained how JIS was discontinued as a standard in 2008, so now there is only ISO 8764.
Do Japanese cars use JIS screws?
It turns out that Japanese equipment uses screws that are built to the Japanese Industrial Standard (JIS) B 1012 specification. These screws look like a Phillips screw, but are designed not to cam out and will therefore be damaged by a Phillips screwdriver under high torque.
Does Yamaha use JIS?
Yes, Yamaha is still using JIS screws.
How are JIS screwdrivers sized?
JIS screwdrivers are available from sizes 000 to 0 (very small, precision-type screwdrivers for electronics) to 1 and 2 (more useful for motorcycles). Note that a JIS screwdriver will usually work on both a Phillips head and JIS screw, while a Phillips head will usually work only on a Phillips head screw.
Does snap on make JIS screwdriver?
In electronics, we use screwdrivers from companies like Xcelite and Paladin. Their tips are ground perfectly for both SAE and JIS screws. Tools like Snap-On and Craftsman don’t work very well on JIS screws.
Are vessel screwdrivers JIS?
After World War II, Vessel was the first and original (JIS) Japanese Industrial Standard certified manufacturer of screwdrivers in Japan. Since then they had been known as the first manufacturing company for these kinds of tools.
What does PZ mean for screws?
According to ISO standard, the two cross-head screwdriver types are designated as PH for Phillips and PZ for Pozidriv screws.
How can you tell the difference between Phillips and Pozidriv?
How to instantly identify a Phillips vs Pozidriv screw head. The easiest way to know whether a screw is Phillips or Pozidriv is that all Pozidriv screws have lines etched the screw head in-between the four arms of the cross. This visual aid means that you can instantly recognise a whether a screw is a Pozidriv or not.
What is the difference between PZ and TX screws?
The sure sign that a screw is Pozidriv is the four tick marks or indentations around the cross. Viewed from the side, the difference between Phillips and Pozidriv bits is unmistakable. A Pozidriv has ribs between each of the four arms of the cross. This increases the grip between the bit and the fastener.
Is there a metric Phillips screwdriver?
Wera Metric Phillips Screwdriver | MSCDirect.com.
