A further explanation of the light bulb base sizes, you can look at the letter-number references (E12, E17, and E26) to help understand a bulbs base style and size. The first letter designates the shape or form of the base, and the number represents the width of the base (normally in millimeters).
What is the standard bulb socket size?
Medium or Standard: E26 (26 mm in diameter) is the size of the majority of light bulbs used in the United States. Mogul: E39 (39 mm in diameter) is utilized for street lights and high-wattage lamps.
Are all light bulb sockets the same size?
The 3 most common sockets in the USA are the E12 (candelabra), E26 (medium) and the E39 (mogul). As this table shows, there are some sockets in between these sizes. For traditional lighting, those three are the most commonly used.
What are the different light bulb sizes?
They are often used as vanity and kitchen lights. Some of the popular Globe Bulbs Sizes are: G11 – 11/8 – 1-3/8”, G14 – 14/8 – 1-3/4”, G16 / G50 – 2” or 50mm, G60 – 60mm or 2-3/8”, G25 / G80 – 80mm or 3-1/8”, G30 – 30/8, 3-3/4”. Next three bulb groups are of Reflector Type.
Are E26 and E27 the same?
These two standards are interchangeable, meaning a US E26 will fit in a European E27 base, and E27 will fit in a E26 base. The only difference is the voltage (for light bulbs). In fact there is only 1 mm difference between the threads of E26 and E27, so they are virtually identical.
Can E27 fit E14?
If your chandelier has an E14 lamp holder, you should buy an E14 lamp. If your chandelier has an E27 lamp holder, you should prefer an E27 bulb. Although there are E14 to E27 or E27 to E14 converters, they are not preferred due to their rough appearance.
Is A19 and E26 the same?
All A19 lamps have an E26 base, but not the other way around
The standards that govern the dimensions and design of A19 light bulbs also dictate that it must use an E26 screw base. In other words, all A19 light bulbs also have an E26 base.
Are E12 and C7 the same?
C7 bulbs are smaller than C9s. They have an E12 candelabra base, the same size as a night light bulb. They are around 1 1/2 inches long and are generally 5 watts for incandescent bulbs. Although that wattage can vary, for most of our clients I use 4 watt C7 bulbs.
What is a e17 socket?
E-17 Base Intermediate Lamp Sockets. Edison bulbs with a diameter of 17mm, used for desk lamps and intermediate appliance bulbs.
What are the different types of light sockets?

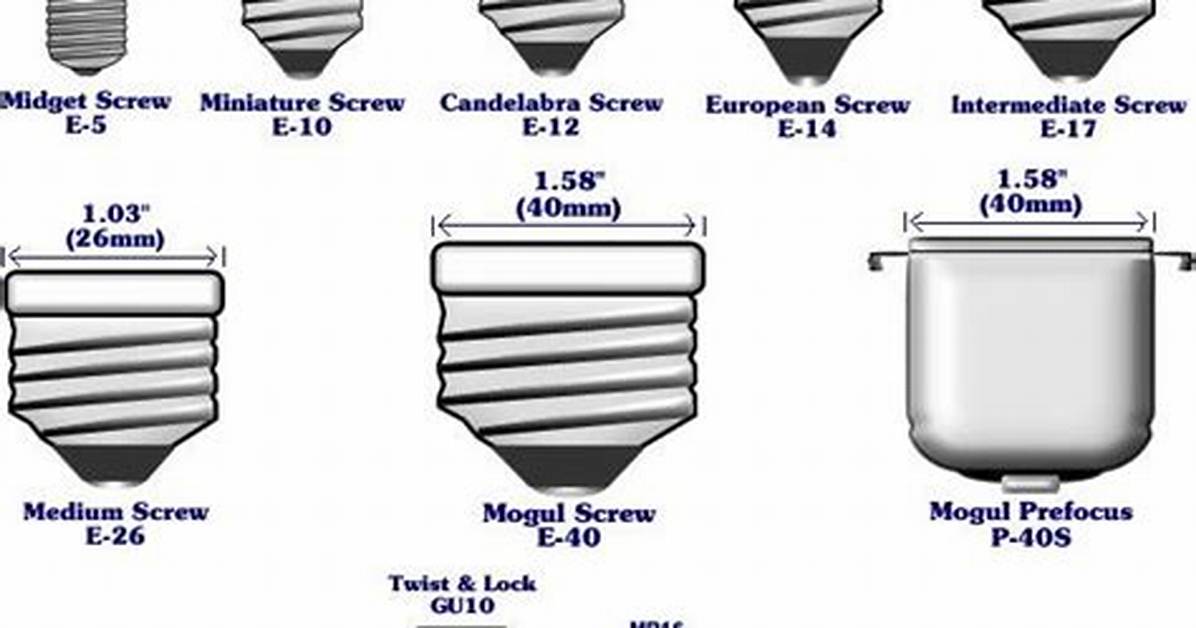

About Light Bulb Base Types
E39 – Mogul.E26 – Medium.E17 – Intermediate.E12 – Candelabra.E11 – Mini Candelabra.E10 – Miniature.E5 – Midget.
What is a E14 socket?
An E14 bulb is one of the most used bulbs in our homes today and is also called the bulb with the small screw socket. It is the little brother of the E27 bulb that we know as the old-fashioned light bulb. The bulb is called E14 because it refers to the socket: 14-millimeter diameter.
What is an E26 socket?
E26 is also commonly referred to as a Medium Edison Screw (MES). An E26 bulb, therefore, is any bulb or lamp that utilizes the E26 cap or base for mounting and electrical contact. You can most instantly recognize an E26 bulb by looking at the bottom, or non-light emitting side of the bulb.
Can I use A19 instead of E26?
According to the ANSI standards for bulb manufacturers in the US, A19 bulbs, in the US, must certainly have E26 bases.
Are light bulbs universal size?
Numbers in a bulb code indicate size in millimeters or eighths of an inch. These codes will tell you if a bulb will fit in your fixture and if it’s the right shape. For every light fixture or application, there’s going to be a specific bulb or light bulb shape that will fit best and provide the right type of light.
Is it safe to use E26 bulb in E27 socket?
In general, an E27 bulb can be used safely in the E26 socket. However, using an E26 bulb in an E27 socket can be dangerous. The reason for this is the E26 bulbs can only receive up to 120 volts and not 240 volts. There should be a greater distance between the neutral and live contact with higher voltages.
Will a G25 fit in E26?
Easy Installation. Standard G25 shape with E26 base, which can be easily fitted to replace regular G25 incandescent or CFL light bulbs.
What is the difference between E26 E27 and A19?
E27 (or E26 here in the USA) is the size of the socket screw base, also called a medium base. A19 is the sandard indoor light bulb shape. They also have a BR30 shape bulb that fits into the standard ceiling can fixtures and it has the E26 medium base as well.
