The NAND gate is a combination of an AND gate and NOT gate. They are connected in cascade form. It is also called Negated And gate. The NAND gate provides the false or low output only when their outputs is high or true.
What is truth table of NAND and NOR gate?

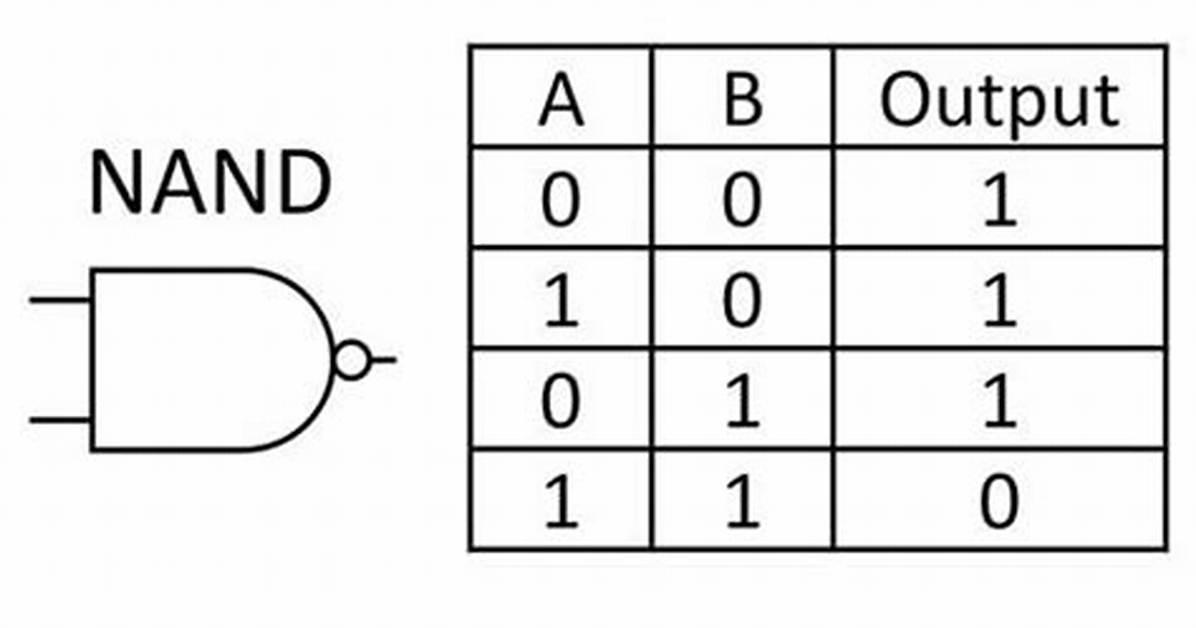

The truth table and the graphic symbol of NAND gate is shown in the figure. The truth table clearly shows that the NAND operation is the complement of the AND. NOR Gate: The NOR gate represents the complement of the OR operation.
What is NAND gate formula?
A NAND gate is made using transistors and junction diodes. By De Morgan’s laws, a two-input NAND gate’s logic may be expressed as AB=A+B, making a NAND gate equivalent to inverters followed by an OR gate.
What is a NAND?
NAND Flash is a type of non-volatile storage technology that does not require power to retain data. An everyday example would be a mobile phone, with the NAND Flash (or the memory chip as it’s sometimes called) being where data files such as photos, videos and music are stored on a microSD card.
What is the importance of NAND gate?
What are NAND gates used for? NAND gates help detect if a single input to a digital system has gone low. For example, a simple security system consisting only of NAND gates could be used to monitor the status of sensors connected to windows and/or doors.
Is there an XAND gate?
The XAND gate works synonymously as the XNOR gate, also called the equivalence gate. The logic gate receives two inputs, and produces an output based upon the architecture of the logic gate. Logic gates are widely applicable, and commonly found in modern electronics.
What does Demorgan theorem state?
De Morgan’s Theorem, T12, is a particularly powerful tool in digital design. The theorem explains that the complement of the product of all the terms is equal to the sum of the complement of each term.
How do you read truth tables in logic?
Truth tables are always read left to right, with a primitive premise at the first column. In the example above, our primitive premise (P) is in the first column; while the resultant premise (~P), post-negation, makes up column two.
What is the symbol for NAND?
NAND = Not AND.
This is an AND gate with the output inverted, as shown by the ‘o’ on the symbol output. A NAND gate can have two or more inputs, its output is true if NOT all inputs are true. The output Q is true if input A AND input B are NOT both true: Q = NOT (A AND B)
Why is it called NAND?
It’s called NAND because at the circuit level, it’s similar to the NAND logic function. Another type of flash is NOR flash (Fig.
Is SSD a NAND?
A major reason why SSDs are so popular is NAND technology SSD. NAND is an alternative to DRAM, which was previously used in SSDs. NAND is more affordable and doesn’t require a continuous supply of power like DRAM.
How do NAND chips store data?
NAND flash saves data as blocks and relies on electric circuits to store data. When power is detached from NAND flash memory, a metal-oxide semiconductor will provide an extra charge to the memory cell, keeping the data. The metal-oxide semiconductor typically used is a floating-gate transistor (FGT).
