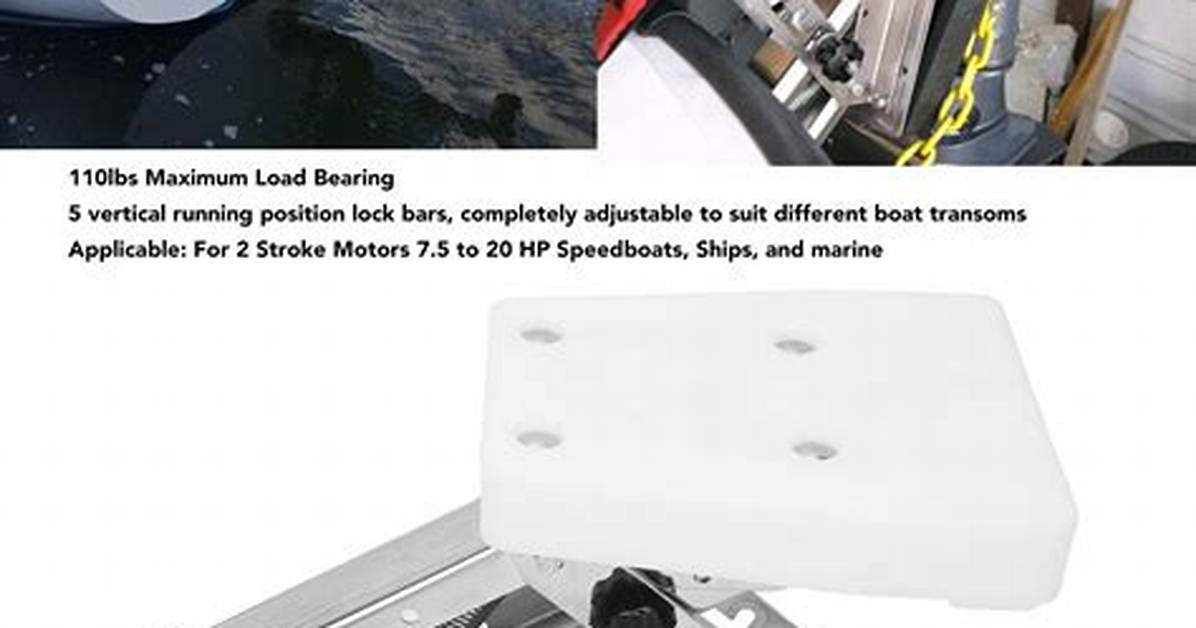

Brackets, or engine brackets, are a piece of fiberglass or aluminium which is mounted to the transom of a boat. They are generally closed and sealed to prevent water from entering. They also will provide some level of buoyancy depending on their build.
What is the purpose of an offshore bracket?
Offshore brackets came about primarily to allow a full-height transom and secondarily to increase the room in the boat. The problem with them was that when 4-strokes replaced 2-strokes the back end of the boat started sitting too low. Also, the quality of the water flowing to the prop varied greatly depending on speed.
Do I need a transom bracket?
the correct answer is,yes,you need a transom saver. even though boats are designed to flex and move in the water,they are not designed to be rigidly mounted to a trailer with a motor bouncing on the back that is flexing and stressing the transom with every bounce.
What does outboard setback do?
A setback bracket in simple language “pushes” the outboard motor further away from the transom. The benefit of the setback is that it adds weight to the rear of a boat (and increases the overall length) which can help raise the bow.
Why put a jack plate on a boat?
Installing a jack plate on your boat for the outboard can allow your boat to go faster. A jack plate will lift your engine up in the water and bring your propeller closer to the surface of the water. As a greater part of your engine is now out of the water. There will be less drag force on the boat.
What is a transom brace?
Its name would imply that the transom saver is a device designed to protect your boat’s transom from undue stress while trailering your boat.
What is a transom jack plate?
Jack plates perform two key functions. One is setback, which distances an outboard from the boat’s transom, allowing the propeller to run in less-turbulent water. Jack plates also move an outboard up and down to optimize performance and enable a boat to venture into shallower water than it might otherwise.
How do you turn an inboard boat into an outboard?
How to Convert a Boat From Inboard to Outboard
Turn off the fuel valve and disconnect the battery negative cable. Install the engine hoist and pick up with it just enough to keep the slack out of the chains. Install the motor bracket to the transom. Lift the bracket back into position and install the bracket bolts.
What is an offshore transom?
The vertical section at the rear of the boat is known as the transom. In most modern saltwater fiberglass boats, the transom can house single or multiple outboard motors.
How much does an Armstrong bracket weigh?
Two Yamaha F150s weigh about 950 pounds, and the Armstrong bracket for them weighs 230 pounds for a total of 1,180 pounds. The AYM bracket was shown this fall at the International BoatBuilders’ Exhibition & Conference, a marine industry trade show held in Louisville, Ky.
What is the correct height to mount an outboard motor?
Industry standards dictate that for short shaft engines the transom height should be 15″. A long shaft engine requires a height of 20″ and extra-long shaft engines will need a transom height of 25″.
Should you travel with your outboard up or down?
Generally, you should tow your boat with the motor down, especially if your trailer offers good ground clearance. Additionally, most manufacturers recommend that you should pull your boat down. However, you can choose to tow with the motor up if you desire ground clearance.
Can I pull my boat without a transom saver?
If you can trim your engine all the way down when towing, you very well might not need a transom saver or motor support. However, if the lower unit of your outboard engine is too close to the ground when trimmed down, your engine is at high risk of damage during trailering.
Does the outboard need to rest on transom?
The motor needs to go where its in the corect location regardless of transom height. There is nothing wrong with the motor not resting on the transom. The bolts and the outboard bracket will take care of all the support it needs.
