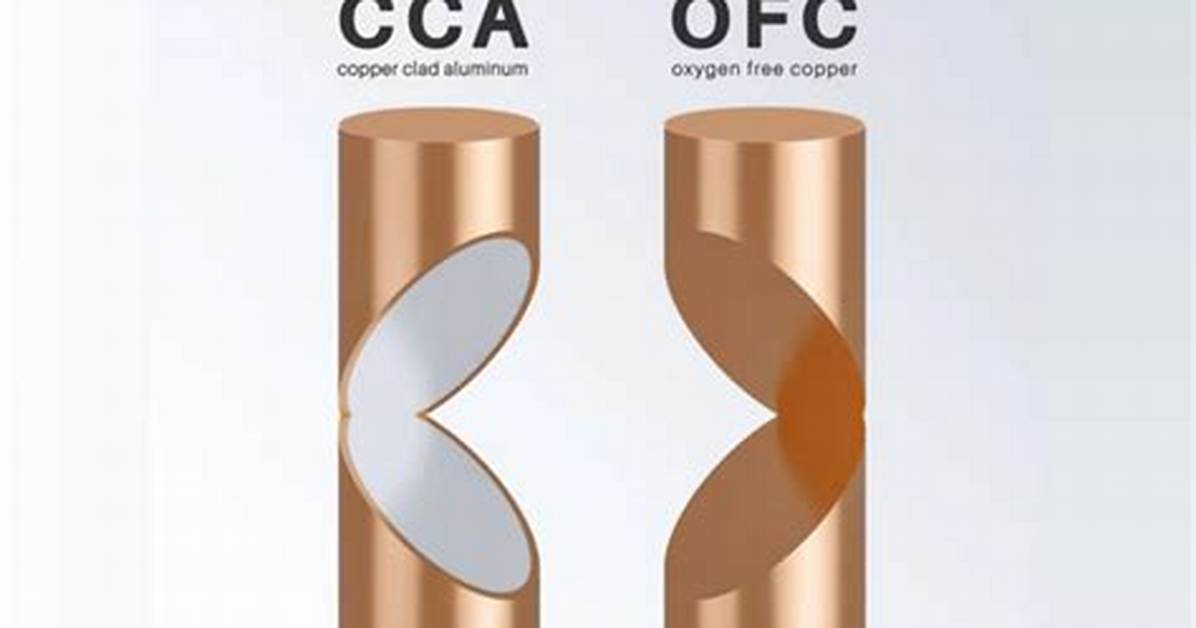

According to Peri, a more effective method for identifying CCA is to snip off a piece of the cable to expose the conductor, then scrape it with a knife to remove the top layer of copper. If there’s a silver color beneath, that indicates the presence of aluminum.
Is OFC speaker wire worth it?
There are different standards of “OFC”. In any case, OFC or regular copper wire are both a lot better than copper-clad or pure aluminum. It’s often recommended to buy a gauge larger if you’re going with CCA over OFC, but you should just go with OFC wire instead.
Is CCA as good as copper?
CCA cable has much higher electrical resistance than pure copper.
Is CCA wire OK for speakers?
And even those have at most a few percent increase in conductivity, meaningless for audio applications. Avoid the copper clad aluminum (CCA) stuff though. It has significantly higher resistance than pure copper, and is quite brittle. Total junk, especially if you’re driving high end speakers with a big amp.
How do you calculate OFC from CCA?
There are a few tips for identifying CCA cables that include scraping the conductor to reveal the silver colored aluminum beneath the copper cladding and even weighing the box since aluminum is lighter than copper.
Is pure copper the same as OFC?
The oxygen content for OFC is typically in the range of 40 parts per million (PPM), while normal grade copper is approximately 235 PPM, about six times less. The result is that OFC has approximately 400 grains or crystals per foot, as opposed to 1500, or about four times less.
What is CCA cable and why should it be avoided?
Poor flexibility and bend radius: CCA conductors are brittle and break easily; it has been noted that even moving a patch panel or a faceplate can cause failures. Due to low tensile strength, CCA wires may also break off as a result of pulling or shearing, which can occur in packaging or during delivery.
Is 14 or 18 gauge speaker wire better?
The lower the gauge number, the thicker the wire. Thicker wire presents less resistance to current flow. Relative thickness of wire gauges, drawn to scale (not actual size). Thick wire (12 or 14 gauge) is recommended for long wire runs, high power applications, and low-impedance speakers (4 or 6 ohms).
Does CCA wire corrode?
Another thing to keep in mind is that CCA has a tendency to corrode MUCH quicker than OFC. In fact, I’ve seen some of my CCA wire that I used for other projects (not the wire in this particular kit) corrode in less than a year.
What is OFC power cable?
The term OFC (oxygen-free copper) has become abused and is used synonymously with solid or all-copper conductors. In actuality, OFC is a type of solid copper. When molten copper is cast and drawn into a conductor, the process to make an OFC conductor reduces the oxygen content of the wire.
Is oxygen free speaker wire better?
According to tests, oxygen-free copper also runs cooler than other conductors. It’s more resistant to shorts, more durable and long-lasting, and is far less likely to corrode, due to the reduced oxygen content—at least, that’s the common wisdom.
Do banana plugs affect sound quality?
Banana plugs do not affect the sound directly, but there are several reasons that they do preserve and improve sound quality in the long term. The most common reason is that the banana plugs prevent the wires from being exposed, which reduces the risk of wear and tear, preventing loss of sound quality.
Is welding cable OFC?
Welding cable is usually OFC. otherwise, unless the welding wire is listed as not being copper, then it totally depends on what you are wanting to do. generally car audio power wire is more flexible then welding cable due to the jacket.
What happens if speaker wire is too thin?
The only problem with using too-thin wire is that if you put enough current through it that it melts, then your amp won’t be too happy. The amplifier will be quite happy if the wires melt and fuse, leaving an open circuit with no load.
How many amps can 4 gauge CCA handle?
4-AWG OFC was giving you a max of 139 amps, so that means CCA would give you about 90 amps max.
What is CCA wire used for?
These applications include high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables. CCA was also used in electrical wiring for buildings.
