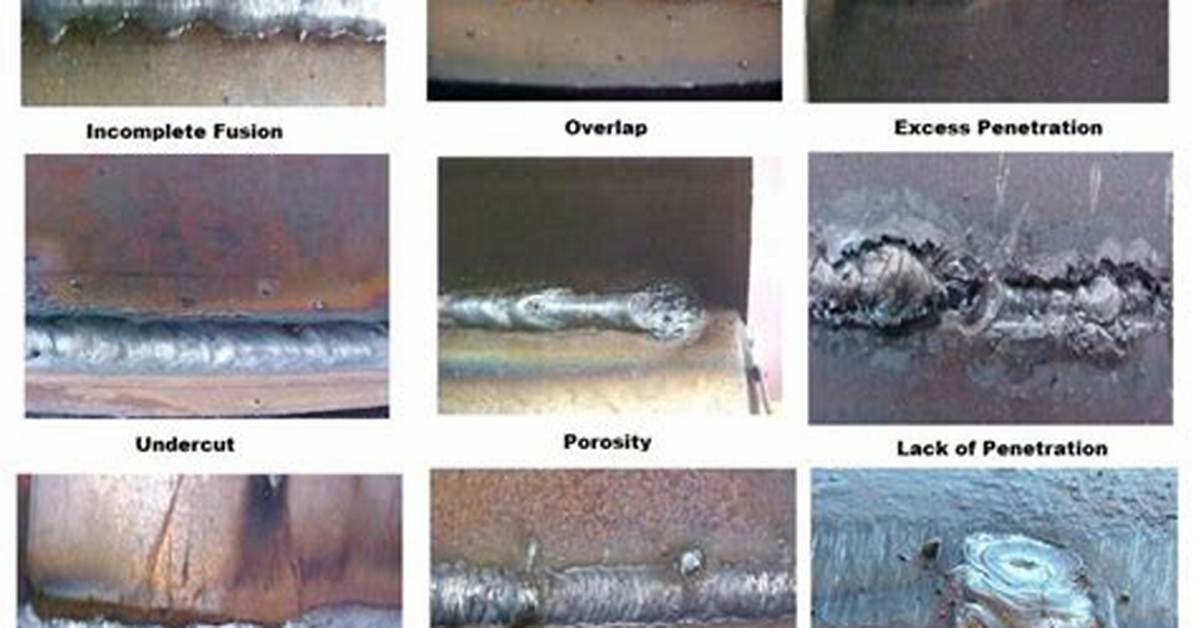

Signs of a bad weld include: Underside of weld has insufficient penetration, excessive globules of metal, over-sized weld, undersized welds, undercut, overlap, incomplete fusion, porosity and/or cracking. Excessive grain growth or the presence of hard spots cannot be determined visually.
What is the bad weld or good weld?
So, find out the difference between a good weld vs bad weld might be a bit tougher. What is this? Signs of a good oxyacetylene weld include a uniform bead with no holes or globules of melted metal. A poor-quality oxy weld will have holes and lack uniformity.
Can you weld over a bad weld?
yes you can weld over an existing weld but lots of factors come in play if you want it to be successful.
What are 5 welding defects?
What are common weld defects?
Lack Of Penetration or Incomplete Penetration.Lack Of Fusion or Incomplete Fusion.Undercut.Spatter.Slag Inclusions.Cracks.Porosity.Overlap.
Why do welds fail?
A weld that is too small or too short for the application can fail from tension, compression, bending or torsional loads. If a weld is made to be in an application where a cyclical load is going to be applied, it will be beneficial to consider a filler metal option with increased impact toughness and ductility.
How do we avoid bad welds?
You’ll need to remove the impurities in your metal and preheat it as required. Additionally, use the proper joint design for the material and properly cool the welded area. Be sure to weld enough sectional areas, too. Use the right amperage current and welding speed.
What is a good weld?
Characteristics of a Good Weld
The sign of a quality and secure weld is that you will not see the weld at all. If there is any visible evidence of a weld, it will be in the form of a bead that has no holes or cracks and is uniform overall. A high-quality weld is made using high-quality materials.
Why do my welds look bad?
Wire feed speed/amperage too high – Setting the wire feed speed or amperage too high (depending on what type of machine you’re using) can cause poor arc starts and lead to an excessively wide weld bead, burn-through and distortion.
Is it bad to weld at night?
The biggest trouble you should have while welding at night is tripping over something you don’t see in the dark or not being able to see what you’re working on if the lighting is poor, both of which some care or precautions will take care of.
Does grinding a weld weaken it?
I’ve been discussing with a friend of mine whether or not it’s ever OK to grind your welds. I understand that grinding down a weld reduces it’s strength, and therefore a structural weld should never be ground down.
How can you tell if a weld is penetrated?
Place one of your practice pieces in a vice, grab a hammer and see if you can manage to break the weld. If it breaks with little effort then you know you have a cold weld, with little penetration. If you have a band saw you could also do a cross cut in the work piece to see how well your weld penetrated.
How many times can a weld be re welded?
For the Cr-Mo steels, up to two re-welds may be carried out, but consideration needs to be given to the post-weld heat treatment operations and possible resultant degradation of the welded joint.
What are the 7 common welding defects?
How to Identify the 7 Most Dangerous Welding Defects
Types of Welding Defects.Slag Inclusions.Porosity.Undercut.Weld Crack.Incomplete Fusion.Incomplete Penetration.Spatter.
What are the 3 most common defects in welding?
Among the commonly known welding defects, incomplete penetration and fusion, porosity and slag inclusions are the most common to affect welding strength.
What are the 12 most common discontinuities in welding?
Weld discontinuities can be defined as “an interruption of the typical structure of a weld, such as a lack of homogeneity in the mechanical, metallurgical or physical characteristics of the weld.” Weld discontinuities include porosity, slag inclusions, incomplete fusion, incomplete joint penetration, excessive melt-
