Widths can be 2 feet, 3 feet, 4 feet, 5 feet, 6 feet, and 8 feet. Standard heights can range from 2 feet tall to 8 feet tall, with additional heights of 18, 52, 54, and 62 inches. Rough openings are in whole numbers, while 1/2 inch is taken from each rough opening size to get the actual window size.
What is the average width of a single window?
Common and standard sliding window widths are:
36-inches. 48-inches. 60-inches. 72-inches.
What are the most common window sizes?

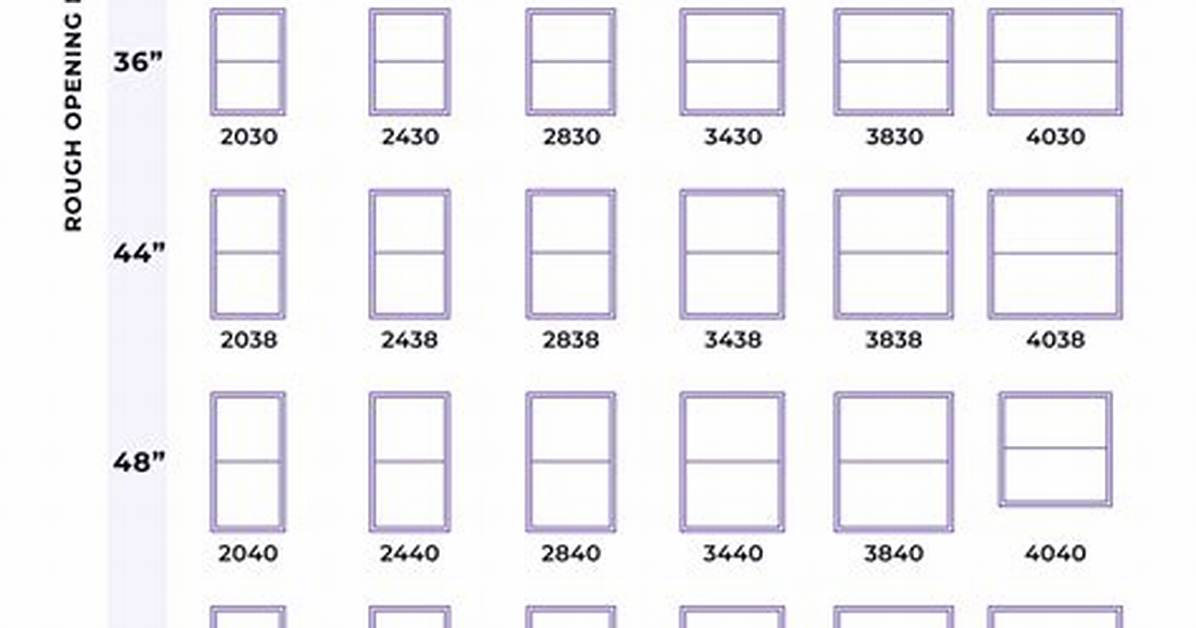

Some common dimensional combinations for double-hung and single-hung windows:
2 feet wide by 3 feet high (2030)2 feet wide by 4 feet, 4 inches high (2044)2 feet, 8 inches wide by 4 feet high (2840)2 feet, 8 inches wide by 5 feet, 2 inches high (2852)4 feet wide by 6 feet high (4060)
Do you measure a window from inside or outside?
Run a tape measure from the outside of the frame to the inside and take the measurement from edge to edge of the window frame. Do this in several locations around the window frame and rely on the smallest measurement once again as your final dimension.
How do you read window sizes?
A window’s size notation is basically width and height combined. The first two #’s are for width and the second two #’s are for height. A 2426 replacement window would have a width of 2’4″ and a height of 2’6″.
Are replacement windows smaller than original?
Before inserting the new window, the existing sashes and jamb liners are removed to make room for the new window unit. A new window unit will then be placed into the existing frame of the opening. This effectively means the overall glass surface area of the new window unit will be slightly smaller than the original.
What size is a standard size window?
The most common window size or average window size is 24×36. All common window sizes & dimensions for fixed, standard & double-hung windows can differ on manufacture.
What is a single hung window?
A single-hung window, also known as a single-sash window, is a type of window with a lower, operable sash and an upper, fixed sash. This means that the bottom part of the window slides up and down, while the top part remains stationary.
What is a normal bedroom window size?
The most common window size or average bedroom window size is 24×36.
Are 30 inch windows standard?
Most single and double-hung windows in homes range in width from 24 to 30 inches and in height from 48 to 56 inches. Most building codes have minimum window requirements for habitable rooms: 20-inch width.
What is standard size?
Standard size means 8.5” x 11”; 8.5” x 14”; and 11” x 17”.
What is the standard window height from floor?
A window usually begins at about 36 inches above your home’s floor. The window itself will then range from 40 to 60 inches tall. The space between the top of the window and the ceiling is usually 18 inches. This is all assuming that you have an average-sized home with standard rooms and ceilings.
What is the difference between rough opening and window size?
Recommended rough opening is between 3/4″ (19mm) – 1″ (25mm) larger than the window width and height.
What does a 3060 window mean?
The numbers represent a window that is 3-feet 0-inches wide by 5-foot 0-inches tall. The first digit is in feet and the second digit is the inches that a window is wide. The third digit is in feet and the fourth digit is the inches that the window is tall.
