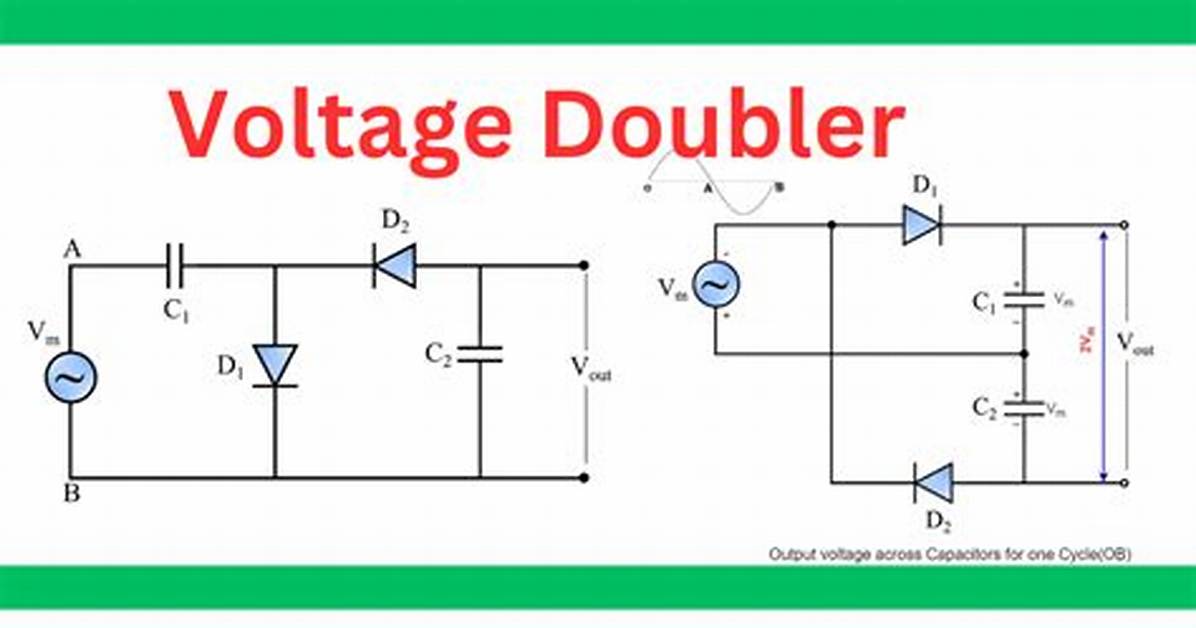

What is a Voltage Doubler? A voltage doubler is an electronic circuit that produces an output voltage that is double the input voltage. It is a voltage multiplier with a voltage multiplication factor equal to 2. The circuit is formed by an oscillating AC input voltage, two capacitors, and two diodes.
What is the disadvantage of a full wave voltage doubler?
Disadvantage of Full Wave Voltage Doubler over Half Wave Voltage Doubler. The only drawback of full wave voltage doubler is that it does not provide common point between input lines and output lines for earthing. While in case of half wave voltage doubler there is a common point between input and output lines.
How do you increase voltage in a circuit?
To increase the voltage, we connect the AC voltages in series to get a higher output voltage. If the frequency of all the voltages are the same, the magnitude of the voltages simply add. The voltages will just add, so the total voltage will be 28Vac at 60Hz.
Can capacitor increase voltage?
Capacitors are used to store charges and capacitors alone cannot increase the voltage. Capacitors are connected along with diodes to form the voltage multiplier circuit. Capacitors can be used in many circuits where the output voltage has to be more than the input voltage.
How can DC current be increased?
So to increase current of the circuit what you can do is :
Use conductor of low resistivity, ¶.Use conductor of small length.Use thick wire.Decrease the temperature of the circuit.If operating temprature is high than use semiconductor, because it have negative temprature coefficient.Minimise the circuit losses. …
Why use a diode in a DC circuit?
Why are diodes used in circuit protection? Diodes are used in circuit protection due to their ability to restrict electrical current to flow in only one direction. This trait is useful because some electrical components and devices will be damaged or malfunction if current flows in the wrong direction.
What is the difference between half wave and full wave voltage doubler?
Half wave rectifier conducts current only during positive half cycle of the input whereas full wave rectifier conducts both positive as well as negative half cycle of the input.
How does a capacitor increase AC voltage?
Increase the total working voltage of two capacitors by connecting them in series. For example, two capacitors C1 and C2 with working voltages 5 volts and 10 volts have a total working voltage of Vt = 5V + 10V = 15V. However, the total capacitance is less than the value of the smallest capacitor.
What is the difference between full wave rectifier and full wave voltage doubler?
The purpose for each is different. The first one gives you maximum power efficiency from the secondary at the expense of reducing peak output voltage by an extra diode drop. The second could be used to double the peak DC voltage or be used for a bipolar power supply without having a center tap on the secondary.
How can you increase voltage without changing current?
In order to change the voltage without changing the current, you must change the resistance a porportional amount. If the load resistance varies, you can use a constant current source to maintain the current level, as hgmjr implied.
Does adding more batteries increase voltage?
Connecting batteries in series increases voltage, but does not increase overall amp-hour capacity. All batteries in a series bank must have the same amp-hour rating. Connecting batteries in parallel increases total current capacity by decreasing total resistance, and it also increases overall amp-hour capacity.
How do inverters increase voltage?
AC power works well at high voltages, and can be “stepped up” in voltage by a transformer more easily than direct current can. An inverter increases the DC voltage, and then changes it to alternating current before sending it out to power a device.
Why capacitor is used in boost converter?
The capacitor in the boost converter is for filtering purpose (The voltage across capacitor could not change suddenly). The inductor is where the “Boosted Energy” comes from. During switch ON stage, the source will charge the inductor.
