How much rip rap do I need?

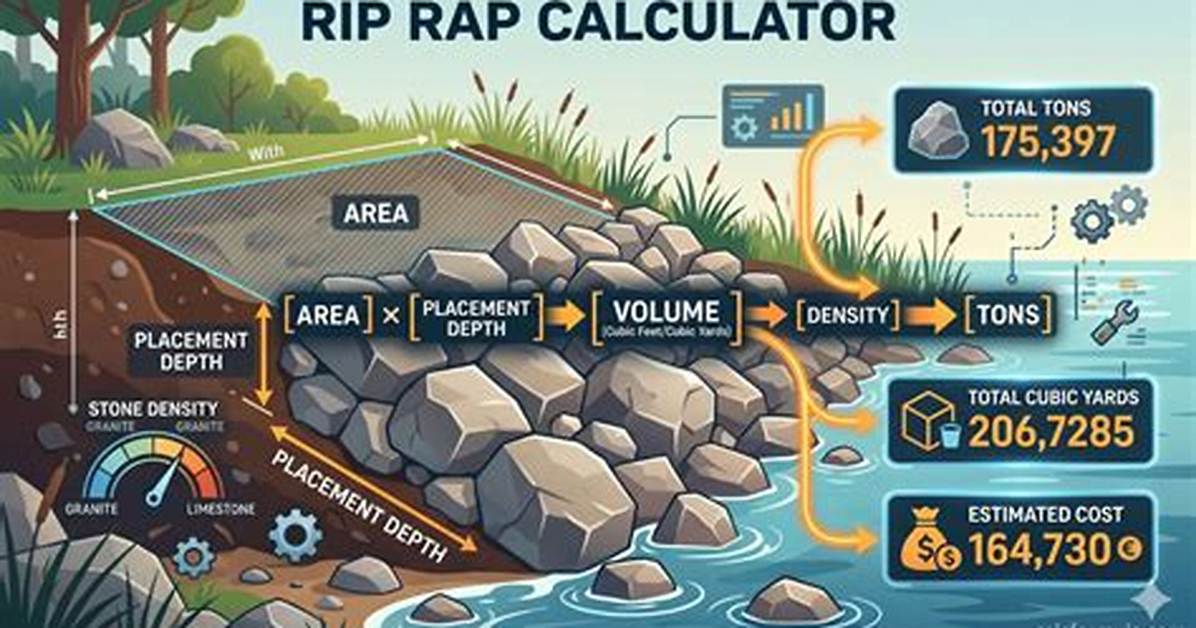

Determine the area and thickness of the riprap you want to build. Thicker ripraps need more layers of rocks.Multiply the area by the thickness of your riprap to find its total volume.Multiply this volume by your desired rock’s density.
How much will a ton of rip rap cover?
Rip rap can vary in size from about the size of a softball to as large as approximately 10″ to 12″ in diameter. The average is usually from about 3″ to 8″ in size. One ton of rip rap will usually cover an area of 35 to 40 linear feet, spread 3′ wide.
How many yards is a ton of riprap?
Rock riprap weighs 1.2 to 1.7 tons per cubic yard.
How much is a yard of rip rap?
In general, the average installed cost of riprap is from $30 to $65 per square yard, and sometimes much more, depending on rock size, transportation costs from the stone quarry, and other project specifics.
What are the sizes of rip rap?
Rip rap can range in size anywhere from 4 inches to over 2 feet.
Size 4″-5″ Rip Rap. 4″-5″ is the smallest size that rip rap is available in. Size 6″-9″ Rip Rap. Being the most popular size of rock, rip rap between 6″-9″ is excellent for a variety of projects. Size 9″-9″ Rip Rap.
How deep should rip rap be?
The riprap layer should be at least twice as thick as the average rock diameter. Ensure that the riprap extends up the slope no more than two feet above the normal high water line.
How much does rip rap cost per foot?
In many cases, if you are using the best solution rip rap rock revetment contracting can cost more than $2,200 per linear foot.
How much river rock do I need?
(Length x width x depth) / 27
This final number is how many cubic yards of material you will need.
How do you convert cubic yards to tons?
To convert Cubic Yards to Tons*: Cubic Yards x 1.4 = Tons.
How do I convert square yards to cubic yards?
Square yards and cubic yards are units for quite different things, and you can’t convert from one to the other. A square yard is a a unit of area and a cubic yard is a unit of volume. 3 = 12 square yards.
What size is Class 2 rip rap?
Rip-Rap is the largest stone size available and is most commonly used for erosion control and controlling water flow. Following are the most used sizes: Class I – 50 lbs to 150 lbs. or 12”- 18” Class II – 150 lbs to 500 lbs. or 18” – 26”
What is riprap gradation?
Gradation is the size distribution of a particular riprap or aggregate. Material that is well graded has a uniform distribution of sizes, within a given minimum and maximum range. Void spaces between the larger rock are filled with the smaller material.
How much does a cubic yard of shot rock weigh?
Generally, there are 1.5 tons of stone or rock or gravel in a cubic yard. For billing purpose a yard of rock weighs 3000 pounds and 1 ton of rock weighs 2000 pounds.
How much does a truck load of rip rap cost?
Riprap is often sold by the ton at a cost of $35 to $250 per ton. Expect to pay $35 to $100 per ton for small riprap (6 inches to 2 feet). Large ones (2 feet or more) cost $50 to $250 per ton.
What do you put under Rip rap?
Riprap should always be underlain by a filter material consisting of granular material or a nonwoven geotextile fabric to prevent underlying soil from piping through the riprap stone. The bedding or geotextile fabric must be sized properly in order to prevent erosion or undermining of the underlying soils.
What are the disadvantages of rip rap?
Disadvantages/Problems
Riprap is more expensive than vegetated slopes. There can be increased scour at the toe and ends of the riprap. Riprap does not provide the habitat enhancement that vegetative practices do.
